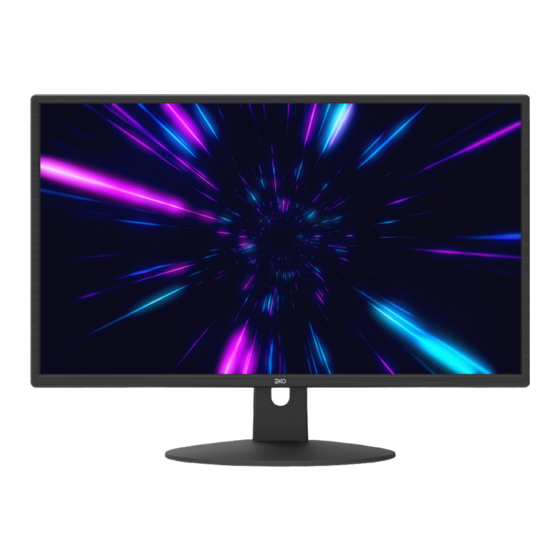

- Page 1 INSTRUCTION MANUAL 24” 75Hz FULL HD MONITOR K24FM Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Installation Attaching the Stand Wall or Arm Mounting Instructions Controls and Connections Operation Brightness Image Color Temp. Language Reset MISC. Specifications Customer Helpline Last Page... -
Page 4: General Safety
GENERAL SAFETY Read this manual thoroughly before you start using the Monitor. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 GENERAL SAFETY (CONT.) IMPORTANT INFORMATION • Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard • Do not tamper or change or modify the product in any way. • Only use Accessories outlined and recommended by the manufacturer. •...
- Page 6 GENERAL SAFETY (CONT.) • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire. • The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
- Page 7 GENERAL SAFETY (CONT.) Please make sure upon positioning this product, the place is: • Not wet or damp and Well ventilated • Away from direct sunlight or heaters. • Away from splashes or food. • Protected from excessive dust or grease. •...
-
Page 8: Installation
INSTALLATION Install the stand as described below, or if you want to mount it to a wall, please contact a professional installer. Please ensure the monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. Attaching the stand Step 1 Insert the neck stand into the base with... -
Page 9: Wall Or Arm Mounting Instructions
INSTALLATION (CONT.) Wall OR Monitor Arm Mounting Instructions Please ensure the Monitor is not plugged into the wall socket and furthermore we recommend to get another person to assist in the following task. • We recommend you use a professional installer as we assume no liability for any eventual damage to the product or injury to yourself if you mount the Monitor on your own. -
Page 10: Controls And Connections
CONTROLS AND CONNECTIONS M - MENU / SELECT UP / VOLUME + DOWN / BRIGHTNESS E - EXIT / AUTO FUNCTION When you encounter blurry screen, blurred letters or screen flicker while using device, Press AUTO button to improve resolution STANDBY POWER OFF/ON... - Page 11 CONTROLS AND CONNECTIONS HDMI 1 HDMI 2 D-SUB (VGA) AUDIO IN (HEADPHONES) AUDIO OUT (EXTERNAL SPEAKERS) DC IN (POWER)
- Page 12 OPERATION LUMINENCE Press MENU button, and the main menu page will appear as follows: (BRIGHTNESS MENU), and then press MENU button to enter.
-
Page 13: Image
OPERATION (CONT.) IMAGE Press button to select IMAGE, and then press MENU button to confirm your selection. This item can adjust the configuration automatically. - Page 14 OPERATION (CONT.) COLOUR TEMP. Press button to select Color in the main menu, and then press MENU button to enter.
- Page 15 OPERATION (CONT.) Press button to select Color in the main menu, and then press MENU button to enter.
- Page 16 OPERATION (CONT.) RESET Press button to selec reset in the main menu, and then press MENU button to enter.
-
Page 17: Reset
OPERATION (CONT.) RESET Press button to selec reset in the main menu, and then press MENU button to enter. -
Page 18: Specifications

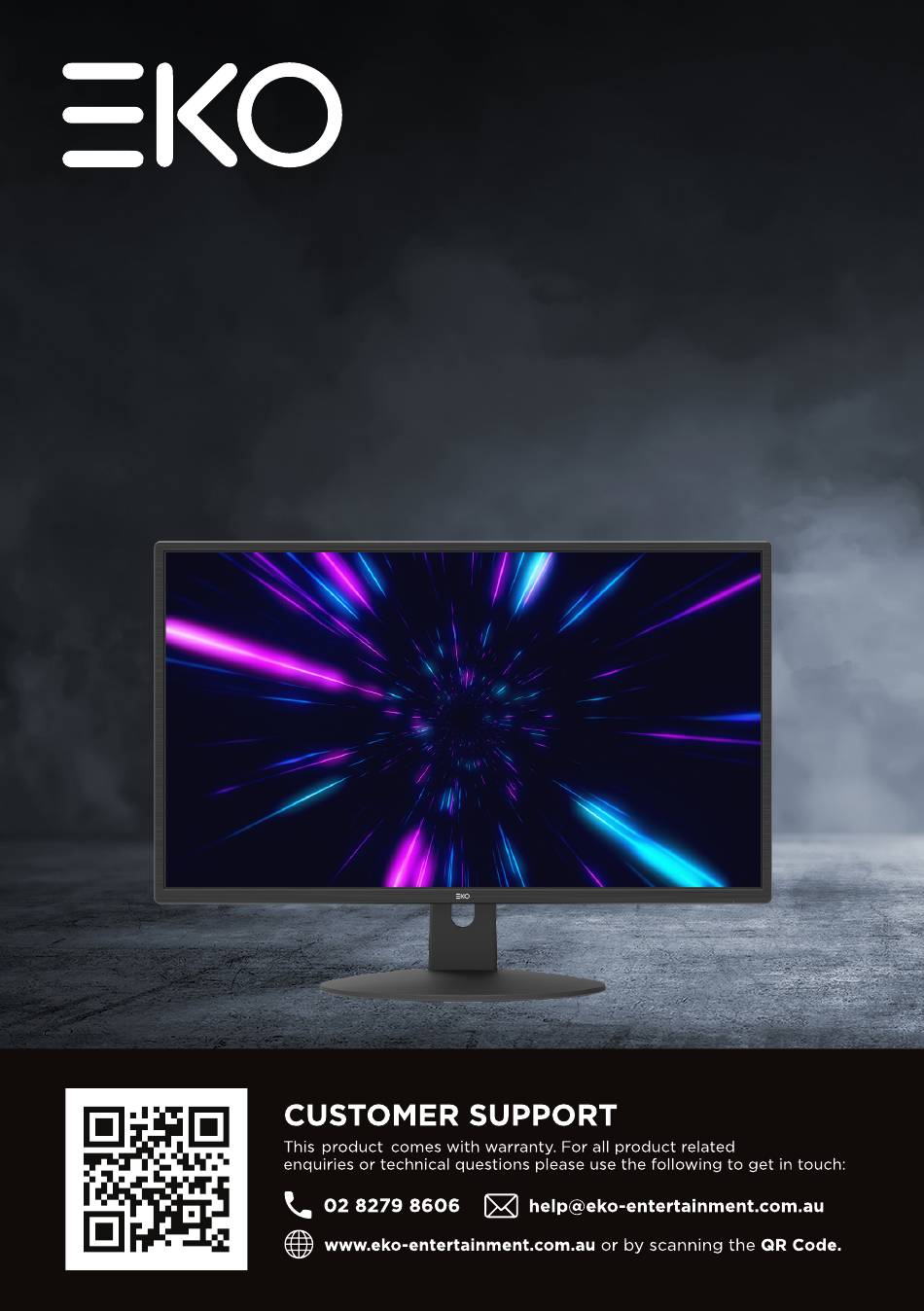

SPECIFICATIONS Resolution 1920 x 1080 Display Colours 16.7 Million Contrast ratio: 4000 : 1 Brightness 250 cd/m2 Refresh Rate 75Hz Power Source DC 12V 2.5A Power Consumption With stand: 548.4 (w) × 178.4 (d) × 402.1 (h) mm Dimensions Without stand: 548.4 (w) × 32.5 (d) × 322.9 (h) mm 1 x Instruction Manual Monitor Stand with screws Accessories... - Page 20 CUSTOMER SUPPORT: help@eko-entertainment.com.au DISTRIBUTED BY: Ayonz Pty Ltd...
