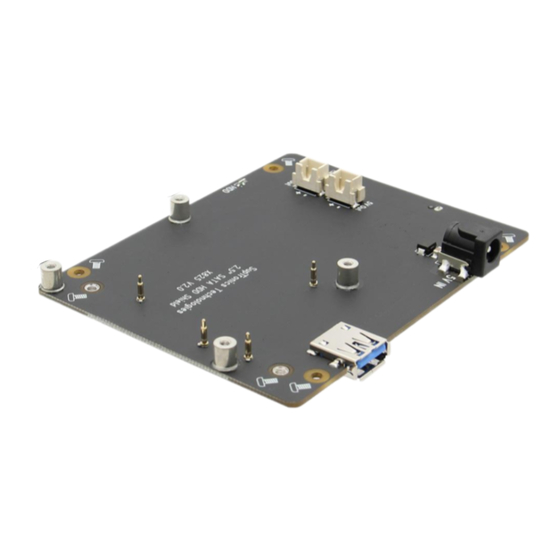

- Page 1 Geekworm X825 V2.0 User Manual History: Date Description Author 2021-04-29 Create document Cindy https://geekworm.com Support: support@geekworm.com - 1 -...
- Page 2 1. Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD) (Theoretically it can work with 6TB or 8TB as well. But actually we do not test the X825 board with 6tb or 8tb HDD, you can have a try.)
- Page 3 Interface Schematic https://geekworm.com Support: support@geekworm.com - 3 -...
- Page 4 X825 V2.0 Packing List 1 x X825 V2.0 shield 1 x USB 3.1 jumper/connector 2 x M3x6 Screws (to fixed 2.5” SSD/HDD) 8 x M2.5x6 Screws 4 x Spacer F/F M2.5x14 https://geekworm.com Support: support@geekworm.com - 4 -...
-
Page 5: About Power
About Power 1. You can power the device via DC JACK of X825 V2.0 or TYPE C of Raspberry pi 4 if you don’t use the X735. 2. Remove the 4-Pin external switch connector in V2.0, please use the X735 to get the safe software shutdown &... - Page 6 Only power the DC Jack of X825 V2.0; Only power the Type-C port of Raspberry pi 4; When use the X825 V2.0 with Raspberry Pi 4 only, you can power ①Via DC Jack of X825 V2.0②Via Type-C port of Raspberry Pi 4.
- Page 7 B: Raspberry Pi 4+ X825 V2.0+ X735 When use the X825 V2.0 with X735 and Raspberry Pi 4, you power via DC jack or Type-C or Micro USB of X735 board. Recommend power via DC jack or Type-C. This kit use the X735 for safe shutdown and cooling function, and X735 V2.5 use the PMW cooling fan controlled by script, and also support use external power switch.
- Page 8 Support: support@geekworm.com - 8 -...
-
Page 9: Installation Video
Installation Video https://youtu.be/JxUNhIxXgj4 https://geekworm.com Support: support@geekworm.com - 9 -... - Page 10 Q3: Do I need an external power source supplying for X825 board? 1. When use the X825 V2.0 with X735 and Raspberry Pi 4, you power via DC jack or Type-C or Micro USB of X735 board. Recommend DC jack or Type-C.
- Page 11 A: For the DC port, the inside the +5V, the outside is GND. Q7: Why Raspberry Pi freezes when X825 is connected? A: Please try to format the disk and test again. Q8: Why Wi-Fi is not available? A: USB 3.0 devices might generate radio frequency interference that can cause Wi-Fi and other wireless devices operating in the 2.4GHz band to have issues communicating with your Raspberry Pi4.
