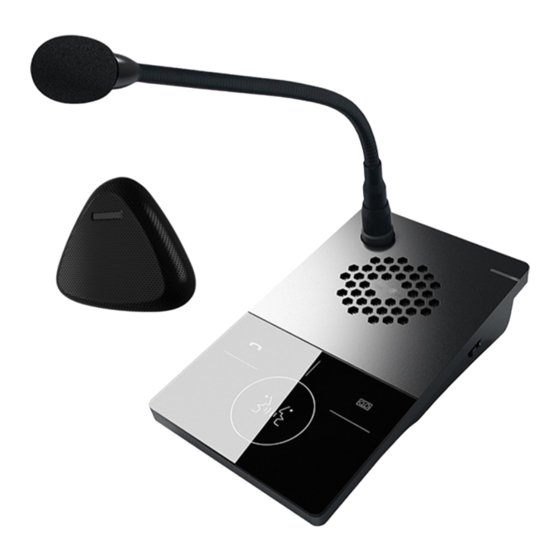

- Page 1 Digital Window Intercom OP-6505H User Guide 2023...
-
Page 3: Table Of Contents
Contents Summary…………………………………………………………………………………………….……. Safety precautions………………………………………………………………………………………… Product introduction……………………………………………………………………………………. Features………………………………………………………………………………………………….…… Hardware interface instruction……………………………………………………………….…… Packing list……………………………………………………………………………………….………….. Wiring………………………………………………………………….………………………….…….…….. Basic function……………………………………………………………………………………….……… Local intercom……………………………………………………………………………….………….…. Remote intercom………………………………………………………………………….……………… Scene mode adjustment…………………………………………………………….………………… Engineer settings…………..……………………………………………………………………………… Recording…………………………………………………..………………………………….…………….. Fault exclude………………………………………………………………………………………………… Connect OP-6505B……………………………………………………..…………………………… Connection diagram ………………………………………………………………………………….. -
Page 4: Summary
Summary Warning and Reminding This symbol means there are potential safe troubles, it may cause death or serious injury with incorrect operation. This symbol used to remind the user that this device attached the important operation and maintenance instructions. Setting and Installation •... -
Page 5: Features
Internal window intercom Internal window intercom Features • Adopt single DSP multi-channel language auto-control technology, avoiding squeaking and disturb to realize real digital full-duplex intercom. • Adopt full touchable transparent key design, keep intercom without disturb from key-click and keep it with the halo light on. •... -
Page 6: Hardware Interface Instruction
Hardware interface instruction Internal window intercom 【Front view】 ①Working indication light: red light is offline, green light is online ②Loudspeaker: amplify the local intercom audio. ③Recording key: make a recording when press the key at the first time, finish the recording by press again, the recording key will quickly red flashed in the recording process. -
Page 7: Packing List
①Power interface: connect with DC12/2A power. ②Communication interface：connect with the network HD recording host. ③Analog audio input interface: output analog audio, connect with DVR or camera. ④External window intercom interface. 【External window intercom】 ①Loudspeaker/MIC： Loudspeaker：amplify the local intercom audio； MIC：pick up the local intercom audio； ②Internal window intercom interface Packing list Window intercom system include following accessories, please check following parts, please... - Page 8 Microphone pole 1 pcs （1） Power adapter 1 pcs （2） Wiring harness （3*100mm）3 pcs （3） Cable clamp (HC-100) 3 pcs （4） Wiring connector (3.81-2P) 1 pcs （5） Quick installation manual 1 pcs （6） ( 7 ) Headset ( only with the OP-6505HK)
-
Page 9: Wiring
Wiring Connect the one port of power adapter to the power interface of internal （1） window intercom, the other port connect with power socket. Connect interface of external window intercom with internal window intercom. （2） Connect the one port of Ethernet to internal window communication interface （3）... -
Page 10: Scene Mode Adjustment
Scene mode adjustment Window intercom provides three scene modes: Noisy (1), Standard (2), Quiet (3) 】； the default mode is standard mode. Incoming prompt tone: Press voice broadcast key to automatic play voice prompt in the process of intercom with window external terminal, press shortly to prompt "Hello, welcome", long press for a while to prompt "Thank you, welcome to come next time.". - Page 11 Connect DCL20-65 Loop Amplifier (for OP-6505HB Versions) The DCL20-65 is an induction loop kit that can be used to equip counters or reception desks. The system allows to meet the restrictions of the law of european equal treatment directives while respecting the requirements of EN60118-4. The set is designed to offer accessibility to hearing- impaired equipped with a T-position on their hearing aid.
- Page 12 Notes:...
- Page 13 Tél : 09.81.24.00.06 Mail: contact@opus-technologies.fr Opus Technologies — 4 Allée Pierre Gilles de Gennes — 33650 MARTILLAC...
