DESCRIPTION
Demonstration circuit 2672A-B is a complete non-isolated
48V input, dual-phase single output, high efficiency, high
density µModule regulator with 30V to 58V input range.
The output can supply 50A maximum load current. The
demo board has a LTM4664 µModule regulator, which is
a dual 25A or single 50A step-down regulator with digital
power system management. Please see LTM4664 data-
sheet for more detailed information.
DC2672A-B powers up to default settings and produces
power based on configuration resistors without the need
for any serial bus communication. This allows easy evalu-
ation of the DC/DC converter. To fully explore the extensive
power system management features of the part, download
BOARD PHOTO
48V
, Single 50A µModule Regulator
IN
With Digital Power System Management

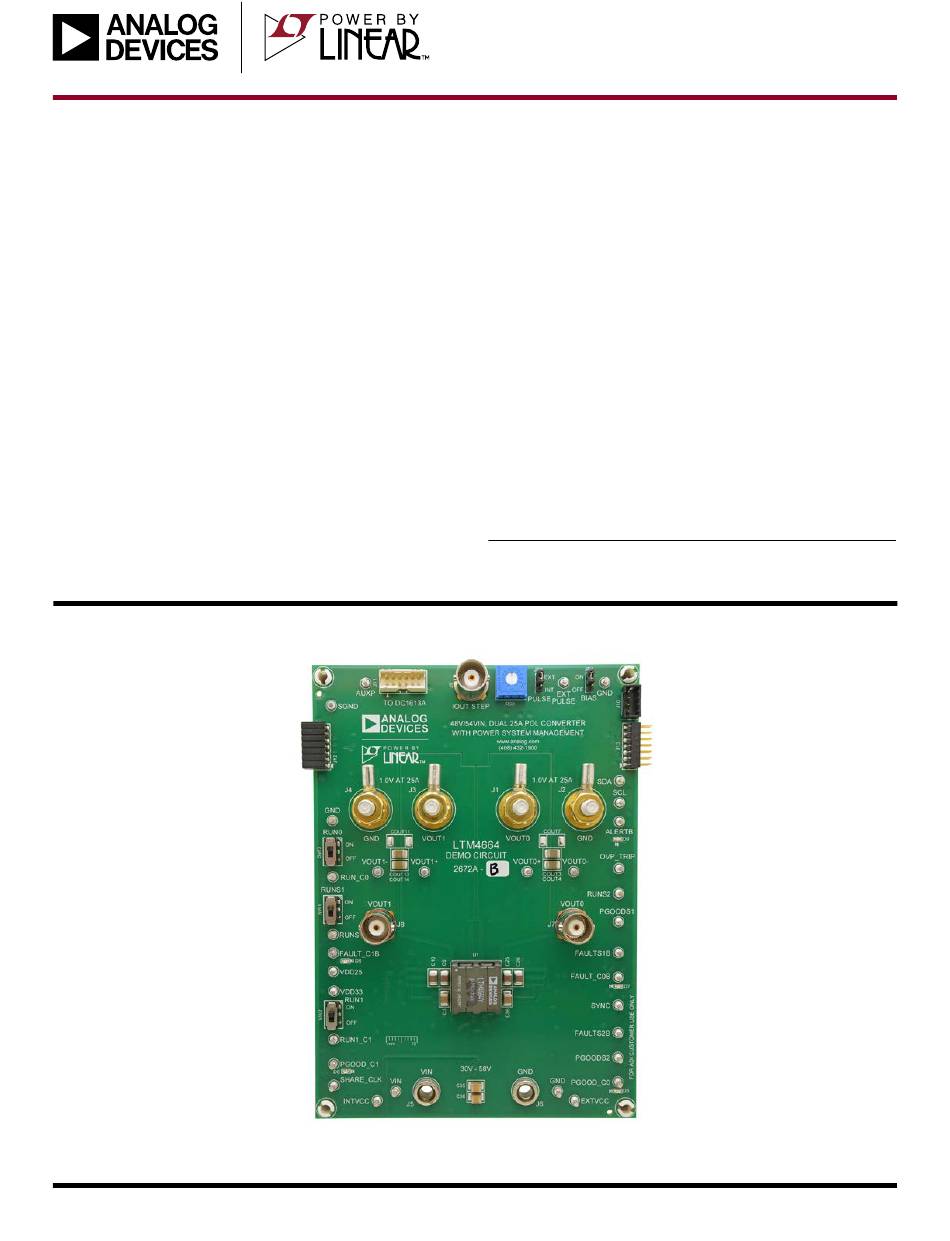

Figure 1. Dual Phase Single-output LTM4664/DC2672A-B Demo Circuit
DEMO MANUAL DC2672A-B
the GUI software LTpowerPlay™ onto your PC and use
2
ADI's I
C/SMBus/PMBus dongle DC1613A to connect to
the board. LTpowerPlay allows the user to reconfigure the
part on the fly and store the configuration in EEPROM, view
telemetry of voltage, current, temperature and fault status.
GUI Download
The software can be downloaded here.
For more details and instructions of LTpowerPlay, please
refer to LTpowerPlay GUI for LTM4664 Quick Start Guide.
Design files for this circuit board are
All registered trademarks and trademarks are the property of their respective owners.
LTM4664
available.
Rev. 0
1
