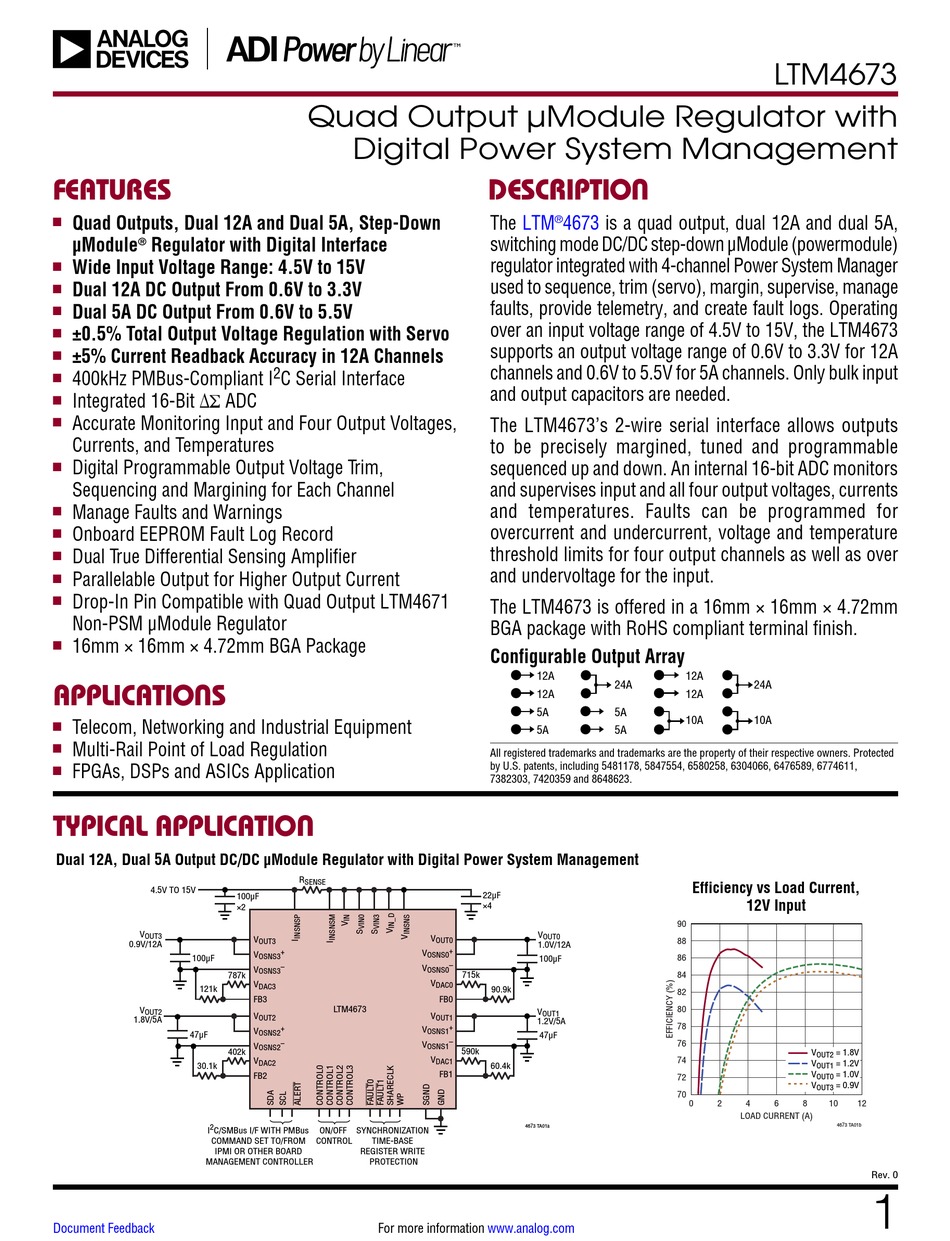

FEATURES
Quad Outputs, Dual 12A and Dual 5A, Step-Down
n
μModule
Regulator with Digital Interface
®
Wide Input Voltage Range: 4.5V to 15V
n
Dual 12A DC Output From 0.6V to 3.3V
n
Dual 5A DC Output From 0.6V to 5.5V
n
±0.5% Total Output Voltage Regulation with Servo
n
±5% Current Readback Accuracy in 12A Channels
n
400kHz PMBus-Compliant I
n
Integrated 16-Bit ΔΣ ADC
n
Accurate Monitoring Input and Four Output Voltages,
n
Currents, and Temperatures
Digital Programmable Output Voltage Trim,
n
Sequencing and Margining for Each Channel
Manage Faults and Warnings
n
Onboard EEPROM Fault Log Record
n
Dual True Differential Sensing Amplifier
n
Parallelable Output for Higher Output Current
n
Drop-In Pin Compatible with Quad Output LTM4671
n
Non-PSM μModule Regulator
16mm × 16mm × 4.72mm BGA Package
n
APPLICATIONS
Telecom, Networking and Industrial Equipment
n
Multi-Rail Point of Load Regulation
n
FPGAs, DSPs and ASICs Application
n
TYPICAL APPLICATION
Dual 12A, Dual 5A Output DC/DC µModule Regulator with Digital Power System Management
4.5V TO 15V
V
OUT3
0.9V/12A
100 F
787k
121k
V
OUT2
1.8V/5A
47 F
402k
30.1k
2
I
C/SMBus I/F WITH PMBus
COMMAND SET TO/FROM
IPMI OR OTHER BOARD
MANAGEMENT CONTROLLER
Document Feedback
Quad Output μModule Regulator with
Digital Power System Management
2
C Serial Interface
R
SENSE
100 F
×2
V
OUT3
+
V
OSNS3
–
V
OSNS3
V
DAC3
FB3
LTM4673
V
OUT2
+
V
OSNS2
–
V
OSNS2
V
DAC2
FB2
ON/OFF
SYNCHRONIZATION
CONTROL
TIME-BASE
REGISTER WRITE
PROTECTION
For more information
DESCRIPTION
The
LTM
4673
®
switching mode DC/DC step-down μModule (powermodule)
regulator integrated with 4-channel Power System Manager
used to sequence, trim (servo), margin, supervise, manage
faults, provide telemetry, and create fault logs. Operating
over an input voltage range of 4.5V to 15V, the LTM4673
supports an output voltage range of 0.6V to 3.3V for 12A
channels and 0.6V to 5.5V for 5A channels. Only bulk input
and output capacitors are needed.
The LTM4673's 2-wire serial interface allows outputs
to be precisely margined, tuned and programmable
sequenced up and down. An internal 16-bit ADC monitors
and supervises input and all four output voltages, currents
and temperatures. Faults can be programmed for
overcurrent and undercurrent, voltage and temperature
threshold limits for four output channels as well as over
and undervoltage for the input.
The LTM4673 is offered in a 16mm × 16mm × 4.72mm
BGA package with RoHS compliant terminal finish.
Configurable Output Array
12A
12A
5A
5A
All registered trademarks and trademarks are the property of their respective owners. Protected
by U.S. patents, including 5481178, 5847554, 6580258, 6304066, 6476589, 6774611,
7382303, 7420359 and 8648623.
22 F
×4
V
V
OUT0
OUT0
1.0V/12A
+
V
OSNS0
100 F
–
V
OSNS0
715k
V
DAC0
90.9k
FB0
V
OUT1
V
OUT1
1.2V/5A
+
V
OSNS1
47 F
–
V
OSNS1
590k
V
DAC1
60.4k
FB1
4673 TA01a
www.analog.com
LTM4673
is a quad output, dual 12A and dual 5A,
12A
24A
24A
12A
5A
10A
10A
5A
Efficiency vs Load Current,
12V Input
90
88
86
84
82
80
78
76
74
72
70
0
2
4
6
LOAD CURRENT (A)
V
= 1.8V
OUT2
V
= 1.2V
OUT1
V
= 1.0V
OUT0
V
= 0.9V
OUT3
8
10
12
4673 TA01b
Rev. 0
1
