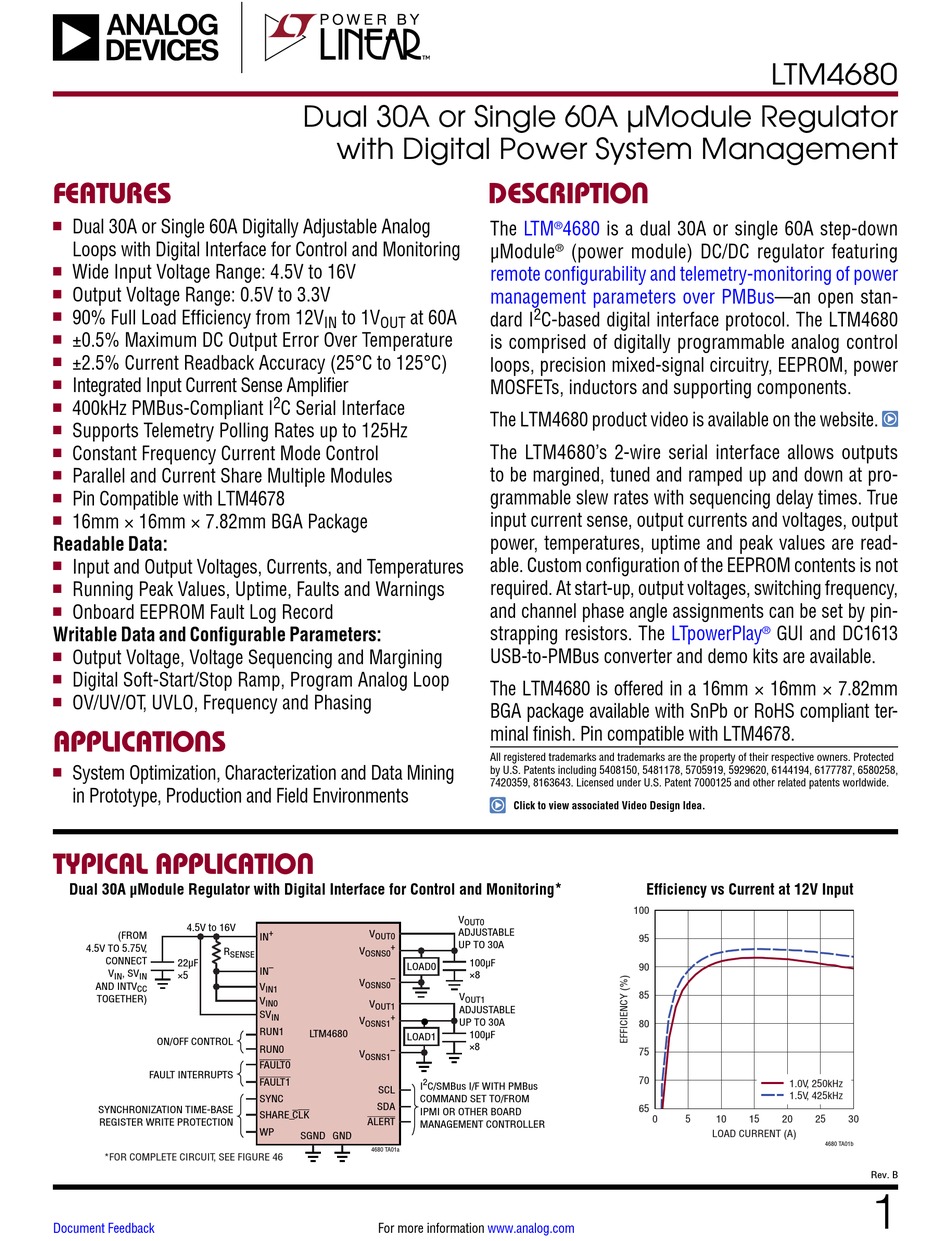

FEATURES
Dual 30A or Single 60A Digitally Adjustable Analog
n
Loops with Digital Interface for Control and Monitoring
Wide Input Voltage Range: 4.5V to 16V
n
Output Voltage Range: 0.5V to 3.3V
n
90% Full Load Efficiency from 12V
n
±0.5% Maximum DC Output Error Over Temperature
n
±2.5% Current Readback Accuracy (25°C to 125°C)
n
Integrated Input Current Sense Amplifier
n
400kHz PMBus-Compliant I
n
Supports Telemetry Polling Rates up to 125Hz
n
Constant Frequency Current Mode Control
n
Parallel and Current Share Multiple Modules
n
Pin Compatible with LTM4678
n
16mm × 16mm × 7.82mm BGA Package
n
Readable Data:
Input and Output Voltages, Currents, and Temperatures
n
Running Peak Values, Uptime, Faults and Warnings
n
Onboard EEPROM Fault Log Record
n
Writable Data and Configurable Parameters:
Output Voltage, Voltage Sequencing and Margining
n
Digital Soft-Start/Stop Ramp, Program Analog Loop
n
OV/UV/OT, UVLO, Frequency and Phasing
n
APPLICATIONS
System Optimization, Characterization and Data Mining
n
in Prototype, Production and Field Environments
TYPICAL APPLICATION
Dual 30A µModule Regulator with Digital Interface for Control and Monitoring*
4.5V to 16V
(FROM
4.5V TO 5.75V,
R
SENSE
CONNECT
22µF
V
, SV
×5
IN
IN
AND INTV
CC
TOGETHER)
ON/OFF CONTROL
FAULT INTERRUPTS
SYNCHRONIZATION TIME-BASE
REGISTER WRITE PROTECTION
*FOR COMPLETE CIRCUIT, SEE FIGURE 46
Document Feedback
Dual 30A or Single 60A µModule Regulator
with Digital Power System Management
to 1V
at 60A
IN
OUT
2
C Serial Interface
+
V
IN
OUT0
+
V
OSNS0
LOAD0
–
IN
–
V
OSNS0
V
IN1
V
IN0
V
OUT1
SV
IN
+
V
OSNS1
RUN1
LTM4680
LOAD1
RUN0
–
V
OSNS1
FAULT0
FAULT1
2
I
C/SMBus I/F WITH PMBus
SCL
SYNC
COMMAND SET TO/FROM
SDA
IPMI OR OTHER BOARD
SHARE_ CLK
ALERT
MANAGEMENT CONTROLLER
WP
SGND
GND
4680 TA01a
For more information
DESCRIPTION
The
LTM
4680
is a dual 30A or single 60A step-down
®
µModule
(power module) DC/DC regulator featuring
®
remote configurability and telemetry-monitoring of power
management parameters over
2
dard I
C-based digital interface protocol. The LTM4680
is comprised of digitally programmable analog control
loops, precision mixed-signal circuitry, EEPROM, power
MOSFETs, inductors and supporting components.
The LTM4680 product video is available on the website.
The LTM4680's 2-wire serial interface allows outputs
to be margined, tuned and ramped up and down at pro-
grammable slew rates with sequencing delay times. True
input current sense, output currents and voltages, output
power, temperatures, uptime and peak values are read-
able. Custom configuration of the EEPROM contents is not
required. At start-up, output voltages, switching frequency,
and channel phase angle assignments can be set by pin-
strapping resistors. The
USB-to-PMBus converter and demo kits are available.
The LTM4680 is offered in a 16mm × 16mm × 7.82mm
BGA package available with SnPb or RoHS compliant ter-
minal finish. Pin compatible with LTM4678.
All registered trademarks and trademarks are the property of their respective owners. Protected
by U.S. Patents including 5408150, 5481178, 5705919, 5929620, 6144194, 6177787, 6580258,
7420359, 8163643. Licensed under U.S. Patent 7000125 and other related patents worldwide.
Click to view associated Video Design Idea.
100
V
OUT0
ADJUSTABLE
UP TO 30A
100µF
×8
V
OUT1
ADJUSTABLE
UP TO 30A
100µF
×8
www.analog.com
LTM4680
PMBus—an open stan-
LTpowerPlay
GUI and DC1613
®
Efficiency vs Current at 12V Input
95
90
85
80
75
70
1.0V, 250kHz
1.5V, 425kHz
65
0
5
10
15
20
25
LOAD CURRENT (A)
30
4680 TA01b
Rev. B
1
