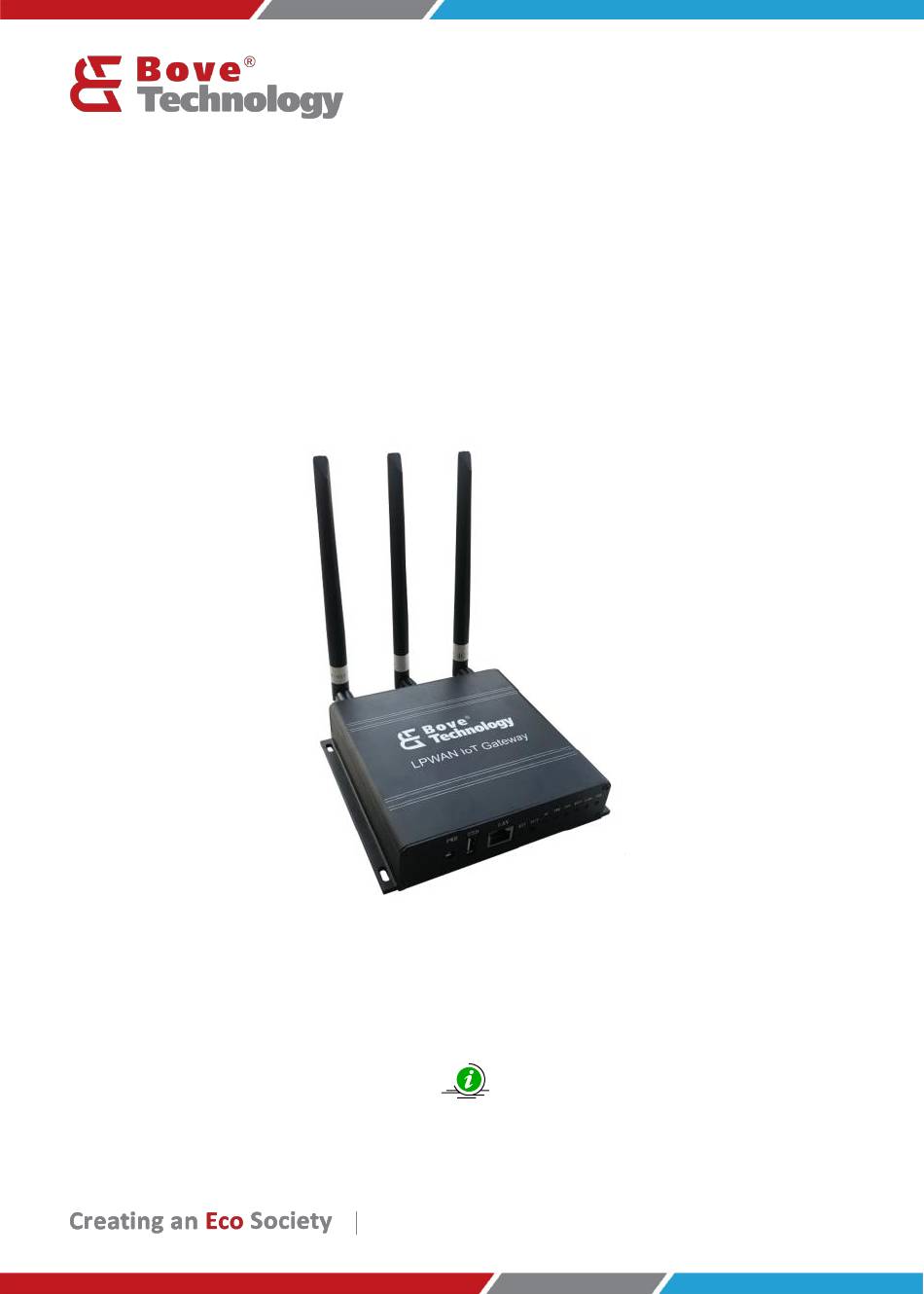

- Page 1 Walrus LoRaWAN-ID Gateway Read this Guide before installing the application www.bovetech.com...
- Page 2 BOVE TECHNOLOGY. ⚫ Copying or reproducing all or any part of the contents of this manual without the permission of BOVE TECHNOLOGY is strictly prohibited. Bove Intelligent Technology Co., Ltd Add: Level 9, Jiaxing Pioneer Building, No. 1539, ChengNan Road, Jiaxing, Zhejiang, P.R.
- Page 3 CONTENT 1.PRODUCT OVERVIEW ............................1 1.1 D ................................1 ESCRIPTION 1.2 F ................................. 1 EATURES 2. GLOBAL ELECTRICAL SPECIFICATIONS AND RELIABILITY ................1 2.1 P ................................ 1 OWER UPPLY 2.2 S ................................ 2 PECIFICATIONS 3. MECHANICAL SIZE AND PACKAGE INFORMATION ..................3 ..............................

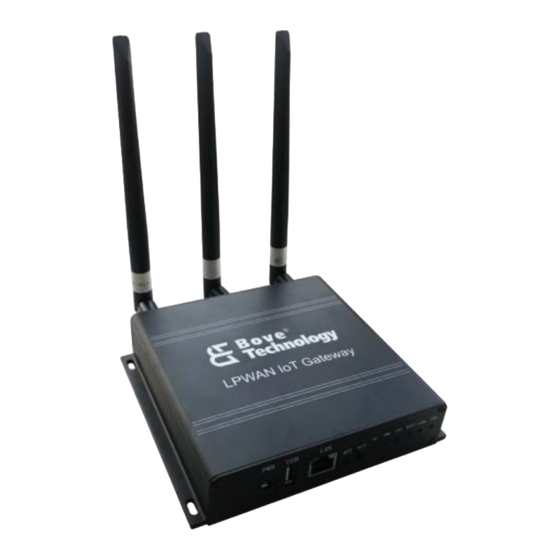

- Page 4 1. Product overview 1.1 Description Walrus is an IOT gateway based on LoRaWAN and target to LPWAN network. The GW could support LoRaWAN Class A/C protocol and Wi-Fi IEEE 802.11b/g/n standard. The 2.4G wireless transmission rate up to 150Mbps. Users could connect the GW to Cloud server via Wi-Fi.
- Page 5 Conducted Receiver sensitivity and Transmitter output power would be used to evaluate the performance here. Sensitivity Test condition：32byte payload, PER=10%, +25 °C. Conducted Receiver sensitivity Part Number Bandwidth/kHz Spreading Factor Sensitivity/dBm -140 -125 -136 Walrus-ID-470 -122 -133 -119 -139 -125 -136 Walrus-ID-868 -122 -133 -119 -139 -125...
- Page 6 3. Mechanical size and package information 3.1 Mechanical size Walrus Mechanical size 3.2 Package information 3.2.1 Package list Package List Material Walrus Walrus-ID-xxx Adapter 12/1.5A 6dBi High-efficiency Antenna of WIFI omnidirectional antenna High-efficiency omnidirectional Antenna of LoRa antenna High-efficiency omnidirectional Antenna of 4G (Optional) antenna Copyright©...
- Page 7 All trademarks in this material are property of the respective companies. Bove and the Bove logotype are trademarks of Bove Technology. All rights reserved. Copyright© 2020 Bove Intelligent Technology Co., Ltd...
