  • Page 1 User Guide LoRaWAN Walrus-ID Gateway www.bovetech.com...

  • Page 2: Table Of Contents

    CONTENT 1. PREVIEW ..................................1 2. PREPARING .................................. 1 2.1. G ..............................1 ATEWAY ONNECTION 2.2. G ................................1 ATEWAY OGIN 3. STATUS ..................................2 3.1. O ..................................2 VERVIEW 4. NETWORK ..................................3 4.1. M ....................................3 4.2. E ..................................5 THERNET 4.3. LAN ...................................

  • Page 3: Preview

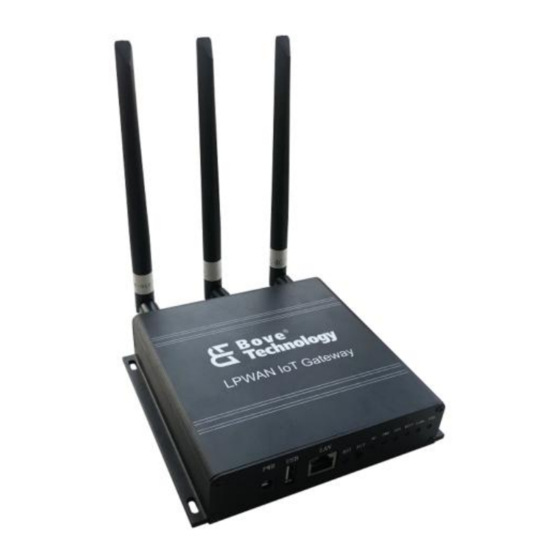

    1. Preview Walrus-ID LoRaWAN gateway integrates a LTE 4G (optional) module, a WiFi module and a LoRa module. Walrus-ID gateway has the characteristics of compact size, simple appearance, high reliability, etc. It can easily realize the rapid network deployment in various environments. 2.

  • Page 4: Status

    3. Status 3.1.Overview 3.1.1 System 3.1.2 Memory Copyright© 2022 Bove Intelligent Technology Co., Ltd 2/15...

  • Page 5: Network

    3.1.3 Network 3.1.4 DHCP Leases 4. Network 4.1. Mode 4.1.1. AP mode The factory default of the Walrus-ID gateway is the AP mode. In this mode, the gateway needs Copyright© 2022 Bove Intelligent Technology Co., Ltd 3/15...
  • Page 6 to connect to the Internet through the Ethernet port, DHCP. The LAN port on ID gateway can link to router’s DHCP LAN port to enable Internet access. Note: ApSsid and ApKey are the wifi name and password, can be changed. 4.1.2.

  • Page 7: Ethernet

    4.1.3. IPPPOE mode PPPOE mode supports dial-up Internet access. Refer to ISP for the WAN access username and password. 4.2.Ethernet Note: For Ethernet configure, only support when AP mode enabled. 4.2.1. DHCP client Use DHCP IP provide by router Click Switch Protocol to switch the Ethernet mode. 4.2.2.

  • Page 8: Lan Config

    4.3.LAN config Local area network configure, the IP address is used to login the gateway web UI. 4.4.Region Gateway wireless region setting. 4.5.Diagnostics Using network tools to check the network status. Copyright© 2022 Bove Intelligent Technology Co., Ltd 6/15...

  • Page 9: Apn

    4.6.APN Walrus-ID gateway has many built-in APN setting. In case of customer’s APN is not included, gateway supports add APN operation. Copyright© 2022 Bove Intelligent Technology Co., Ltd 7/15...

  • Page 10: Rssh

    Note: Add APN need confirm the information on the picture with the operator. 4.7.RSSH 1) RSSH is an auxiliary tool used by the company to remotely manage devices. After launching the tool, the device will connect to the specified server and generate a port number.

  • Page 11: System

    5. System 5.1.System Here you can configure the basic aspects of your device like its hostname or the timezone. 5.2.Administrator Changes the administrator password for accessing the device Copyright© 2022 Bove Intelligent Technology Co., Ltd 9/15...

  • Page 12: Reboot

    5.3.Reboot Reboots the operating system of your device 5.4.Reset Resets the operating system of your device 6. Server Iotsquare Bridge is a program that integrates device management and LoRaWAN data forwarding. The system starts the program by default and connects to the Iotsquare server (http://is0.bovetech.com:7070).

  • Page 13: Lora

    7. LoRa 7.1.LoRa RSSI Noise Floor Scanning to evaluate the ambient noise. Set start value/ end value of frequency and stepping value. Start Scanning to scan the noise. Copyright© 2022 Bove Intelligent Technology Co., Ltd 11/15...

  • Page 14: Packet Forwarder

    Note: The ambient noise can’t be over -95dBm, normally -100dBm is the worst condition. Example if the value is -107dBm which is the good condition. If the result shows the ambient noise over -95dBm, you must change the installation place. Or the communication distance will be greatly reduced.

  • Page 15: Other Network Server

    Note: Use Bove Alpaca-E , platform, the server address is “is0.bovetech.com”, the port is 1780 (downlink and uplink are same) 7.3.Other Network Server Instead of standard packet forward, Walrus-ID Gateway also support different network server: iotsquare, loraserver, OrbiWise, loriot, Alit LinkWAN. 8.

  • Page 16: Button

    Green LED always on when power on. After the system is completely started, the led light flashes slowly in green; when you press the RESET button to restore the factory settings, the led light flashes quickly; when you press the RESET key to restart, the led light is always on; when the device enters the system upgrade mode, the led light flashes slowly.

  • Page 17: Revision

    9. REVISION V1.1.0 2022/12/12 +Update the document format, change wifi configure pictures Copyright© 2022 Bove Intelligent Technology Co., Ltd 15/15...
  • Page 18 Bove Intelligent Technology Co., Ltd Add: Level 5, Building 5, No. 36, Changsheng South Road, Jiaxing, Zhejiang, China, 314000 Tel: +86 573 83525916 Fax: +86 573 83525912 Email: bove@bovetech.com www.bovetech.com Copyright© 2022 Bove Intelligent Technology Co., Ltd...
