Keithley 7789 Packing List

50/25-pin solder-cup adapter kit

Keithley Instruments, Inc.

28775 Aurora Road

Cleveland, Ohio 44139

(440) 248-0400

Fax: (440) 248-6168

WARNING

The information in this packing sheet is intended for use by qualiﬁed service personnel

only. Do not assemble connectors or make connections to them unless qualiﬁed to do so.

Failure to recognize and observe normal safety precautions could result in personal

injury or death.

Do not exceed the maximum speciﬁcations of the switching module.

The Model 7789 connector kit is made up of two solder-cup connectors:

• 50-pin male D-shell with solder cups — This solder-cup connector (Figure 1A) mates to the 50-pin female D-shell on

Models 7701, 7703, and 7709 switching modules.

• 25-pin male D-shell with solder cups — This solder-cup connector (Figure 1B) mates to the 25-pin female D-shell on

Models 7701, 7707, and 7709 switching modules.

Each D-shell connector has the following features:

• 18 AWG solder-cup contacts.

• Gold-plated (ﬂash) over nickel on the entire contact (brass pin).

• Die cast shielded cable clamp with grommets.

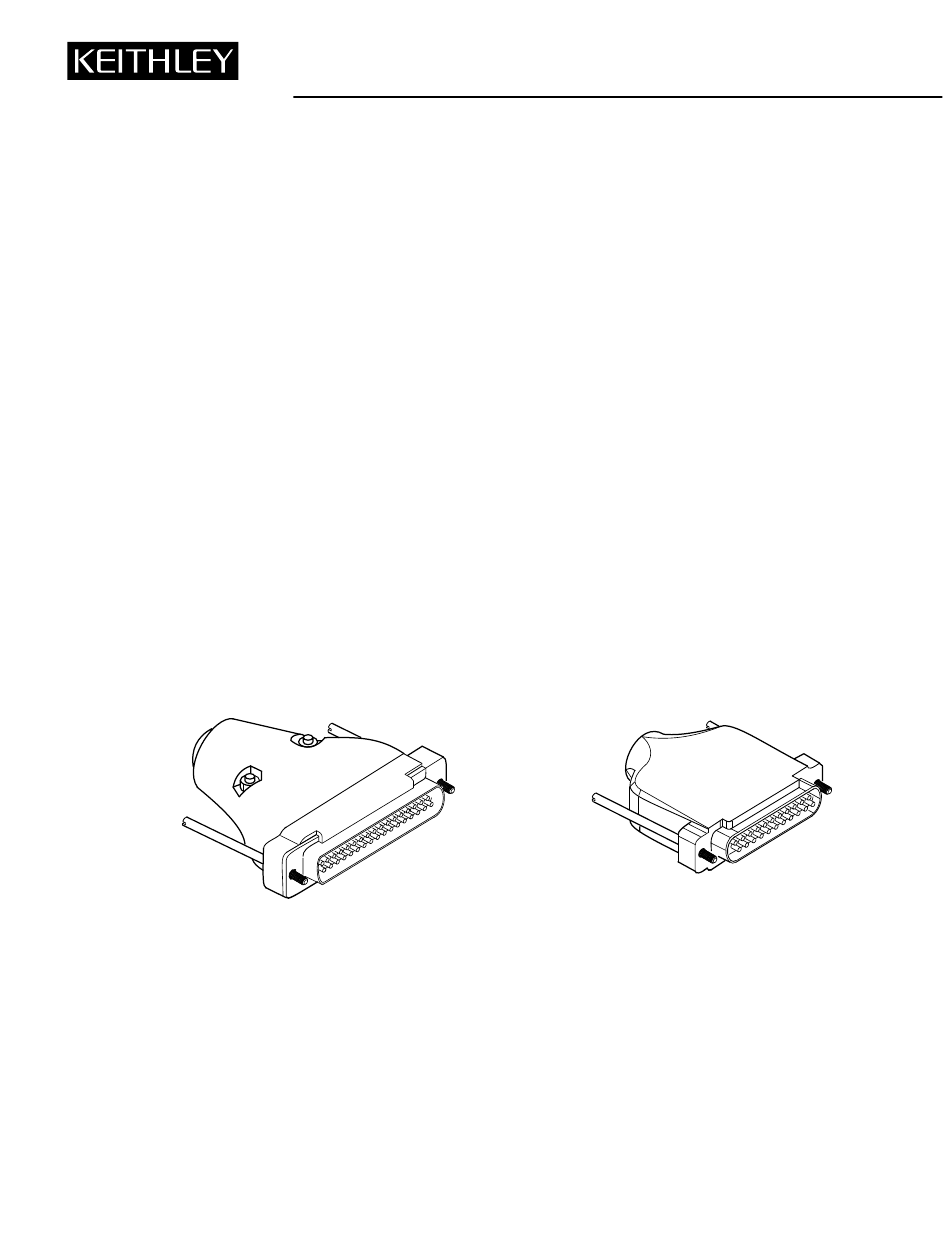

Figure 1

Solder-cup connectors

A. 50-Pin Male D-Shell

Model 7789 50/25-pin Solder-Cup Adapter Kit

Packing List

B. 25-Pin Male D-Shell

PA-772 Rev. A / 3-01
