Bio-logic
®
Bio-logic

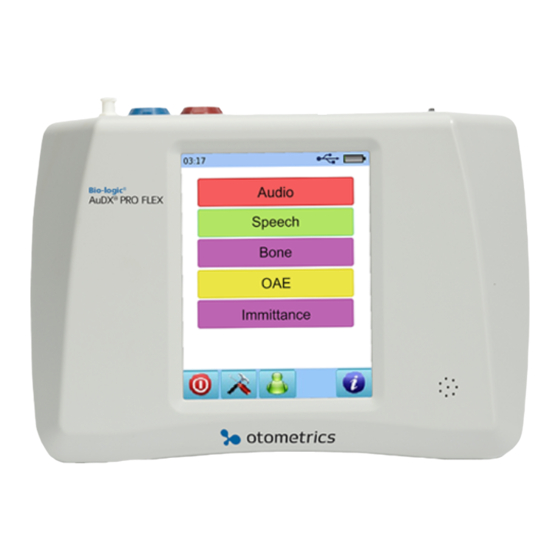

AuDX PRO FLEX
®
®
OAE and tympanometry screening
Quick Start Guide
Doc. No.7-26-1372-EN/00
Part No.7-26-13702-EN
Natus Medical Denmark ApS. +45 45 75 55 55. otoinfo@natus.com
Natus Medical Incorporated. 1-800-289-2150. otoorder.us@natus.com
www.otometrics.com
Advertisement
Related Manuals for natus otometrics Bio-Logic AuDX PRO FLEX
Summary of Contents for natus otometrics Bio-Logic AuDX PRO FLEX
- Page 1 Bio-logic ® Bio-logic AuDX PRO FLEX ® ® OAE and tympanometry screening Quick Start Guide Doc. No.7-26-1372-EN/00 Part No.7-26-13702-EN Natus Medical Denmark ApS. +45 45 75 55 55. otoinfo@natus.com Natus Medical Incorporated. 1-800-289-2150. otoorder.us@natus.com www.otometrics.com...
-
Page 2: Device Connectors
Bio-logic Quick Guide: ® Bio-logic AuDX PRO FLEX OAE and tympanometry screening ® ® Device connectors Headphones or On/Off button Power supply USB cable Probe second transducer Label printer Patient response Air Pump button Start menu Please note that not all Start Menu options will be available depending on the configuration and modules on your device. -
Page 3: Tympanometry Test Screen
Bio-logic Quick Guide: ® Bio-logic AuDX PRO FLEX OAE and tympanometry screening ® ® Testing: Tympanometry Connect the probe to the red connector and the air cable to the pump connector. From the start menu, select Immittance: Tymp+Ref button. Select the test ear by pressing either the Right or Left button. Cartoon mode will show an airplane on the screen during the tympanometry test. - Page 4 Bio-logic Quick Guide: ® Bio-logic AuDX PRO FLEX OAE and tympanometry screening ® ® Distortion Product Otoacustic Emissions (DPOAE) Screening Select either the Screening or the Standard button from the start menu and connect the probe to the red connector. or use the tympanometry probe.
- Page 5 Bio-logic Quick Guide: ® Bio-logic AuDX PRO FLEX OAE and tympanometry screening ® ® Eartip not completely inserted, Eartip squeezed at the end of Eartip folded on probe tip, space between eartip and the probe tip obstructing delivery of sound probe tip Once the eartip is correctly placed in the ear canal, select the test ear by pressing either the Right or Left button.
- Page 6 Bio-logic Quick Guide: ® Bio-logic AuDX PRO FLEX OAE and tympanometry screening ® ® A calibration will be performed prior to measurement. A green light indicates successful calibration (see below left). After successful ear probe calibration, the test will start automatically. Progress for each tested frequency Overall test progress...
- Page 7 Bio-logic Quick Guide: ® Bio-logic AuDX PRO FLEX OAE and tympanometry screening ® ® Detailed results view Red or blue bars indicate response, grey bars Outcome for each test Numeric values shown indicate noise. Press Retest if needed. sorted by f2 and L2 in table format Retest Test...
- Page 8 Bio-logic Quick Guide: ® Bio-logic AuDX PRO FLEX OAE and tympanometry screening ® ® Quick Guide Information Release date: 2017-01-25 Revision: 02 Valid from: Firmware Rev. 2.1, Mira PC Software Rev. 1.6.4 Applies to: Model: SOD100497, web description SOD04 and SOD05 All mentioned items, products, brands and trademarks are registered or owned by the mentioned companies.
