Summary of Contents for Jands 4PAK

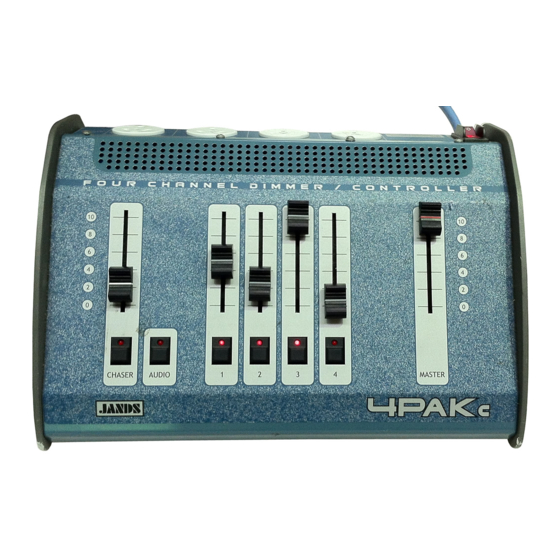

- Page 1 4P AK FOUR CHANNEL DIMMER User Manual...
- Page 2 The Master Link socket allows two (2) 4PAKs to be used together with common mastering facilities. The total combined output of one (1) 4PAK is limited to 10A (2.4kW), which is the maximum power available from any standard 240 VAC G.P.O. outlet. Each unit comes complete with anti-scratch rubber feet and 1.5 metre mains power cord.
- Page 3 Both the Chase and Audio functions have LED indicators showing when each function is on. Note: At no time should the total output from the 4PAK exceed 2.4kW. If this occurs, the fuse will blow. Replace the fuse and take the master to zero before turning it on again. This maxi- mum power (2.4kW) may be supplied by one channel, or a combination of channels.
- Page 4 MASTER LINK On the back of the 4PAK is a 6.5mm jack socket. This is used for expansion purposes as follows. If two (2) 4PAKs are used in tandem, Master-Linking (as shown in Figure 1) allows all eight (8) channels to be controlled by a common Master fader. In this mode, the 4PAK Master fader with the highest level setting determines the overall master level.
- Page 5 MAINTENANCE With care, the 4PAK will require little or no maintenance. Covering the unit while not in use prevents entry of dust into the faders, increasing useful life. This also minimizes the risk of entry of liquids inside the chassis, which would be both damaging to the unit and dangerous to the operator.
- Page 6 SPECIFICATIONS Input 240 VAC 50Hz 10A max, single phase Output Four channels, max 10A each Total load max 10A Minimum Output Risetime 80us (1 channel, 2.4kW resistive load) Protection 10A Ceramic Filled Fuse Construction Two piece: steel chassis and aluminium base Weight 4 kg Size...
- Page 7 JANDS ELECTRONICS PTY. LTD 40 Kent Road, Mascot, NSW 2020 Locked Bad 15, Mascot Telehone: (02) 9582 0909 Fax: (02) 9582 0999...
