Roper Rhodes MINERVA Fitting Instructions

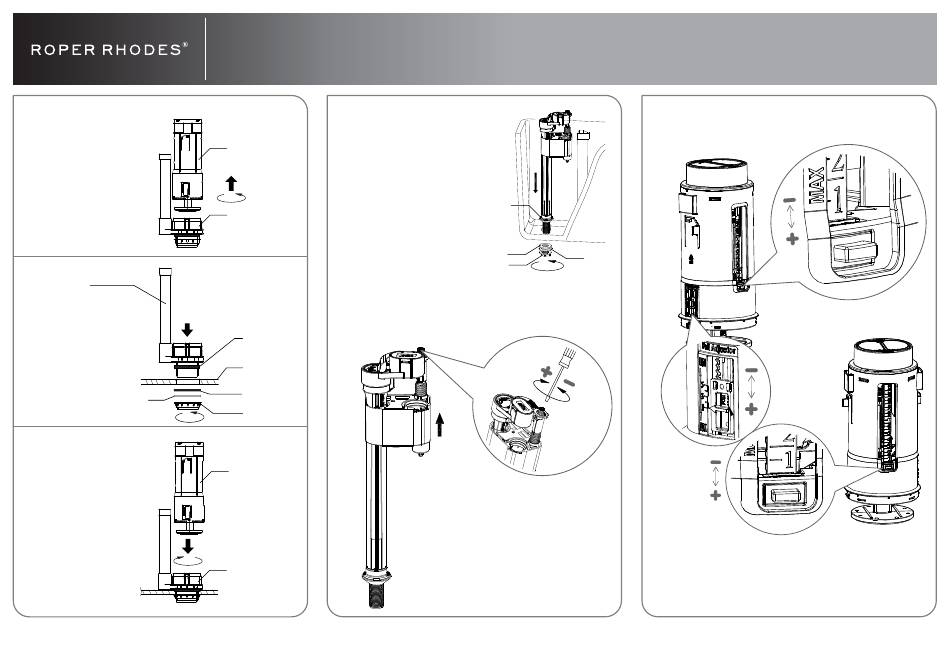

Installation of Flush Valve
Turn the flush valve
body anti-clockwise to
part it from the flush
valve cradle
Overflow Tube
Install flush valve
cradle and seal as
shown
Plastic Washer
Insert flush valve body
into flush valve cradle,
turn it clockwise until
you hear a "click"
MINERVA
CLOSE COUPLED PAN FITTING INSTRUCTIONS (4.5/3L FLUSH)
This product must be installed by a qualified fitter or plumber in accordance with and meet the requirements of the Water Supply (Water Fittings)
Regulations 1999 and Scottish Byelaws 2004
INSTALLATION OF FILL VALVE
Install the fill valve to the tank body using the
rubber seal and plastic nut. Ensure the float
Flush valve body
cup has room to move up and down freely.
The fill valve is pre-set to a height suitable for
the cistern tank.
Flush valve cradle
FILL VALVE ADJUSTMENT
The fill valve is factory set but if adjustment is required so that the water level
corresponds with the line in the cistern, follow the instructions below.
Rubber Seal
Cistern tank
Rubber Washer
Fixing nut
Flush valve body
Flush valve cradle
Customer S ervices, Rop er Rho des Ltd, Brassmill Lane Trading E state, Bath, BA1 3JF
Email: sales@roperrho des.co.uk
Rubber seal
Rubber washer Plastic
washer
Plastic nut
FINE ADJUSTMENT
Turn screw for fine adjustment of float
height. Anticlockwise to lower float.
Clockwise to heighten float.
TEL: 01225 303 900 | FAX: 01225 448 877
| Web: www.roperrhodes.co.uk
Flush Valve Adjustment
The flush valve is factory set for 4.5/3L flush operation but if adjustment is
required, see diagram below.
White full flush float adjustment
'Full Adjustor'
For fine adjustment
to full flush volume
Green reduced flush
float adjustment
SETTINGS
Full Flush Reduced Flush Water
Setting Setting Level
4.5/3L Flush 5 10.5 255mm
Cistern fittings are suitable for Water pressure: 0.2 - 8 bar
RR-MIN-AG-CC REV : 04.20 V. 1.02
