Roper Rhodes Secure-Fix QR Manual

TRADITIONAL
Oak and Painted Quick Release Toilet Seats

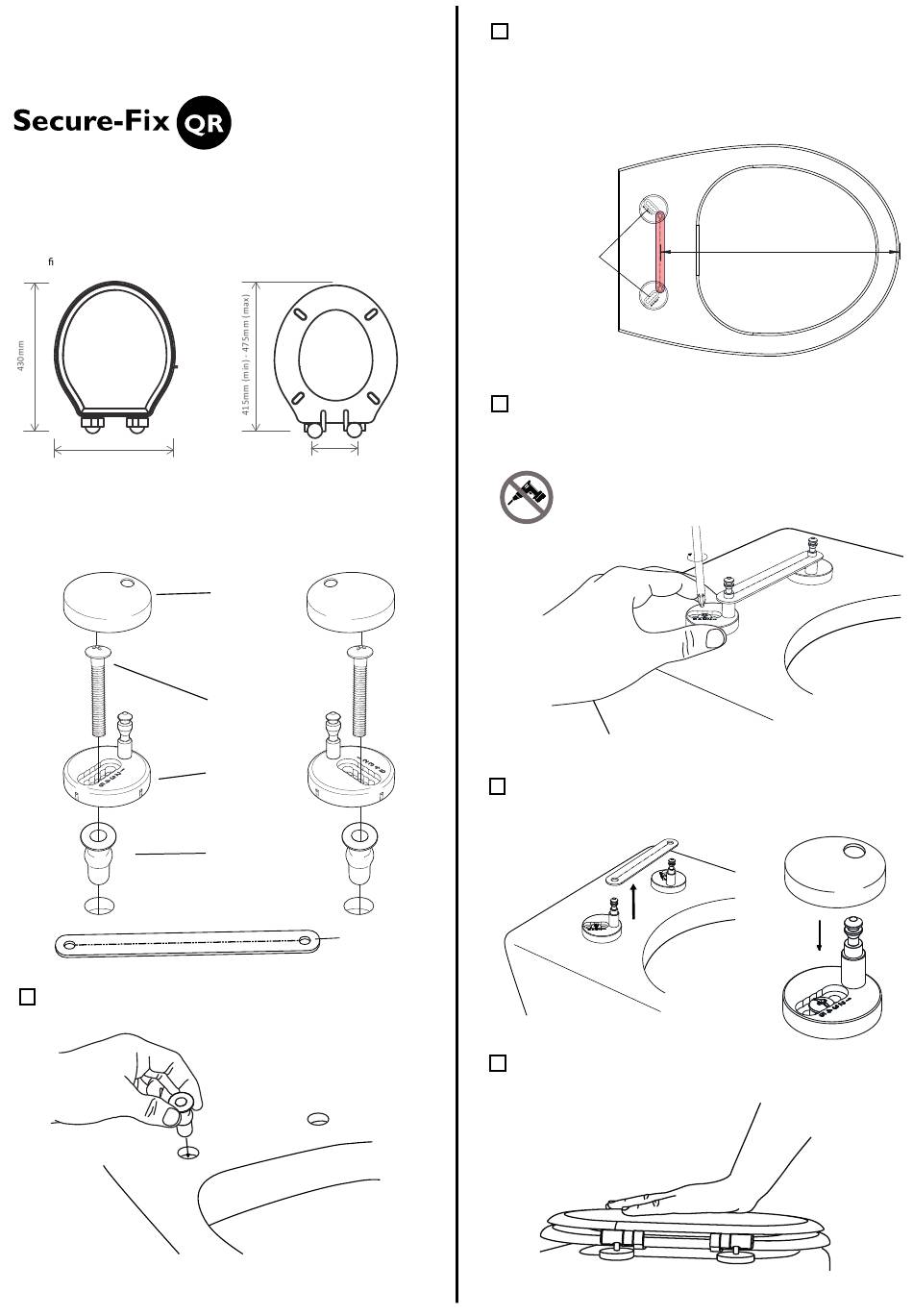

FITTING INSTRUCTIONS
Please read carefully before attempting to fit the seat & refer to the 'does it fit'
diagram below to ensure it's suitable for your toilet.
Please make sure the warnings and after-care instructions are made available for
the end user to read.
Does it t?
375mm
general seat dimension
TOP FIX INSTALLATION
A
B
C
D
E
1 Push top fix inserts into toilet pan holes
If difficult to push in, lubricate the rubber insert with water.
122mm (min)
242mm (max)
max/min fixing adjustment
Cover Plate
Fixing Screw
Hinge Anchor
Top Fix Insert
Anchor Template
D
2
Place the template over the anchor pins, selecting the appropriate
hole numbers (on the anchors) so that the 445mm dimension from
the front of the pan to the centre line of the template is met.
Note: Selected anchor numbers must be matching
Select
appropriate
hole number
Once the 445mm dimension shown above is met and the template is
3
parallel to the back edge, insert the bolts then tighten using a screw
driver.
Secure as tightly
as possible by
hand. Do NOT
use a battery drill
or driver.
4
Remeasure the distance, making sure the 445mm dimension is met
and remove the template and add the cover cap.
5 Click seat in place.
445mm
A
