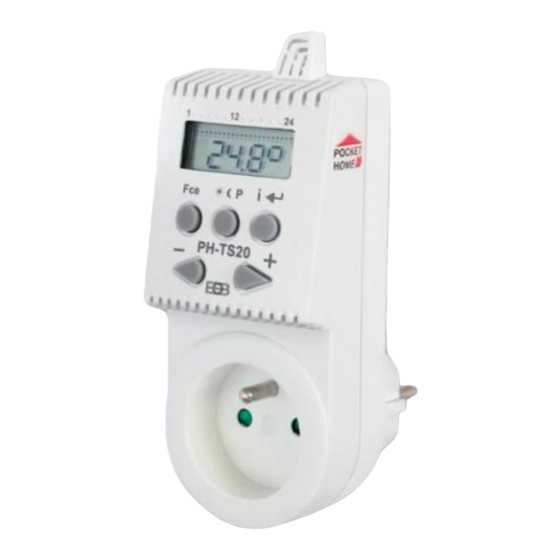

WIRELESS THERMO-SWITCH SOCKET
Temperature regulation for electrical heating systems
Component of PocketHome
Two-way radio communication on 433.92 MHz
It switches on/off connected appliance according to
required temperature
Current temperature measuring with built-in sensor
Central unit PH-CJ37 acts as a superior component
Power supply 230 V/50 Hz
NEW FEATURES:
-
SUMMER MODE FOR SWITCHING
THE AIR-CONDITIONER ON/OFF
PH-TS20
system
®
Operating instructions PH-TS20
version 10.07
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ELEKTROBOCK PocketHome PH-TS20
Summary of Contents for ELEKTROBOCK PocketHome PH-TS20
- Page 1 PH-TS20 WIRELESS THERMO-SWITCH SOCKET Temperature regulation for electrical heating systems Component of PocketHome system ® Two-way radio communication on 433.92 MHz It switches on/off connected appliance according to required temperature Current temperature measuring with built-in sensor Central unit PH-CJ37 acts as a superior component Power supply 230 V/50 Hz NEW FEATURES: SUMMER MODE FOR SWITCHING...
-
Page 2: Description Of Controls
DESCRIPTION OF CONTROLS built-in sensor display controls power supply 230V/50Hz socket for controlled appliance = selection of functions (AUTO, MANU, CL:O, PROG, PA:r, OF:F, UA:dr) = selection of temperatures (comfort, economy, party) = confirmation (ENTER), iinformation on required temperature (PO:t), current time/temperature (CL:O/tE:P), sum of operating hours (SU:MA) and day (dE:n) = setting of temperature, time, functions browsing DISPLAY DESCRIPTION... -
Page 3: First Connection
PUTTING INTO OPERATION WITHIN PocketHome SYSTEM ® 1. FIRST CONNECTION - connect PH-TS20 to distribution network 230 V/ 50Hz until the symbol dObI disappears from the display (it warns that it is necessary to charge the back-up battery) - when charged, activate according to below given procedure - the appliance to be regulated is to be connected by simple insertion to PH-TS20 socket - to be installed in areas with relative humidity lower than approx. - Page 4 4. SOCKET DEACTIVATION When the socket is activated in the system within UA:dr mode (see p.3), each socket is gradually assigned with address from 1 to 255. This address cannot be changed, but the socket can be deactivated from PocketHome system.
-
Page 5: Principal Functions
PUTTING INTO OPERATION FOR AUTONOMOUS MODE PH-TS20 is able to function also in autonomous (independent) mode. In this mode, it works according to program that is defined and stored by user in pro- cedure described below. This setting is useful for such cases, when a failure occurs in the communication within PocketHome system and the socket receives no signal in the course of 24 hours. - Page 6 PA:r2 economy temperature (factory setting 17°C) - PA:r2 is showed on the display - confirm by and by pressing buttons set economy temperature, again confirm by pressing PA:r3 comfort temperature (factory setting 23°C) - PA:r3 is showed on the display - confirm by and by pressing buttons set...
-
Page 7: Prog Function
PROG FUNCTION program defining - press and by button select PROG function confirm by pressing (PROGRAMMING) - by pressing select the day, which should be programmed according to following table: d:1 Monday d:5 Friday d1:5 Monday to Friday d:2 Tuesday d:6 Saturday d6:7 Saturday to Sunday d:3 Wednesday... -
Page 8: Off Function
FURTHER FUNCTIONS OF THE SOCKET Short-term change of temperature in AUTO mode By pressing buttons in AUTO mode it is possible to make a short-term change of re- quired temperature. The socket will maintain this temperature up to next temperature change as defined in the program (this function can be used also in PocketHome ®... - Page 9 UTILIZATION OF PH-TS20 SOCKET IT CONTROLS CONNECTED APPLIANCE AC- CORDING TO DEFINED TEMPERATURE PRO- GRAM. AS SOON AS THE TEMPERATURE DROPS UNDER REQUIRED TEMPERATURE, THE PH-TS20 SWITCHES THE APPLIANCE SUITABLE FOR DIRECT CONTROL OF FOL- LOWING APPLIANCES: - ELECTRICAL TUBULAR RADIATORS - ELECTRICAL HEATING PLATES - DIRECT-HEATING BODIES - VENTILATORS...
-
Page 10: Technical Parameters
A Operating temperature 0 to 40°C ES DECLARATION OF COMPLIANCE We, ELEKTROBOCK CZ s.r.o., herewith declare that the PH-TS20 product is in compliance with princi- pal requirements and further respective stipulations of the directive 1999/5/ES. Issued: 1.09.2007 www.elbock.cz Send the socket for guarantee and after-guarantee service to manufacturer’s address.
