OPERATION & SAFETY
INSTRUCTIONS
PANEL GUARD
TM
UL TYPE 4

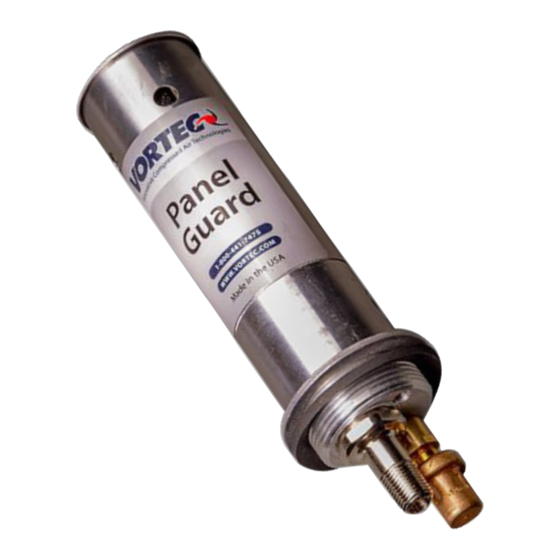

Models 701, 701-15H, 701-35H, 770, 770-15H, 770-35H
(Includes all BSP versions of models listed above)
I M P O R T A N T
Please read all instructions BEFORE attempting to use this product
10125 Carver Road, Cincinnati, OH 45242
Phone: 513-891-7474 • Fax: 513-891-4092
Toll Free: 800-441-7475
www.vortec.com • techsupport@vortec.com
Advertisement
Table of Contents
Related Manuals for ITW VORTEC PANEL GUARD 701
Summary of Contents for ITW VORTEC PANEL GUARD 701
- Page 1 OPERATION & SAFETY INSTRUCTIONS PANEL GUARD UL TYPE 4 Models 701, 701-15H, 701-35H, 770, 770-15H, 770-35H (Includes all BSP versions of models listed above) I M P O R T A N T Please read all instructions BEFORE attempting to use this product 10125 Carver Road, Cincinnati, OH 45242 Phone: 513-891-7474 •...
- Page 2 GENERAL SAFETY CONSIDERATIONS WARNING: COMPRESSED AIR COULD CAUSE DEATH, BLINDNESS OR INJURY 1. Do not operate at compressed air pressures above 150 psig (10.3 Bar). 2. Do not operate at line temperatures above 110°F (43°C). 3. Avoid direct contact with compressed air. 4.
- Page 3 If trouble persists, please contact Vortec at 1-800-441-7475. Limited Warranty Vortec compressed air products manufactured by ITW Air Management will be replaced or repaired if found to be defective due to manufacture defect within ten years from the date of invoice. Refer to our website www.vortec.
- Page 4 Panel Guard Assembly (Drawings shown below are not to scale) Models 770, 770BSP, 770-15H, 770-15HBSP, 770-35H, 770-35HBSP 1/4" NPT 1-15/16" Hole Vent Mechanical Theremostat Air Filter Plug end of tubing if holes are punched in length of tubing (as shown) Cold Air Ducting Kit...
- Page 5 Table 1: Filter Recommendations FILTER AND REPLACEMENT PART ITEM NUMBERS Vortec Model Oil Removal Filter Replacement Generator Kits (5 pcs) 701, 770 701S-48 208GK-25H 701-15H, 770-15H 701S-48 208GK-15H 701-35H, 770-35H 701S-48 208GK-35H Table 2: Determining Compressed Air Line Size 1. Calculate total product compressed air consumption (SCFM, SLPM). 2.
