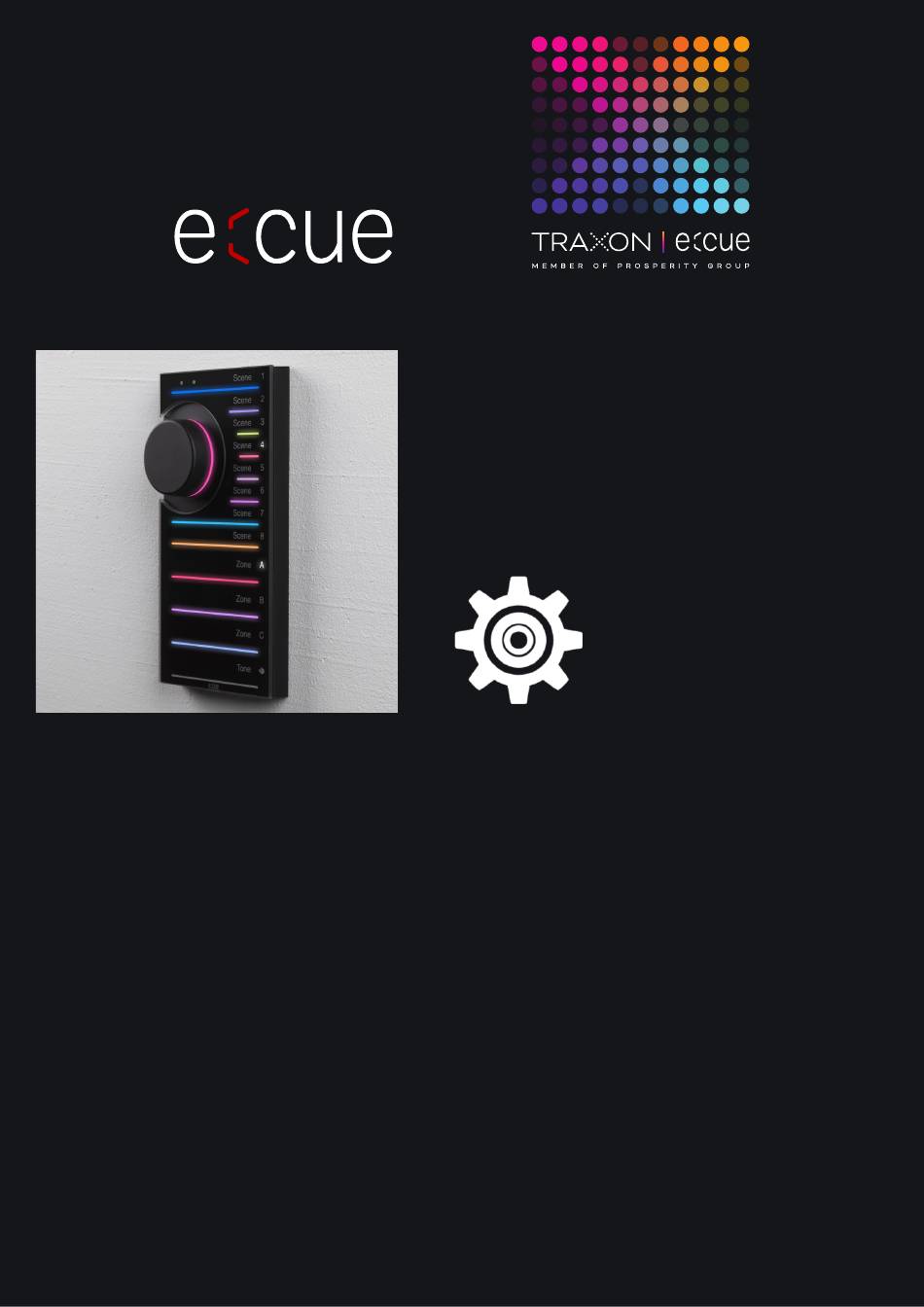

Traxon Technologies e:cue LIGHTDRIVE+ WiFi Configuration Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Read the Configuration Guide and the Safety Instructions
carefully. Subject to modification without prior notice.
Typographical and other errors do not justify any claim for
damages. Modification of the product is prohibited.
This document is designed for system administrators and
accomplished users of the product.
All product names and trademarks mentioned in this manual are
trademarks of their respective owners.
Except for internal use, relinquishment of the instructions to a
third party, duplication in any type or form - also extracts - as
well as exploitation and / or communication of the contents is not
permitted.
Downloads and more information at:
www.ecue.com
e:cue LIGHTDRIVE+ WiFi
Edition:
06.02.23 [EN_LIGHTDRIVEplusWiFi_Setup_v2p1]
Published by:
Traxon Technologies Europe GmbH
Karl-Schurz-Strasse 38
33100 Paderborn, Germany
©2023 Traxon Technologies Europe GmbH
All rights reserved
Traxon Technologies Europe GmbH
Sales Operations
Karl-Schurz-Str. 38
33100 Paderborn, Germany
+49 5251 54648-0
support@ecue.com
AM477420038
Configuration Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e:cue LIGHTDRIVE+ WiFi and is the answer not in the manual?

Questions and answers

Related Manuals for Traxon Technologies e:cue LIGHTDRIVE+ WiFi

Summary of Contents for Traxon Technologies e:cue LIGHTDRIVE+ WiFi

  • Page 1 33100 Paderborn, Germany All product names and trademarks mentioned in this manual are trademarks of their respective owners. ©2023 Traxon Technologies Europe GmbH Except for internal use, relinquishment of the instructions to a All rights reserved third party, duplication in any type or form - also extracts - as well as exploitation and / or communication of the contents is not permitted.
  • Page 2 Sequence of configuration LIGHTDRIVE+ app: Operation and functions Firmware Update Restart and Reset Default values Certifications Dimensions All links Trouble shooting 14.1 Power supply 14.2 Network 14.3 Update WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 02 / 29...

  • Page 3: Safety Instructions

    Only transport the device in its original packaging. This protects the device from damage. Unpacking Only unpack the e:cue LIGHTDRIVE+ WiFi at its installation location. To protect the device against condensation water, unpack it and wait until all moisture remaining in the device has evaporated.

  • Page 4: General Device Description

    8 scenes in each of the 3 predefined zones Pre-defined FX effects Integrated scheduler for time trigger Integrated proximity sensor 2 low-side switches and 2 dry inputs for integration into 3rd party systems. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 04 / 29...
  • Page 5 LIGHTDRIVE+ WiFi — Configuration Guide | General device description Delivery content Delivery content for the e:cue LIGHTDRIVE+ WiFi (AM477420038): e:cue LIGHTDRIVE+ WiFi Device plugs Safety instructions Welcome card Optional accessories Power Supply 15W 12V DIN rail (AM3137600HA) Product specifications Product specifi cations...
  • Page 6 0.14 ... 0.5 mm² fl exible: 0.2 ... 0.5 mm² WiFi RF frequencies: 2.4 ... 2.473 GHz, IEEE 802.11 b/g/n Sensors Proximity sensors for UI activation  content WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 06 / 29...

  • Page 7: Connectors And Interfaces

    10). Scene light stripes: — display color and brightness of the Scenes’ content. Zone light stripes: — display color and brightness of each running Scene. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 07 / 29...

  • Page 8: Dip Switches

    1 x Scene 1 button. Alternatively power down and up again the device. (0 = OFF position, 1 = ON position) DIP switches 1 ... 7 no function WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 08 / 29...

  • Page 9: Standard Use

    If the LIGHTDRIVE+ WiFi is in OFF Mode, you can change the appearance of the jog wheel illumination (pulsative or static) by turning the jog wheel or via LIGHTDRIVE+ app settings. Zones WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 09 / 29...
  • Page 10 Select the speed of the current effect with the jog wheel. The Tone stripe blinks with the selected speed of the effect. If the speed is zero, the Tone stripe is constantly alight. To save the adjustment save the Scene WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23...
  • Page 11 Set a LIGHTDRIVE+ WiFi to the Child mode if you would like the device to react on button presses of a Parent with the same Class ID. The setup of synchronization modes is done via the LIGHTDRIVE+ app, see „7.3.3 “Network”“ on page WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 11 / 29...
  • Page 12 If the previously configured network becomes available afterwards, the LIGHTDRIVE+ WiFi does not reconnect automatically. To reconnect to the belated available network, you need to restart the device (see WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 12 / 29...
  • Page 13 At the top, under Connected to you can see the LIGHTDRIVE+ device to which the app is currently to (= selected device in Connect page.). WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 13 / 29...
  • Page 14 Ethernet connection with 2 x Tx and 2 x Rx at port C (see “4.2 Connections” (page 08)) necessary. IP Address: Unique IP address; must be coordinated with the rest of the Ethernet network settings. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 14 / 29...
  • Page 15 LIGHTDRIVE+ WiFi remembers the WLAN configuration, the following two scenarios are to be considered: Initial WLAN configuration and Reconnection to configured WLAN. See „7.1 Onboarding“ on page WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 15 / 29...
  • Page 16 Set the number of DMX pixels (fixtures) you want to address in a row. The app automatically sums up the used amount of channels (Used DMX Channels). WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 16 / 29...
  • Page 17 Effect: Choose between the Effect types Sparkle and Chaser. Edit its color and its settings. To change the type of an existing Scene, you have to delete the content and add new content. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23...
  • Page 18 Date/ Time to apply the tablet’s settings. Daylight savings time: Enable to consider the change of summer time / winter time according to a specific time zone. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 18 / 29...
  • Page 19 Select the affected Scene. Or select Zone off to turn the Zone off when triggered: Scheduler type: Select the occurrence of the trigger: One time Every day Once a week Weekdays Date: Set the date of the One time trigger. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 19 / 29...
  • Page 20 General: you can set the relays depending on the Off-mode and Idle-mode. Zone A, B and C: you can set the relays depending on Scene selection. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 20 / 29...
  • Page 21 . The Idle and the Off mode do not interfere with an open access point. Configuration changes via app are still adopted. Tap the Save button to apply the settings. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 21 / 29...
  • Page 22 Define the color and brightness of the jog wheel when the device is in Off mode. The light stripes are turned off. Brightness of Inactive Light Stripes: Set the brightness of all light stripes that are not currently selected/ not active. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 22 / 29...

  • Page 23: Firmware Update

    Opens the EULA, the privacy policy statement and the 3rd party components for the LIGHTDRIVE+ app. Firmware Update In case a new firmware version is available for the LIGHTDRIVE+ WiFi: WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 23 / 29...

  • Page 24: Restart And Reset

    (access point is closed). If a WiFi network has not been configured, the access point opens. Example of use case: To reconnect to a belated available previously configured WLAN. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 24 / 29...
  • Page 25 LightDrive+ Light Stripes Activation time 30 s Deactivation time 60 s Color blue Jog Color in Off Mode Color: red Brightness of inactive light stripes Acoustic signal WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 25 / 29...
  • Page 26 —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 26 / 29...

  • Page 27: Troubleshooting

    13 Trouble shooting No function of the device. Check the power supply and that 12 V DC are available. Check the polarity of the power supply. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 27 / 29...
  • Page 28 LIGHTDRIVE+ WiFi and the LIGHTDRIVE+ app running. Go to Network. Here you can change the IP address of the LIGHTDRIVE+ WiFi. WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23 Sheet: 28 / 29...
  • Page 29 You can find the latest firmware versions either on www.ecue.com. For more information see „8 Firmware Update“ on page  content Please check for the latest updates and changes on the Traxon website. © 2022 TRAXON TECHNOLOGIES. ALL RIGHTS RESERVED. www.traxon-ecue.com WWW.TRAXON-ECUE.COM ©2023 traxon technologies. All rights reserved. Configuration Guide 02/23...
