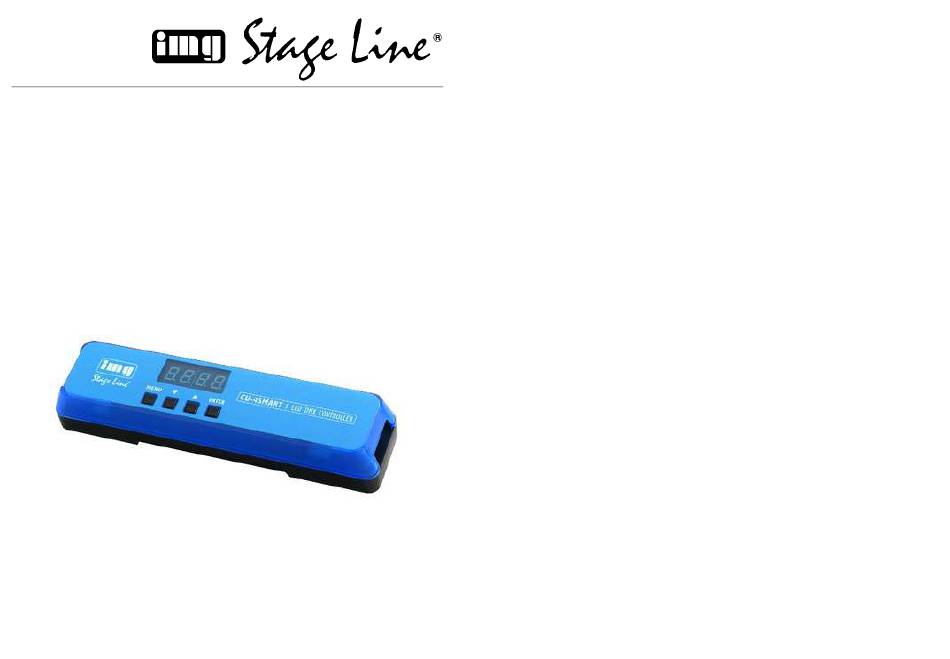

INSTRUCTION MANUAL

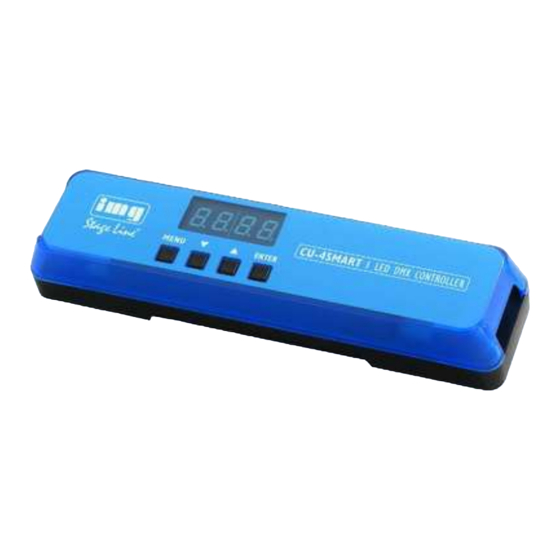

CU-4SMART
RGBW-LED-DMX Controller
Best. Nr.: 38.6090
IMG Stageline
LC-4DIM/ LC-4COL
1. Safety Introductions
Please read the User Manual carefully as it includes important information
regarding details of operation, maintenance and technical data. Keep this
manual with unit for future consultation.
WARNING!
● Avoiding any flammable liquids, water or metal objects enter into the unit.
● If any liquid spill on the unit, disconnect the power supply immediately.
● When serious operation problem happen, stop using the unit immediately
and contact your local dealer for service.
● Do not open the unit because there are no user serviceable parts inside.
● Never try to repair the unit yourself. Repairs by unqualified people could
cause damage or faulty operation. Please contact your nearest dealer for
any service.
CAUTION!
● After removed the package, make sure the unit is not damaged in any
way.
Don't use it with doubt and contact an authorized dealer.
● Never use the unit under the excessive humidity and a temperature over
40℃.
● Do not try to dismantle or modify the unit.
2. Features:
CU-4SMART is an ideal solution for dimming constant voltage LED
fixtures, especially LED strips. Multiple strips can be connected on
CU-4SMART and be dimmed individually (single color) or simultaneously.
• 4 independent constant voltage output. Each output can be dimmed
individually.
• Various input controlling protocol: 0-10v, DMX, DALI.
• User can setup CU-4SMART to Manual Mode, various channel modes
(RGB/RGBD,RGBW/RGBWD,D(4CH),WWWW,CW+WW,CT+D)
• Can adjust the white balance.
1
IMG Stageline
LC-4DIM/ LC-4COL
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the CU-4SMART and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IMG STAGELINE CU-4SMART

  • Page 1 • 4 independent constant voltage output. Each output can be dimmed individually. • Various input controlling protocol: 0-10v, DMX, DALI. • User can setup CU-4SMART to Manual Mode, various channel modes (RGB/RGBD,RGBW/RGBWD,D(4CH),WWWW,CW+WW,CT+D) • Can adjust the white balance. IMG Stageline...
  • Page 2 0-255. Press the “”button to setup. Or automatically exit menu mode without any change after 60 seconds. To go back to the functions without any change press the MENU button. IMG Stageline LC-4DIM/ LC-4COL IMG Stageline...
  • Page 3 ” button to setup or automatically exit menu mode without any RGBW change after 60 seconds. To go back to the last function without any 4C+D( change press the MENU button. C+W( CWWW/CCWW CT+D( Dimmer( WWWW IMG Stageline LC-4DIM/ LC-4COL IMG Stageline LC-4DIM/ LC-4COL...
  • Page 4 Version: show you the firmware version of the driver Press the MENU button up to when the is shown on the display. Pressing “ ” button, the firmware version will be showed on the Led display. E.g. V00,means version 00. IMG Stageline LC-4DIM/ LC-4COL IMG Stageline LC-4DIM/ LC-4COL...
