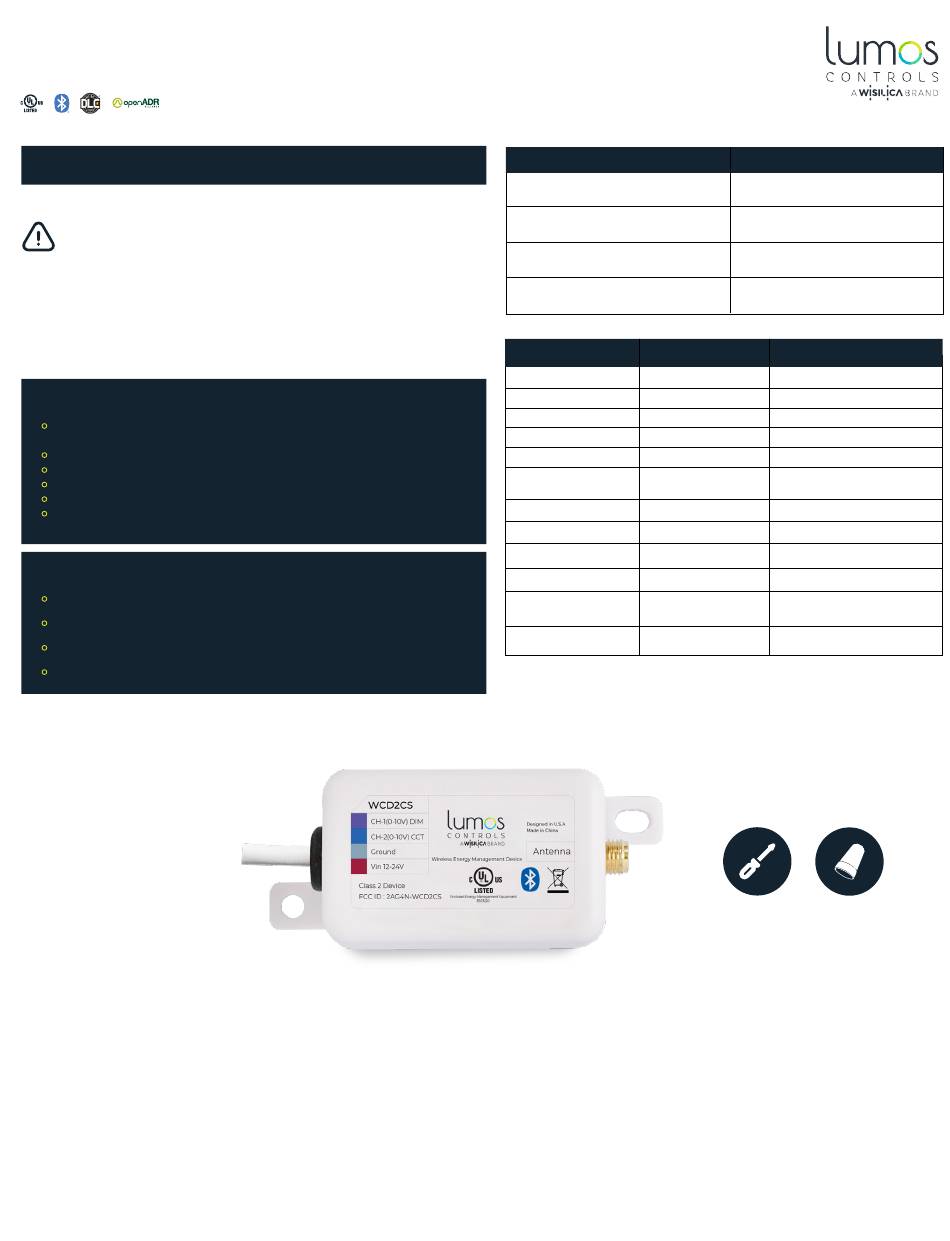

WiSilica Lumos Controls Radiar D10 Quick Start Sheet

Radiar D10
2 Channel DC Powered 0-10V Fixture Controller
FCC ID: 2AG4N-WCD2CS
INSTALLATION AND QUICK START SHEET
WARNING AND GUIDELINES!!!
Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING - Risk of Electric Shock
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors
All unused wiring must be capped
Product Overview
Radiar D10 is a 2 Channel
DC-powered 0-10V Fixture Controller
that provides advanced automation
to select preset scenes, schedule
combinations of light levels, dimming,
motion sensing, task tuning, and
more. It is compact, making it easy to
mount inside the lighting fixtures.
It is a part of the Lumos Controls
ecosystem, including controllers,
sensors, switches, modules, drivers,
gateways, and analytical dashboards.
INSTALLATION INSTRUCTIONS
Installation Steps
1. Turn off the power before wiring and installing the device
2. The controller with a compact formfactor can be installed anywhere within the light fixtures, or within junction boxes. The screw hole available on the controller can be
used to fix it firmly.
3. To power the controller, connect the Vin (Red) and Neutral (White color) of the controller to the he 12-24V DC and ground wires from power supply/ aux output of the driver
4. Connect the dimming wires of the controller to the dimming wires of the 0-10V driver
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Turn the power OFF at circuit breakers
before wiring
Observe the correct polarity of output
terminal
Value
Specifications
Input voltage
12-24VDC
Input current 18mA
Dimming output 0-10VDC
Output current 15mA
Dimming range 0-100%
Dimming curve linear (default) /
logarithmic
Frequency range 2402 - 2480MHz
Max output power 7dBm
-20 to 55°C(-4 to 131°F)
Operating temperature
Relative humidity 85%
Dimensions 2.6 x 1.15 x 0.9in
(66.7 X 29.2 X 22.4mm)
Flammability rating
UL 94 5VA
Don'ts
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't disassemble the products
-
Remarks
Rated input voltage
Typical current @12VDC
Tolerance: ±0.2V
Source current per channel
Conductive
L X W X H
Required tools &
supplies
Screwdriver Wirenuts
