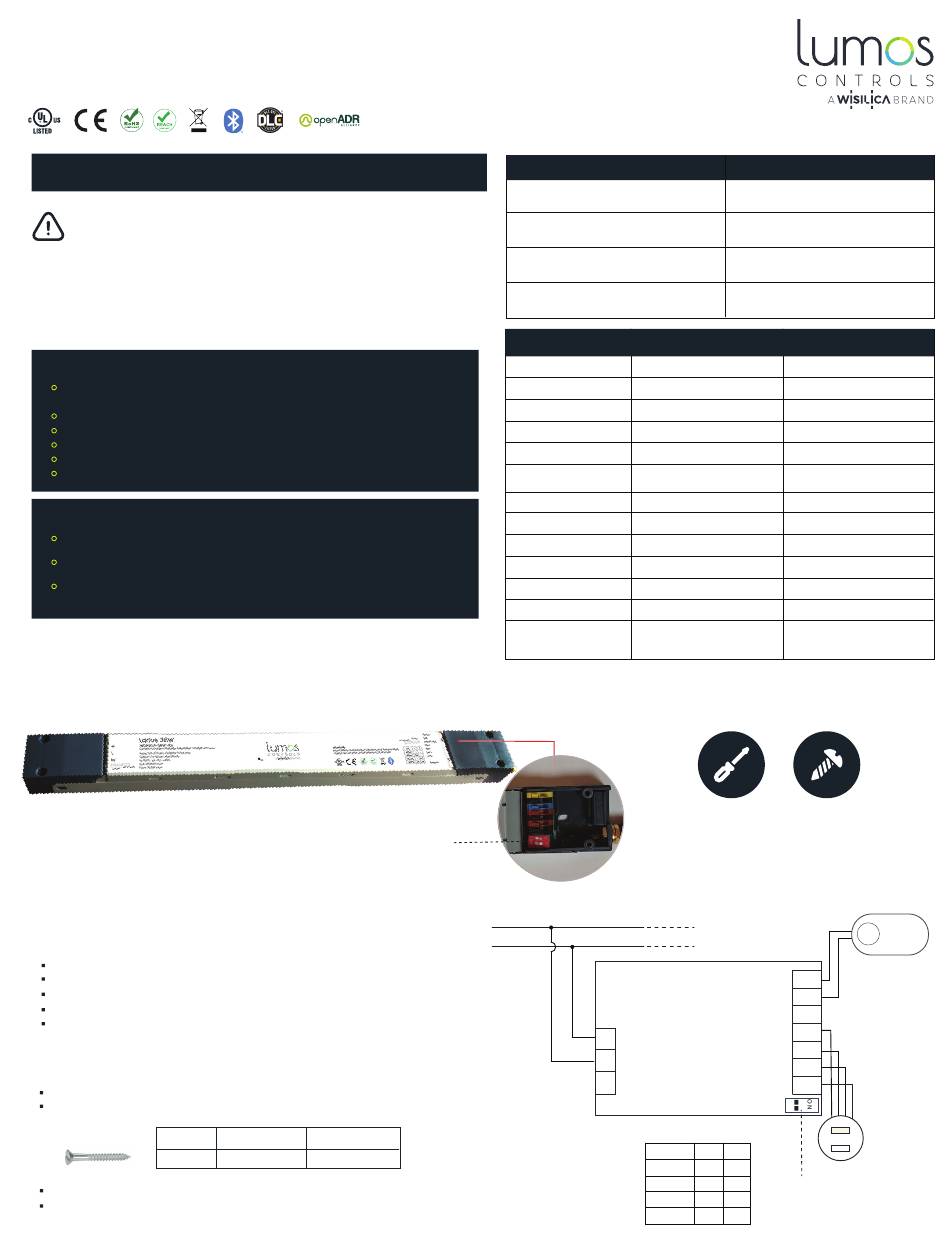

WiSilica lumos CONTROLS Ldrive 36W Quick Start Manual

Ldrive 36W
Dual-channel constant current LED driver
INSTALLATION AND QUICK START SHEET

WARNING AND GUIDELINES!!!

Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING : TURN THE POWER OFF AT THE CIRCUIT
BREAKER BEFORE WIRING
WARNING: Risk of Product Damage
Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding
equipment should be worn during all installation or servicing of the unit
Do not stretch or use cable sets that are too short or are of insufficient length
Do not modify the product
Do not mount near gas or electric heater
Do not change or alter internal wiring or installation circuitry
Do not use product for anything other than its intended use
WARNING - Risk of Electric Shock
Verify that supply voltage is correct by comparing it with the product
information
Make all electrical and grounded connections in accordance with the National
Electrical Code (NEC) and any applicable local code requirements
All wiring connections should be capped with UL approved recognized wire
connectors

PRODUCT OVERVIEW

Ldrive 36W is a dual-channel constant current LED driver with programmable output
current. It is a part of Lumos Controls ecosystem which includes controllers, sensors,
switches, modules, drivers, gateways, and analytical dashboards.

INSTALLATION INSTRUCTIONS

Wiring instructions

Check the polarity of the output terminals
The LED wiring should be kept as short as possible to ensure good EMI behavior
Sensor integration can be done using the 0-10V input and 12V auxiliary output
Secondary switching is not permitted
Incorrect wiring can damage the LED module

Installation steps

Method of installation varies based on the luminaire manufacturer
Turn the power off at the circuit breaker before wiring
Install the driver into the fixture using the screws
Head: CSK Slotted
Length
38mm
Power the driver connecting the Line and Neutral wires from the mains supply
Connect Warm, Cool channel from the LEDs to the driver
Dip Switch
Head Diameter Screw Diameter
8.3mm 3.7mm
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Turn the power OFF at circuit breakers
before wiring
Observe the correct polarity of output
terminal

Specifications

Value
Input voltage 120-277VAC
Input current 0.35A
Power consumption 0.5W
Typical efficiency 85%
Power factor 0.95
Output current 450-800mA
Output voltage 42VDC
Ambient temperature -20 to 45ºC(-4 to 113ºF)
Turn on delay <500ms
THD
<15%
Lifetime 50,000h
Tx power 8dBm
Dimensions 324 x 30 x 21mm
(12.8 x 1.2 x 0.8in)
connection to ensure system is operating properly.
L
N
LDRIVE-36W
N
L
PE
lout
Dip Switch
450mA
Configuration
550mA
700mA
800mA
Dont's
Don't use outdoors
Avoid input voltage exceeding
maximum rating
Don't dissemble the products
-
Remarks
_
_
_
120VAC/50Hz/full load
120VAC/50Hz/full load
800/700/550/450
Adjusted by dip switch
_
@Life-time 50,000h
120VAC/50Hz/full load
@50ºC
Conductive
L x W x H
Required Tools & Supplies
Screwdriver
Screws
Prior to mounting, turn on power and test
Turn off power again before mounting.
12V
Aux
GND
ADC
0-10V
WW+
WW-
CW+
CW-
1
2
LED
1 2
- -
Dip Switch
ON
-
- ON
ON ON
SENSOR
