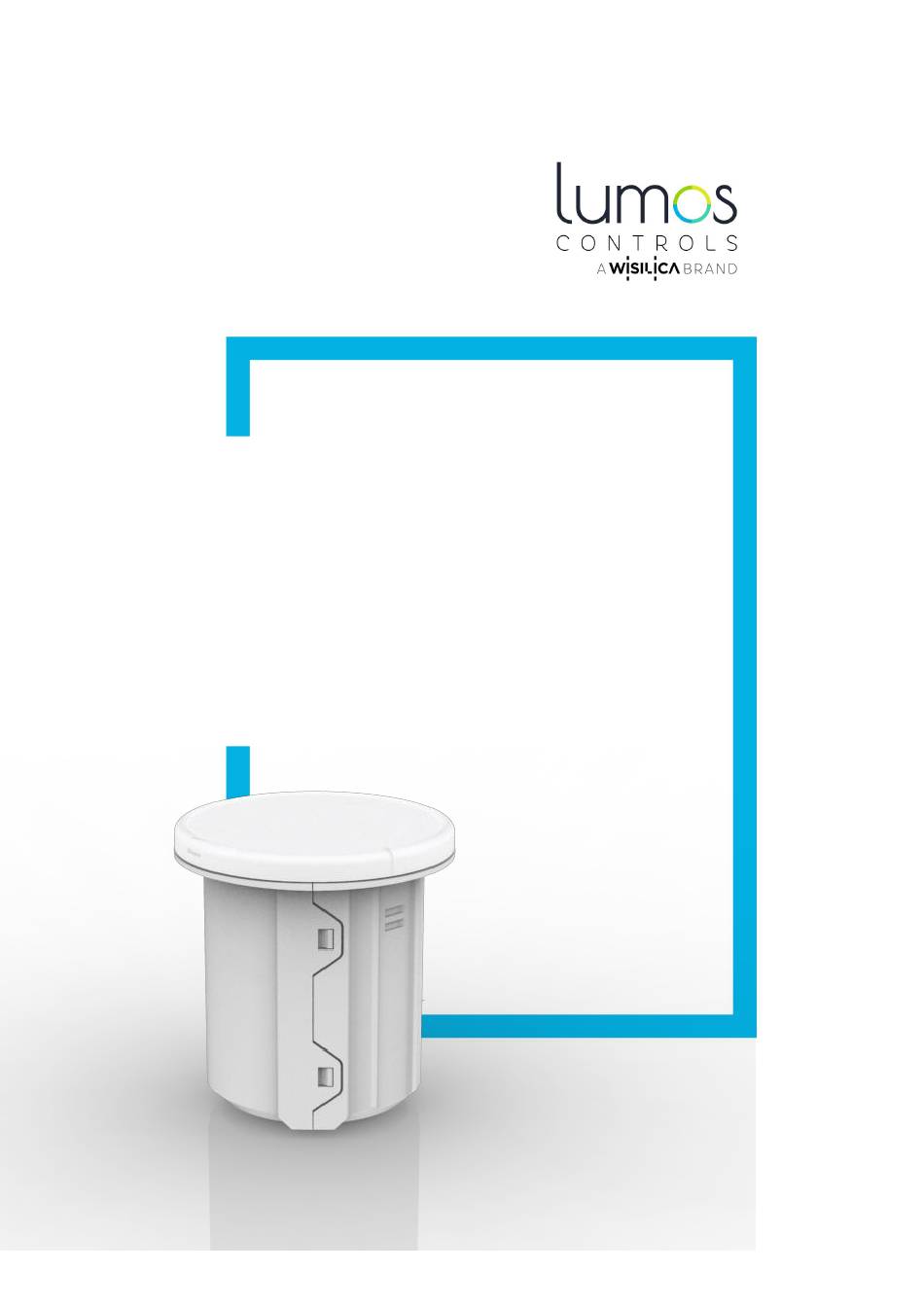

Cyrus AM
Cyrus AM is a BLE5.2 controllable high bay Microwave motion and
daylight sensor. This sensor operates on a 90-277VAC input
voltage range adopts a 5.8 GHz Microwave sensing technology for
accurate motion detection. It can be mounted at a maximum
height of 7m and provides a maximum detection range of 17m
diameter. The sensor can be mounted to the ceiling or at the
surface using ceiling or surface mount accessories.
Advertisement
Table of Contents
Related Manuals for WiSilica lumos CONTROLS Cyrus AM
Summary of Contents for WiSilica lumos CONTROLS Cyrus AM
- Page 1 Cyrus AM Cyrus AM is a BLE5.2 controllable high bay Microwave motion and daylight sensor. This sensor operates on a 90-277VAC input voltage range adopts a 5.8 GHz Microwave sensing technology for accurate motion detection. It can be mounted at a maximum height of 7m and provides a maximum detection range of 17m diameter.
-
Page 2: Table Of Contents
Cyrus AM Table Of Contents Features ................................3 Specifications ..............................3 Sensor Characteristics ............................ 4 Device Dimensions ............................4 Wire Description ............................... 5 Wiring Diagram ..............................5 Accessories ................................6 Warning ................................7 Ordering Information ............................. 7... -
Page 3: Features
Cyrus AM 1. Features High-bay motion and daylight sensor, with mounting height up to 7m BLE 5.2 based non flooding wireless communication 90-277VAC universal AC input voltage range 5.8GHz Microwave sensor for accurate motion detection Motion detection range up to 17m diameter ... -
Page 4: Sensor Characteristics
Cyrus AM Mechanical Typ. Unit Remarks 59.8 x 63.1 Diameter x Height Dimensions 2.3 x 2.5 inch Diameter x Height 85.0 In grams Weight In ounces 3. Sensor Characteristics 4. Device Dimensions Dimensions are in mm Case material: ABS, white color... -
Page 5: Wire Description
WIRE NAME DESCRIPTION SPECIFICATIONS Line 90-277VAC input line 24AWG, 600V, Black color Neutral AC input neutral 24AWG, 600V, White color Wiring Diagram Cyrus AM is powered via AC supply to communicate sensor data wirelessly with other WiSilica BLE mesh devices. 90-277VAC... -
Page 6: Accessories
Cyrus AM 7. Accessories Cyrus AM can be mounted to ceiling or at surface using the following mounting accessories. a. Cyrus AM with ceiling mount accessory Dimension: 89.8 x 68.2 mm (Top Diameter x Height) Case Material: ABS, White colour Cyrus AM with surface mount accessory Dimension: 110 x 71.2 mm (Bottom Diameter x Height) Case Material: ABS, White colour... -
Page 7: Warning
Cyrus AM 8. Warning 1. Ensure that electricity supply is switched off completely before installation or servicing the product. 2. To prevent the device from any defect, please handle and store it with care. 3. Do not open or disassemble the product. 4. - Page 8 Cyrus AM Version 1.0...
