Summary of Contents for AUSTRACK CAMPERS TANAMI X15A

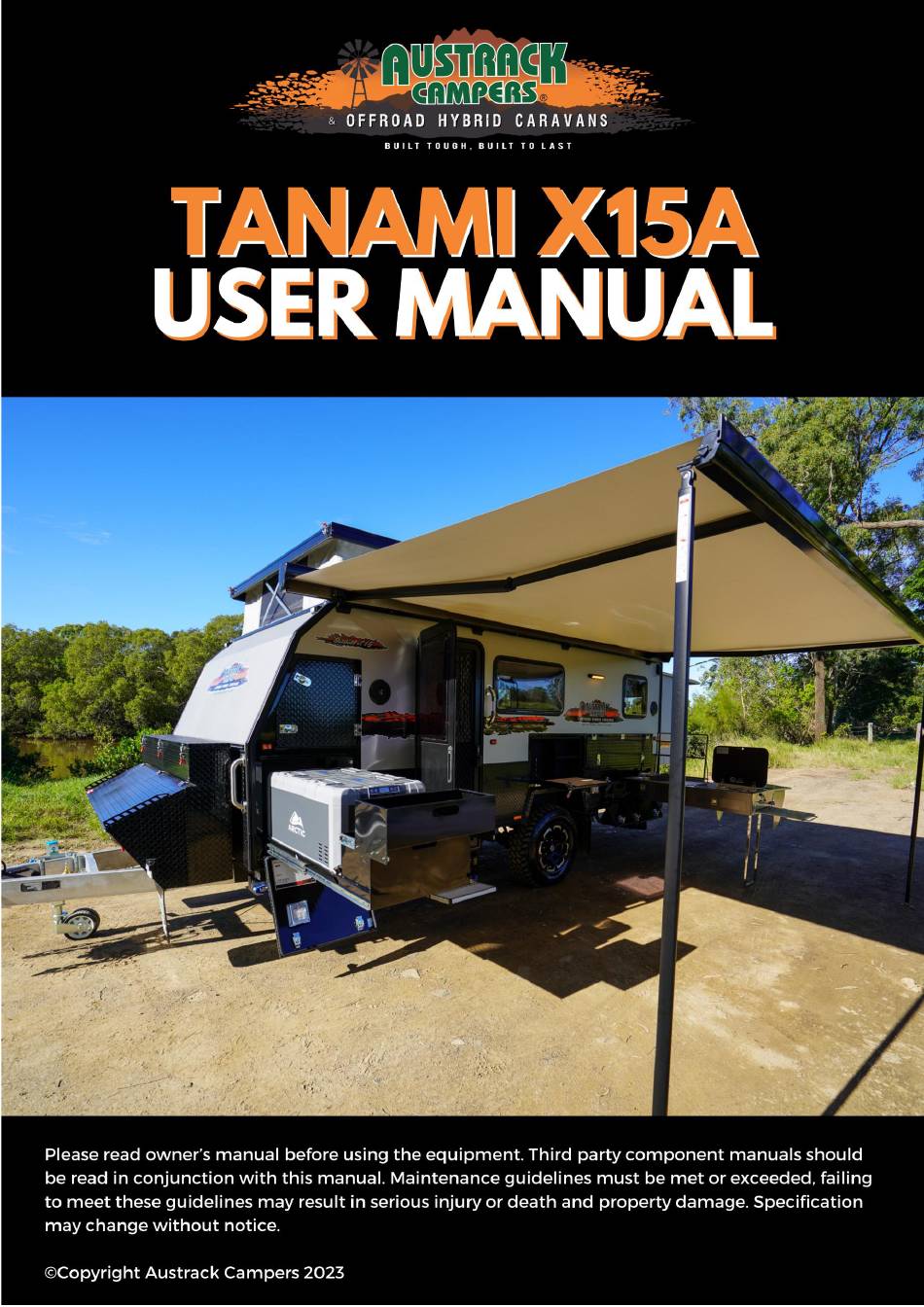

- Page 1 Head Office – 07 5498 388 Brisbane North – 07 5408 7111 Brisbane South – 07 3112 7868 Newcastle NSW – 02 4006 6833 Campbellfield VIC – 03 9357 5081 Kewdale WA – 08 6252 7007 Precision Motors Armidale NSW – 02 6772 5866 Rising Sun Townsville – 07 4779 0211...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..........2 Water Pump ..........16 Store Locator ........... 3 Truma Ultra-Rapid Hot Water System ..17 Head Office ..........3 How to light hot water system on gas ..17 Caboolture Showroom ........ 3 How to light hot water system on 240 V .. -
Page 3: Store Locator
Store Locator Head Office 07 5498 3888 sales@austrackcampers.com.au Mon – Fri 9am-5pm Scan for Map Caboolture Showroom 73 Lear Jet Drive Caboolture, QLD 4510 07 5408 7111 caboolture@austrackcampers.com.au Mon – Fri 9am-5pm Sat 9am-3pm Rocklea Showroom 7 Collinsvale Street Rocklea, QLD 4106 07 3112 7868 rocklea@austrackcampers.com.au Mon –... -
Page 4: Re-Sellers And Suppliers
Re-sellers and suppliers Rising Sun Townsville – Re-seller 35 Bowen Road Rosslea, QLD 4812 07 4779 0211 Precision Motors Armidale – Re-seller 101/107 Barney Street Armidale, NSW 02 36772 5866 Redarc www.redarc.com.au Technical support 1300 733 272 Projecta www.projecta.com.au Technical support 1800 422 422 Truma hot water systems https://www.leisure-tec.com.au/services/ Technical support 1300 072 018... -
Page 5: Warranty T&C's
The original purchaser shall make no claims or be eligible for any claims on behalf of the new owner. 1.7 Warranties do not extend to any products purchased from Austrack Campers that are used in hire schemes or as rentals. - Page 6 Zips and mesh or screens are not covered. 2.4 In addition to Austrack Campers’ warranty, the customers may also be covered by other rights and remedies of Consumer Law in relation to the goods and/or services to which this warranty relates.
-
Page 7: General Safety Introduction
This manual is supplied as a reference to required maintenance of your new Austrack Campers Hybrid offroad camper. Failure to use and maintain the product in accordance with what is outlined in this manual may affect your warranty. -
Page 8: Load Distribution
Load Distribution When heading away on your next big adventure it is important to load your caravan correctly to distribute weight evenly and achieve a suitable ball weight load and prevent loading in a manner that can cause a caravan to sway and/or roll excessively left and right. The optimum ball weight on a caravan is between 8% and 12% of the total caravan weight. -
Page 9: Maintenance Schedule
Maintenance Schedule Head Office – 07 5498 388 Brisbane North – 07 5408 7111 Brisbane South – 07 3112 7868 Newcastle NSW – 02 4006 6833 Campbellfield VIC – 03 9357 5081 Kewdale WA – 08 6252 7007 Precision Motors Armidale NSW – 02 6772 5866 Rising Sun Townsville – 07 4779 0211... -
Page 10: Specifications
Specifications Fully welded Aluminium frame construction with Royal silver aluminium Structure & Finish composite panel & gloss black aluminium checker plate. Fully Welded aluminium wall frame, aluminium composite panelling, Hot Construction dipped galvanised Chassis & Drawbar. Hot dipped galvanised Inside & Outside 150 x 50 x 4mm. Full RHS box chassis Drawbar &... - Page 11 Completely plumbed from gas bottles to kitchen with dual bottle change over Gas Lines valve & gas certification certificate. Additional bayonet gas connection at rear of camper for a BBQ gas supply. 2 x 120L Food grade poly water tanks & 1 X 80L plumbed grey water tank & Water Storage system.
-
Page 12: Electrical System
Electrical System Battery Management System The Tanami is equipped with the Redarc Manager30 Battery Management System (BMS). The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it’s a 240 V charger, a MPPT solar regulator, a battery isolator, a load disconnect controller, all with a remote battery monitor. -
Page 13: Inverter
Inverter The Tanami is also equipped with a Redarc 2000 W pure sine wave inverter and automatic change- over relay. This means that no matter where you are, you are able to run your 240 V appliances off the hybrid! If you are free camping, you will need to turn on the inverter, and you are limited to 2000 W appliances. -
Page 14: Extra Solar Input
Extra Solar Input Also included on the Tanami is a solar input on the rear driver’s side of the hybrid. This is for connection to an external solar panel to supplement the 400 W of solar on the roof. This input requires a regulated panel to be connected, use of an un-regulated panel may cause damage to the batteries in the hybrid. -
Page 15: Fuse Box
Fuse box The fuse box is located under the seat inside the Tanami. Each of the fuses are listed on the inside of the fuse box lid and will have a red light next to them if they need replacing. It is highly recommended to keep a mix pack of spare fuses in the hybrid in case of tripping. -
Page 16: Water System
Water System The Tanami is equipped with 2 x 120 L fresh water poly tanks with stainless steel guard and 1 x 80 L grey water poly tank with stainless steel guard. All 3 tanks have taps and bungs on the bottom of the tank for easy draining and rinsing. -
Page 17: Truma Ultra-Rapid Hot Water System
Truma Ultra-Rapid Hot Water System The Tanami has a Truma ultra-rapid gas/electric hot water system installed. This system is designed to run off either the plumbed gas in the hybrid or from 240 V mains power. For detailed instructions, please see the instruction manual supplied in the hybrid. How to light hot water system on gas •... -
Page 18: Braking Systems
Braking Systems Electric Brakes The Tanami comes fitted with electric brakes which require a brake controller installed into the towing vehicle that can be controlled from the driver’s seat. There are many systems available which can either be permanently installed into the tow vehicle or Bluetooth units that are mounted to the trailer and have a remote to control from the driver’s position. -
Page 19: Trailer Breakaway
Trailer Breakaway The Tanami comes fitted with a Breakaway switch. The steel cable attached to the drawbar switch is designed to attach to a solid part of your vehicle. In the event of a trailer disconnection, this will pull out the pin from the switch and activate the trailer brakes. The brakes will stay locked on as long as the pin is removed from the drawbar switch and there is power in the battery system of the hybrid. -
Page 20: Setting Up Campsite
Setting up campsite When setting up your campsite it is important to have the camper set up close to level but keeping a small run off to the rear of the van to ensure water does not pool on the roof. Picking a spot that is relatively level, gets sun during the day and is not under any large tree’s, especially Gum trees, is important. -
Page 21: Gas System
Gas System The Tanami is fitted with plumbed gas, with the gas bottle holders mounted inside the front toolbox. The gas hoses have the LCC27 connection and requires the matching gas bottle to be able to use the system. The regulator has a one-way valve on top to allow for easy switching of the gas bottles. The valve must be pointing in the direction of the gas bottle being used for the gas to flow through the system. -
Page 22: Outside Shade
Outside Shade Electric awning The Tanami range is fitted with an electric awning as standard. This is controlled by the 3-way awning rocker switch in the control panel. It is important to use the legs to support the awning when opening, closing and when the awning is fully extended. -
Page 23: Toilet
Toilet The Tanami is fitted with the Thetford C402-2 toilet. This has an inbuild 15L flush tank and 19L waste tank for longer trips. A tester set of chemicals is provided in the hybrid, and it is recommended to use only the Thetford chemicals and toilet paper. Filling the flush tank •... -
Page 24: Use Of The Toilet
• Slide the waste tank back into its original position via the access door. o Note! Never use force if you cannot get the tank back into place easily. This may cause serious damage. • Make sure that the waste tank is secured with the safety catch. Shut the access door and lock Use of the toilet •... -
Page 25: Preparing The Toilet For Storage
Preparing the toilet for storage It is important that you follow the instructions below if you do not expect to use the Thetford toilet for a long period. • Completely empty the water tank through the drain tube, which also serves as a level indicator. -
Page 26: External Kitchen
External Kitchen Your Tanami is equipped with a quality stainless steel kitchen complete with a Dometic 3 burner cook top, sink and drying rack. The kitchen is located at the rear passenger side of the camper and can be accessed by opening the access hatch, once the hatch is open you will see 2 spring &... - Page 27 Now just loosen the nuts to lower the legs to the ground, keep the legs angled at around 45 degrees then tighten the nuts. Once again take hold of the top handle (2) and gently lift the kitchen slide, allowing the legs to move forward, this may take a couple of goes until you get your kitchen nice and level.
-
Page 28: Air Conditioner
Air Conditioner The Tanami range of hybrids comes fitted with the Dometic Harrier Lite air conditioner. This is installed to work off the 240 V system only, meaning that it will not work unless the hybrid is connected to shore power; it will not work off the installed inverter. The air conditioner will work from a generator connected through the 15 A input on the side of the hybrid. -
Page 29: Tv Antenna / Tv / Dvd
TV antenna / TV / DVD The hybrid is fitted with an Omnidirectional TV antenna with booster, a Digital TV, and a FM/CD/DVD/Bluetooth capable stereo. Watching Free-to-Air TV • Make sure “cigi sockets” switch is on • Turn on TV with the remote •... -
Page 30: Condensation / Mould
Condensation / mould Condensation is a normal part of living in Australia, and this is highlighted when camping. The temperature difference inside and outside a hybrid camper can be quite significant, and with the moisture in the Australian air and the smaller living area of a hybrid camper, condensation can build up overnight. -
Page 31: Troubleshooting
Troubleshooting Category Issue Troubleshooting Steps • Electrical - AC AC not turning on Check mains power is connected • Check RCD not tripped on incoming power supply • Check RCD not tripped in hybrid • Replace remote batteries • Contact Dometic service centre for more advice •... - Page 32 • Electrical – Inverter switches off when in Too much power being drawn from Inverter inverter, ensure total appliance wattage is under 2000 w Electrical – Any other error Inverter • Water No water to taps Make sure water pump is on •...
- Page 33 • spark from cooktop Make sure power cable is plugged in for the ignition ignition • Make sure 12 v power is turned on in the control panel • Cooktop not staying lit Make sure there is enough gas in the bottle •...
