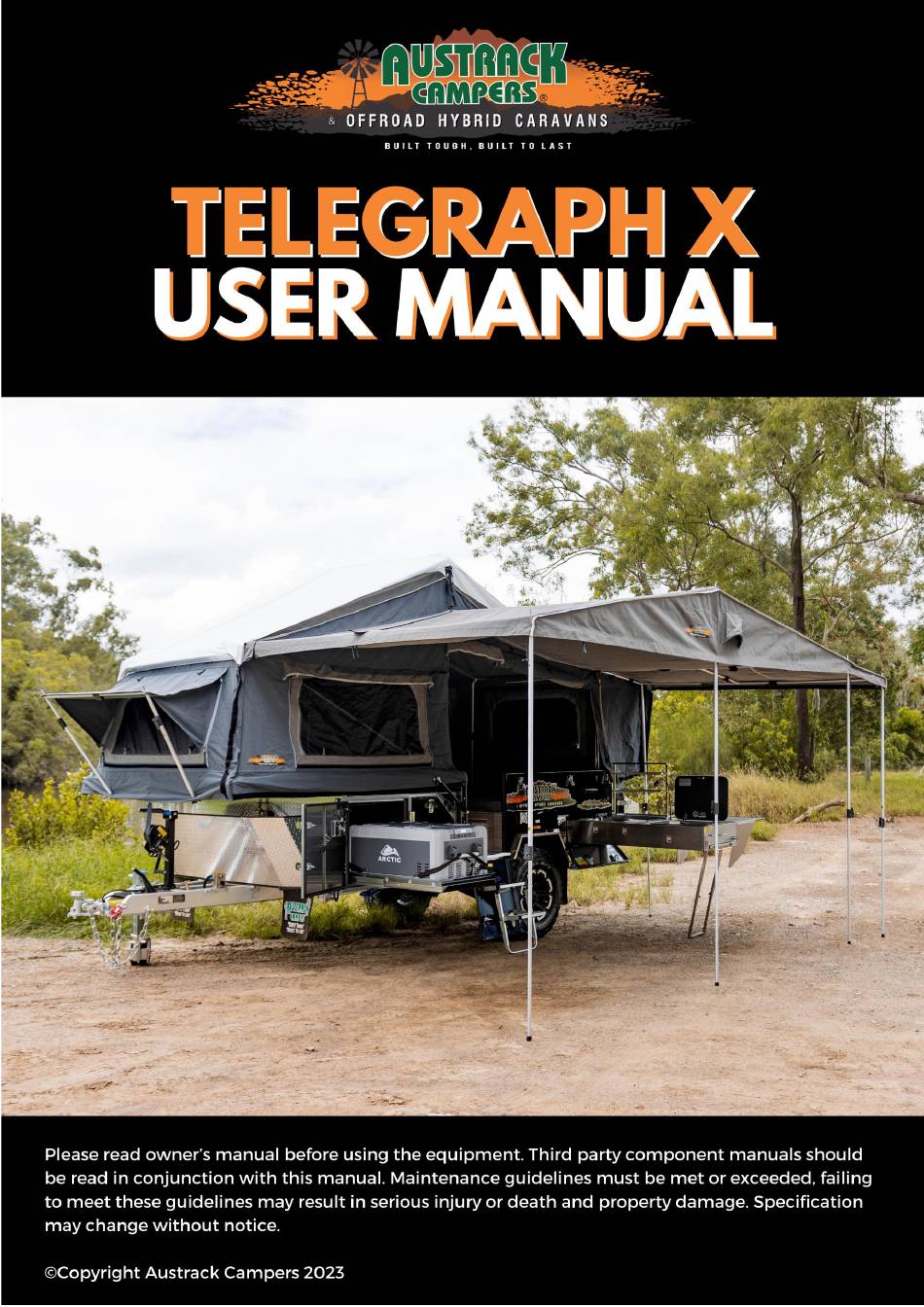

- Page 1 Head Office – 07 5498 388 Brisbane North – 07 5408 7111 Brisbane South – 07 3112 7868 Newcastle NSW – 02 4006 6833 Campbellfield VIC – 03 9357 5081 Kewdale WA – 08 6252 7007 Precision Motors Armidale NSW – 02 6772 5866 Rising Sun Townsville – 07 4779 0211...
-
Page 2: Table Of Contents
Table of contents Table of contents ..........2 Inverter ............. 12 Store Locator ........... 3 Mains Power ..........13 Head Office ..........3 Control Panel ..........13 Caboolture Showroom ........ 3 Water system ..........14 Rocklea Showroom ........3 Water Pump ..........14 Newcastle Showroom ......... -
Page 3: Store Locator
Store Locator Head Office 07 5498 3888 sales@austrackcampers.com.au Mon – Fri 9am-5pm Scan for Map Caboolture Showroom 73 Lear Jet Drive Caboolture, QLD 4510 07 5408 7111 caboolture@austrackcampers.com.au Mon – Fri 9am-5pm Sat 9am-3pm Rocklea Showroom 7 Collinsvale Street Rocklea, QLD 4106 07 3112 7868 rocklea@austrackcampers.com.au Mon –... -
Page 4: Re-Sellers And Suppliers
Re-sellers and suppliers Rising Sun Townsville – Re-seller 35 Bowen Road Rosslea, QLD 4812 07 4779 0211 Precision Motors Armidale – Re-seller 101/107 Barney Street Armidale, NSW 02 36772 5866 Redarc www.redarc.com.au Technical support 1300 733 272 Projecta www.projecta.com.au Technical support 1800 422 422 Truma hot water systems https://www.leisure-tec.com.au/services/ Technical support 1300 072 018... -
Page 5: Warranty T&C's
The original purchaser shall make no claims or be eligible for any claims on behalf of the new owner. 1.7 Warranties do not extend to any products purchased from Austrack Campers that are used in hire schemes or as rentals. - Page 6 Zips and mesh or screens are not covered. 2.4 In addition to Austrack Campers’ warranty, the customers may also be covered by other rights and remedies of Consumer Law in relation to the goods and/or services to which this warranty relates.
-
Page 7: General Safety Introduction
This manual is supplied as a reference to required maintenance of your new Austrack Campers offroad camper. Failure to use and maintain the product in accordance with what is outlined in this manual may affect your warranty. -
Page 8: Load Distribution
Load Distribution When heading away on your next big adventure it is important to load your camper correctly to distribute weight evenly and achieve a suitable ball weight load and prevent loading in a manner that can cause a caravan to sway and/or roll excessively left and right. The optimum ball weight on a caravan is between 8% and 12% of the total camper weight. -
Page 9: Maintenance Schedule
Maintenance schedule Head Office – 07 5498 388 Brisbane North – 07 5408 7111 Brisbane South – 07 3112 7868 Newcastle NSW – 02 4006 6833 Campbellfield VIC – 03 9357 5081 Kewdale WA – 08 6252 7007 Precision Motors Armidale NSW – 02 6772 5866 Rising Sun Townsville – 07 4779 0211... -
Page 10: Specifications
Specifications Finish Baked enamel metallic finish with polished stainless steel trim. Fully Welded complete to rear hot dipped galvanised full RHS box drawbar Drawbar & Chassis 120 x 50 x 4.0mm. Full RHS box chassis 100 x 50 x 3.0mm. ARK XO Series 3.5t Off-road Coupling. - Page 11 Queen size medium density foam mattress, dining area that converts to Bedding & Dining another double bed. Removable dining table with adjustable legs. Slide out stainless steel kitchen with utility drawers, large sink & AGA approved multi burner stove. Foldaway kitchen shelving unit. Extension bench Kitchen and large preparation bench.
-
Page 12: Electrical System
Electrical System Batteries The Telegraph Camper trailer is fitted with 2 x 120 Ah AGM batteries. These batteries are designed to be maintained at voltages between 12.0 V and 14.4 V. Should the batteries become discharged below 12.0 V, they will begin to degrade. The longer they are left discharged or the more times they are discharged below this point, the less likely they will be to hold charge. -
Page 13: Mains Power
When using the inverter, especially with high wattage appliances there will be a temporary drop in the voltage of your batteries, this is due to the high current being drawn by the system. This will increase back to normal once the appliance has been switched off. When not in use, the inverter should be switched off using the button on the control panel. -
Page 14: Water System
Water system The Telegraph is fitted with 1 x 120 L and 1 x 50 L fresh water poly tanks with stainless steel guard. Both tanks have bungs and taps on the bottom for the tank for easy draining and rinsing. The water tanks are not interconnected, you can change between the tanks by rotating the handle in the rear compartment 180°. -
Page 15: Country Comfort Hot Water System
Country Comfort Hot Water System The Telegraph camper comes with the Country Comfort portable LPG hot water system as a standard inclusion. This is designed to work with the gas and water fittings on the drawbar of the camper to provide a hot shower for use in the ensuite. - Page 16 2. Insert two ‘D’ batteries into the ‘battery box’ and close the battery box lid. Note: The orientation of the battery terminals. Positive down at the back. Negative down at the front. For garden hose water supply use, install a male garden hose attachment to allow for a ‘snap on’ connection (not supplied) to a garden hose.
-
Page 17: Operating The Hot Water System
Operating the hot water system 1. Hang the appliance on a suitable vertical surface by the top hanger attached to the back cover of the heater. 2. The ‘gas inlet’ will be used to connect to the gas hose regulator. 3. -
Page 18: Operating The Hot Water System
4. Attach to other end of the flexible shower hose to the “water OUT connection (middle connection) on the water heater. Do not over tighten. Note that you can also apply Teflon tape to this threaded connection to avoid leaks. 5. - Page 19 4. Switch LPG Water Heater ON using the rocker switch located at the bottom on the LPG Portable Water Heater. Do this by having the red dot pushed in. 5. Ensure that the button on the shower rose is in the “Off” position. 6.
-
Page 20: Braking Systems
Braking Systems Electric Brakes The Telegraph comes fitted with electric brakes which require a brake controller installed into the towing vehicle that can be controlled from the driver’s seat. There are many systems available which can either be permanently installed into the tow vehicle or Bluetooth units that are mounted to the trailer and have a remote to control from the driver’s position. -
Page 21: Handbrake
Handbrake The handbrake is operated mechanically by means of a cable. The cable attaches to the backing plate and when the handbrake is applied the cable creates a force on the primary and secondary brake shoe. This causes them to spread until they make contact with the brake drum surface. The cable adjuster needs to provide enough tension that the handbrake is 1/3 raised when the camper is unloaded. -
Page 22: Setting Up Campsite
Setting up campsite Picking a spot that is relatively level, gets sun during the day and is not under any large tree’s, especially Gum trees, is important. If you are free camping, do not set up too close to a river or in an area that is prone to flash flooding. -
Page 23: Gas System
Gas System The Telegraph is fitted with plumbed gas, with the gas bottle holders mounted inside the front stone guard. The gas hoses have the LCC27 connection and requires the matching gas bottle to be able to use the system. The regulator has a one-way valve on top to allow for easy switching of the gas bottles. The valve must be pointing in the direction of the gas bottle being used for the gas to flow through the system. -
Page 24: Camper & Canvas Care
Camper & Canvas Care Seasoning the canvas The camper trailer canvas is pre-seasoned; however, this is before the camper has been assembled and sewn together. This means that before you take the camper out for the first time, it will need to be seasoned to avoid any leaks. -
Page 25: External Kitchen
External Kitchen Your Telegraph is equipped with a quality stainless steel kitchen complete with a Dometic 3 burner cook top, sink and drying rack. The kitchen is located at the rear passenger side of the camper and can be accessed by opening the access hatch, once the hatch is open you will see 2 spring &... - Page 26 Now just loosen the nuts to lower the legs to the ground, keep the legs angled at around 45 degrees then tighten the nuts. Once again take hold of the top handle (2) and gently lift the kitchen slide, allowing the legs to move forward, this may take a couple of goes until you get your kitchen nice and level.
-
Page 27: Condensation / Mould
Condensation / mould Condensation is a normal part of living in Australia, and this is highlighted when camping. The temperature difference inside and outside a camper can be quite significant, and with the moisture in the Australian air and the smaller living area of a camper, condensation can build up overnight. While this can be quite disconcerting, it is totally normal. -
Page 28: Troubleshooting
Troubleshooting • Category Issue Troubleshooting Steps • Electrical – Not Charging from 240 V Check mains power is connected • 12 v Check RCD not tripped on incoming power supply • Check RCD not tripped in camper • Check charger is plugged into power point next to batteries and turned on •... - Page 29 • Water No water to taps Make sure water pump is on • Make sure there is water in the tank selected • Swap water tank used • Let tap run for approx. 20 secs to clear the air from the lines •...
