- Page 1 RY-HARNESS.HD HARLEY-DAVIDSON RADIO INTERFACE HARNESS FOR AMPLIFIERS ARNÉS DE INTERFAZ DE RADIO HARLEY-DAVIDSON PARA AMPLIFICADORES OWNER'S MANUAL ENGLISH | ESPAÑOL MANUAL DE USUARIO Harley-Davidson name is trademark of Harley-Davidson, Inc. or its affiliates or licensors.
- Page 2 RY-HARNESS.HD HARLEY-DAVIDSON RADIO INTERFACE HARNESS FOR AMPLIFIERS ARNÉS DE INTERFAZ DE RADIO HARLEY-DAVIDSON PARA AMPLIFICADORES This is a T harness kit that will help you Este es un kit de arnés en T que lo ayudará more easily installation your instalar más...
- Page 3 TOTALMENTE COMPATIBLE CON FULLY COMPATIBLE WITH 2014-UP LAS MOTOS STREET GLIDE, ROAD STREET GLIDE, ROAD GLIDE, ELECTRA GLIDE, ELECTRA GLIDE, ULTRA GLIDE, ULTRA HARLEY DAVIDSON HARLEY DAVIDSON DE 2014 EN MOTORCYCLES WITHOUT FACTORY ADELANTE SIN AMPLIFICADOR AMPLIFIER. DE FÁBRICA. INSTALLATION: INSTALACIÓN: **ATTENTION** *ATENCIÓN**...
- Page 4 RY-HARNESS.HD 3. Disconnect the main harness (Male 3. Desconecte el arnés principal (conector macho) de la radio y conéctelo al lado del connector) from radio and connect this conector hembra del arnés en T, y el otro to the female connector side of the T lado del arnés que tiene el conector...

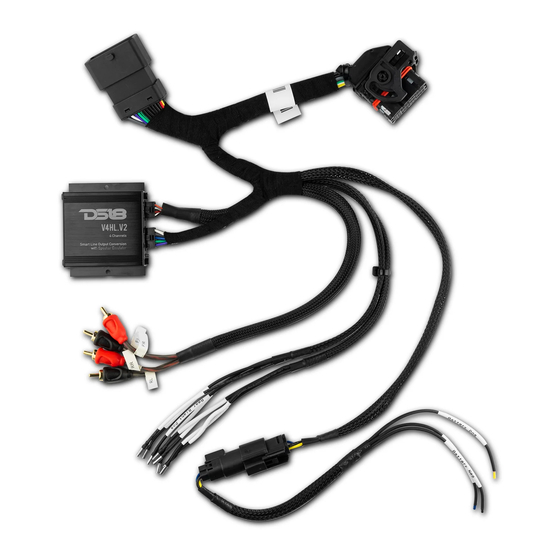

- Page 5 HARNESS DESCRIPTION: Radio Female Connector, connect this to the Factory radio harness from the bike side. Hi to low converter with speaker emulator module (V4HL.V2). DSP power harness, connect this to power up a DSP optional, or us the remote to turn on the aftermarket amplifier. RCA Audio Output, connect this to the DSP/Amplifier low level input.
- Page 6 RY-HARNESS.HD DESCRIPCIÓN DEL ARNÉS: Conector hembra de radio, conéctelo al arnés de radio de fábrica desde el lado de la motocicleta. Convertidor de alto a bajo con módulo emulador de altavoz (V4HL.V2). Arnés de alimentación DSP, conéctelo para encender un DSP opcional, o use el control remoto para encender el amplificador.
- Page 7 HARLEY-DAVIDSON PARA AMPLIFICADORES We LIKE IT LOUD WARRANTY GARANTÍA Please visit our website DS18.com for more information Visita nuestra página web DS18.com para obtener más on our warranty policy. información sobre nuestra garantía. We reserve the right to change products and specifications Nos reservamos el derecho de cambiar productos y at any time without notice.
