Summary of Contents for DS18 DSP8i

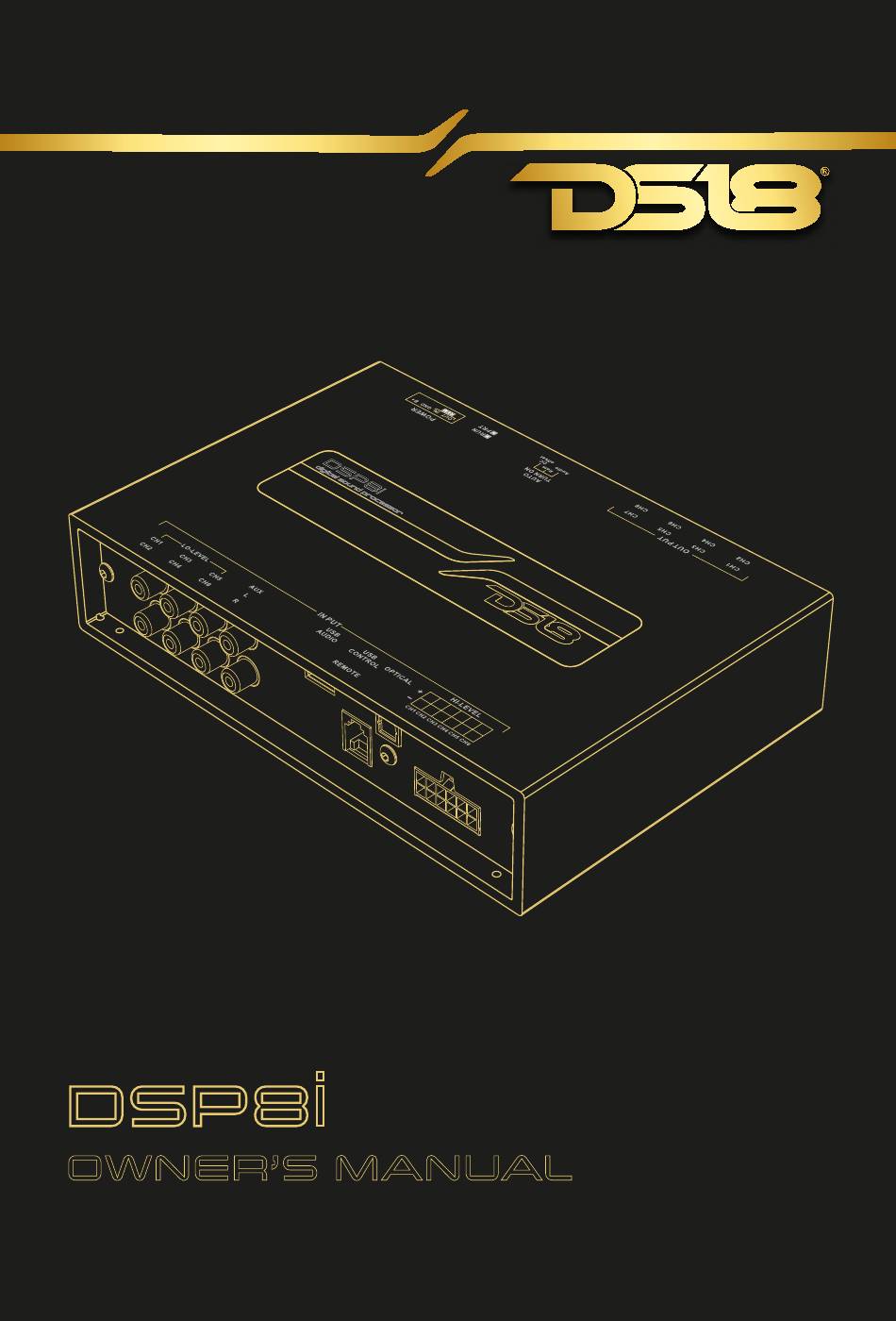

- Page 1 OWNER’S MANUAL Before using this product, please read the instructions carefully and keep it for reference.
-
Page 3: Included In Box
CONTENTS WARNING 1. To prevent short circuit, please keep the 1. Pack List device away from water or wet places. 2. Interface Introduction 2. If water or any other liquid soak into the 3. Software Introduction device, cut off the power immediately, and call our service engineer of inspection, in case of 4. - Page 4 OPERATIONS & CONTROLS Low Level Signal Output Terminal Support maximum 8 channels Auto Turn ON/OFF Control Model Options For auto turn on/off mode, it offers three options: DC OFFSET/REM/AUDIO. REM: When switched to REM, the remote control output terminal of the OEM source unit is connected to the REM IN terminal of the DSP / amplifier, which is the preferred starting method.
-
Page 5: Bluetooth Audio Streaming
Using the DSP8i remote control, select BT source and adjust the desire volume. Now. start to stream or play any kind of audio from your device. On the DSP8i Remote Control you can use the forward and backward buttons to control your music. - Page 6 INSTALLATION DIAGRAM Using Aftermarket Radio with RCA low-level signal. Use “REM” BATTERY Using Factory “OEM” Radio with HI-Level speaker signal. Use “Audio or DC O set” BATTERY...
- Page 7 WIRED MULTI FUNCTION CONTROLLER With the remote controller connected to the DSP, you can enjoy the following operation to the DSP: 1. Main volume control, Slave volume control, Mute 2. Switch between the last song and next song from Bluetooth/USB Drive 3.
-
Page 8: Software Introduction
SOFTWARE INTRODUCTION 1. Software download and installation instructions Download tuning software from the website ds18.tools Follow the instructions to complete installation and double click the shortcut icon to start operations as shown below. 2. Important Instructitons for Software Installation Software Interface Introductions 1. - Page 9 SOFTWARE INTERFACE INTRODUCTIONS Input mix switch settings, Input level settings, synchronous source switching during mixing. The system will automatically identifies the model of the DSP products on which is connected and automatic shields redundant channel display. EQ curve display: including level, channel EQ curve, main EQ curve, and simulated actual output summation curve.
-
Page 10: Troubleshooting
TROUBLESHOOTING Check all the cables and ports all perfectly safe before you switch on the power. Common troubleshooting procedure: FILES SUPPORTED... -
Page 11: Specifications
SPECIFICATIONS The contents of this manual and the specifications of this product are subjet to change without notice. DS18 Company reserves the right to make changes to the specifica- tions and materials contained therein without notice. - Page 12 FOR MORE INFORMATION PLEASE VISIT DS18.COM...
