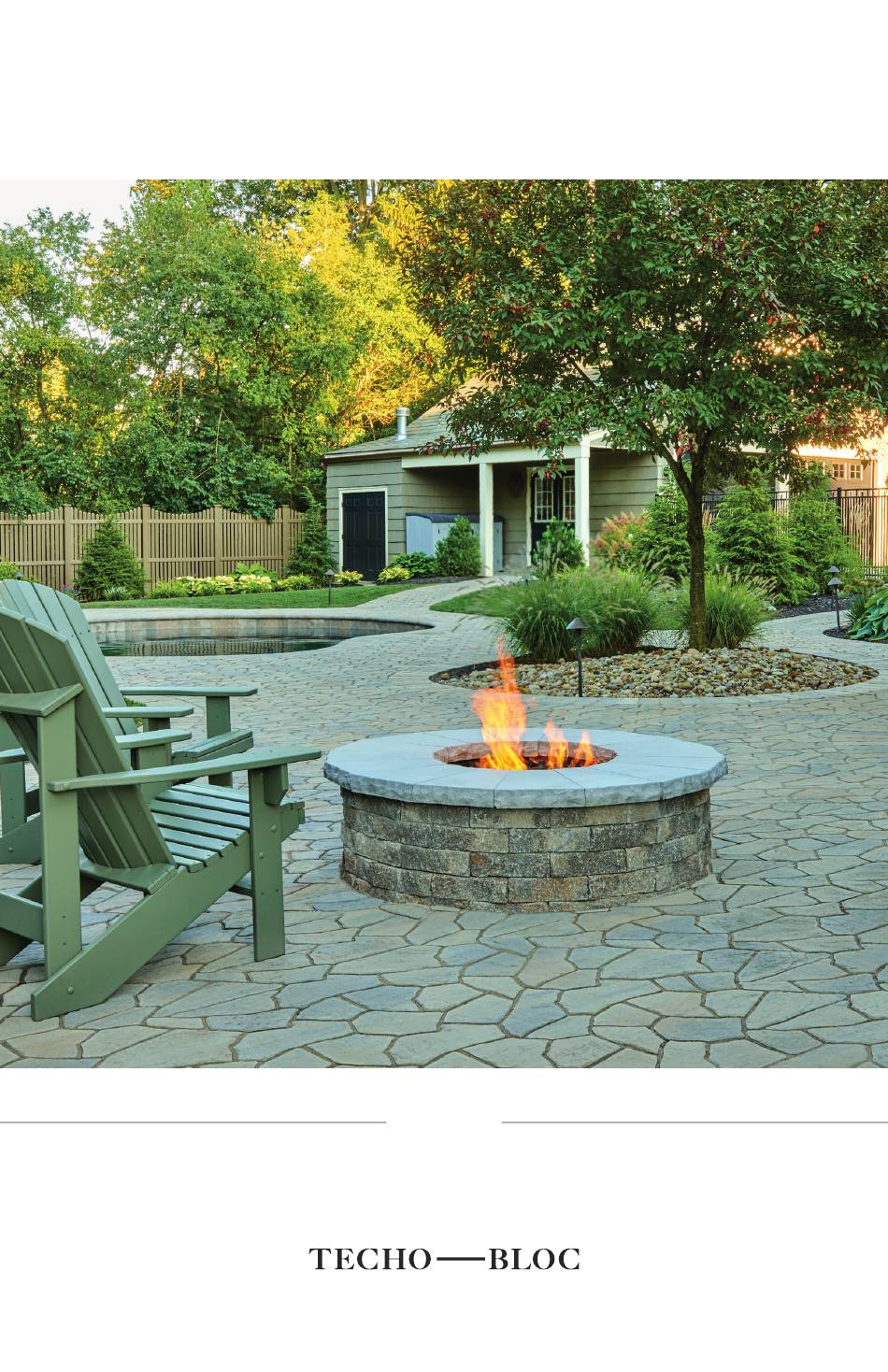

- Page 1 Valencia FIREPIT Installation guide and owner’s manual...
- Page 2 Warranty..................7 Product Profile Valencia is a versatile product that can be installed as a fire pit with the use of the Accessory Kit or can be used to build a circular garden wall or planter. Whatever application you decide to use, Valencia will blend in perfectly with your landscape décor and enhance your outdoor...
- Page 3 WE RECOMMEND THAT GAS FIRE PIT PRODUCTS ARE INSTALLED BY PROFESSIONALS LOCALLY LICENSED BY THE AUTHORITY HAVING JURISDICTION IN GAS PIPING. REFER TO MANUFACTURER'S INSTALLATION AND OPERATION INSTRUCTIONS. Components A. Valencia Block B. Gas Kit - Natural or Liquid Propane (sold separately) C. Smokeless Insert D. Outpost Adjustable Grill...
- Page 4 Foundation FOR A GAS FIRE PIT, PLAN THE INSTALLATION (GAS LINE, RISER) ACCORDINGLY WITH A PROFESSIONAL LOCALLY Preparation LICENSED BY THE AUTHORITY HAVING JURISDICTION IN GAS PIPING. REFER TO MANUFACTURER'S INSTALLATION AND OPERATION INSTRUCTIONS. PAVER SURFACE OR CONCRETE SLAB If you are building the fire pit on an existing paver surface or concrete slab, allocate a 50" diameter circular area on your concrete pavement.
- Page 5 Installation Guide A. STEEL BOX INSERT (FOR WOOD FIREPIT) B. CLEAN STONE 3/4" (20 mm), 6" (150 mm) C. VALENCIA BLOCK D. TECHO-BLOC PAVERS OR SLABS E.SETTING BED 1" (25 mm) F. COMPACTED GRANULAR BASE 0-3/4'' (0-20 mm)
- Page 6 B. When installing the second layer, using the insert as a template (when possible) taking into DATE : 2022-12-20 VALENCIA FIREPIT consideration the requirements of the specific insert selected, overlap the joints by placing the DRAWN BY : THESE GRAPHICAL REPRESENTATIONS ARE INTENDED I.G.
- Page 7 RECOMMENDED LOCATION FOR SUPPORTS ANGLE RECOMMENDED LOCATION FOR SUPPORTS ANGLE SMOKELESS INSERT AND OPTIONAL GRILLING SYSTEM OUTPOST DATE : 2022-12-20 VALENCIA FIREPIT DRAWN BY : THESE GRAPHICAL REPRESENTATIONS ARE INTENDED I.G. RAFFINATO VALENCIA FOR PRELIMINARY DESIGN PURPOSES ONLY AND SCALE: SHOULD NOT BE USED FOR CONSTRUCTION.
- Page 8 › At each use, before starting a fire, remove all accumulation of ashes, wood and debris from the fire bowl and inspect the overall fire pit and accessories to ensure that it is in safe operational condition. › Children and pets should NEVER be left unsupervised when the fire pit is in use. We highly recommend that good fire safety measures are practiced and that you and your guests maintain a minimum distance of 3 feet away from the fire pit to avoid potential injury.
- Page 9 *HPC / TECHO-BLOC PARTNERSHIP WARRANTY OUTDOOR FIRE PIT COMPONENTS RESIDENTIAL COMMERCIAL Fire Pit Stainless Steel Burner Lifetime Lifetime Outdoor Fireplace Burner Lifetime Lifetime Electronic Ignition Components 3 Years 1 Year Pilot Assemblies 2 Years 1 Year Stainless Steel Components 5 Years...
- Page 10 5135 Surrett Dr., Archdale, NC 27263 OHIO 97 Industrial St., Rittman, OH 44270 PENNSYLVANIA 852 W. Pennsylvania Ave., Pen Argyl, PA 18072 PENNSYLVANIA 23 Quarry Rd., Douglassville, PA 19518 C O N T A C T U S TOLL FREE: 1.877.832.4625 WWW.TECHO-BLOC.COM PROUD MEMBER OF...
