Summary of Contents for Kogan SMARTERHOME KASMBMPT09A

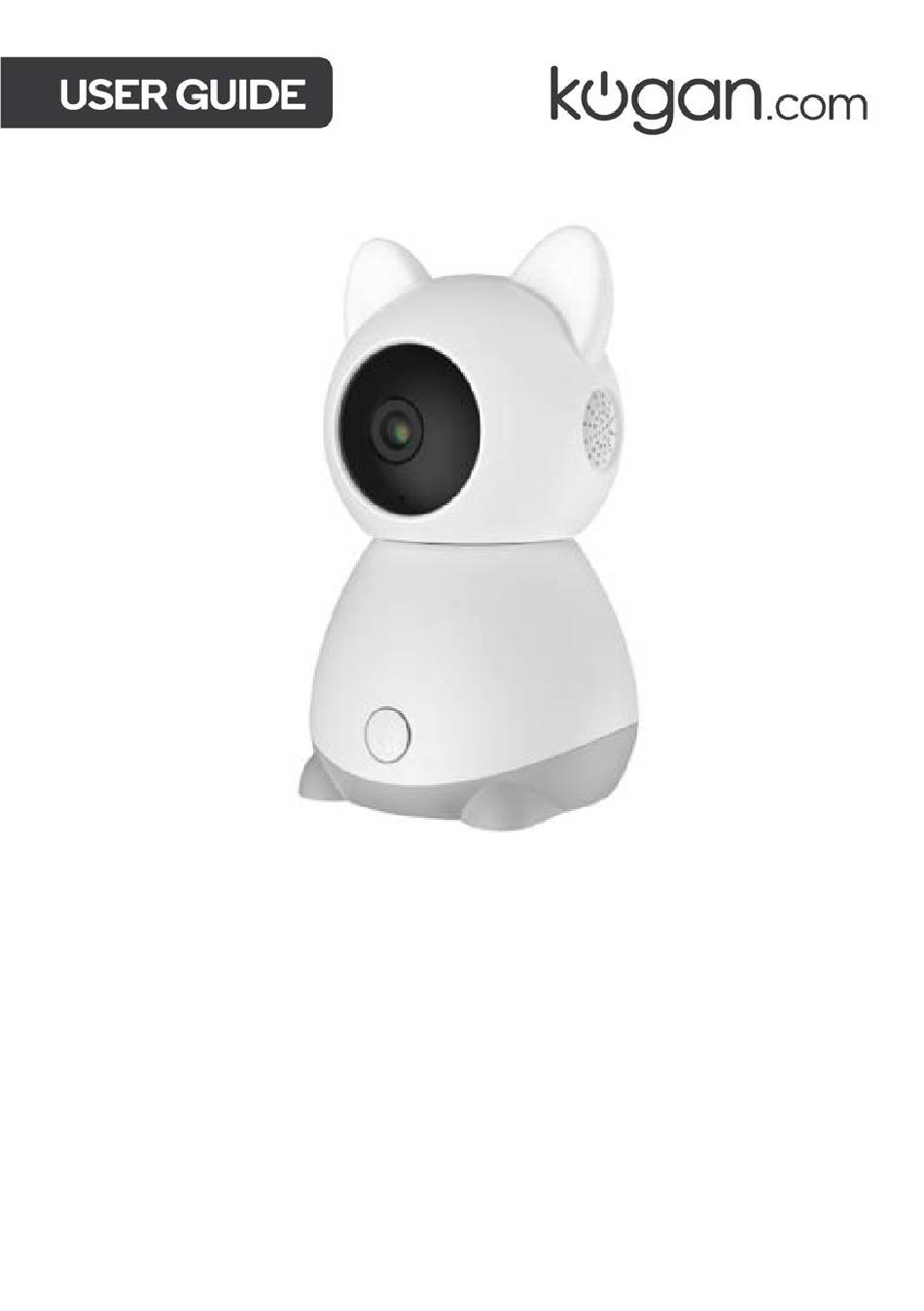

- Page 1 KOGAN SMARTERHOME™ PAN & TILT SMART BABY MONITOR SECURITY CAMERA KASMBMPT09A...
- Page 3 COMPONENTS Camera Power Adapter USB Cable Bracket Mounting Hardware Reset pin User Guide...
- Page 4 OVERVIEW Indicator Microphone SD card slot Reset Speaker Notification Micro USB Power DC 5V/1A Microphone Capture sound for your video microSD Supports local SD Card storage (Max.128G) card slot • Solid red light on: network is malfunctional • Blinking red light: wait for network connection (fast blinking) Indicator •...
-
Page 5: Installation
INSTALLATION Mounting to wall/ceiling (masonry): Drill pilot holes and insert the supplied wall anchors first. Place the bracket against the surface, in line with the wall anchors, and secure it in place with the supplied screws. Attach the camera to the bracket. Mounting to wall/ceiling (timber / dry wall): If not drilling into wall studs, drill pilot holes and insert the supplied wall anchors first... - Page 6 CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
- Page 7 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (prompt tone will be heard and the status light will be flashing rapidly). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the Reset button for 5 seconds until prompt tone is heard and the indicator begins flashing rapidly.
- Page 8 Calibrate the smart camera by holding your smartphone 15-20cm away from the camera lens until it successfully scans the QR code shown on the following screen of the setup. The device will make a prompt sound to confirm, click “I heard a prompt” to proceed to the next screen.
- Page 9 Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Google Home app From the home page of the Google Home app, select the “+” icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’...
- Page 10 Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 11 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
- Page 12 AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app From the home page of the Alexa app, select the “ ” icon in the bottom-right and select “Skills &...
- Page 13 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 14 Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
-
Page 15: Operation
OPERATION Preview mode Audio About device Signal strength Full screen mode... - Page 16 Settings In the Smart Camera interface, click " " in the upper right corner to access the camera’s settings. Pan/Tilt Rotate the camera by sliding your finger on your smartphone’s screen, allowing you to have a greater field of vision. Video flip Flip your video stream vertically.
- Page 17 Day & Night Never miss a moment, even in complete darkness, with powerful night-vision technology Daytime Night...
-
Page 18: Troubleshooting
TROUBLESHOOTING Issue Possible solution • Check whether the network is operating correctly. • Ensure the camera is positioned closely to the router. • Ensure you are connecting to a 2.4Ghz network, and that this is the network you are currently connected to on your The device cannot be smartphone. - Page 19 NOTES...
- Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
