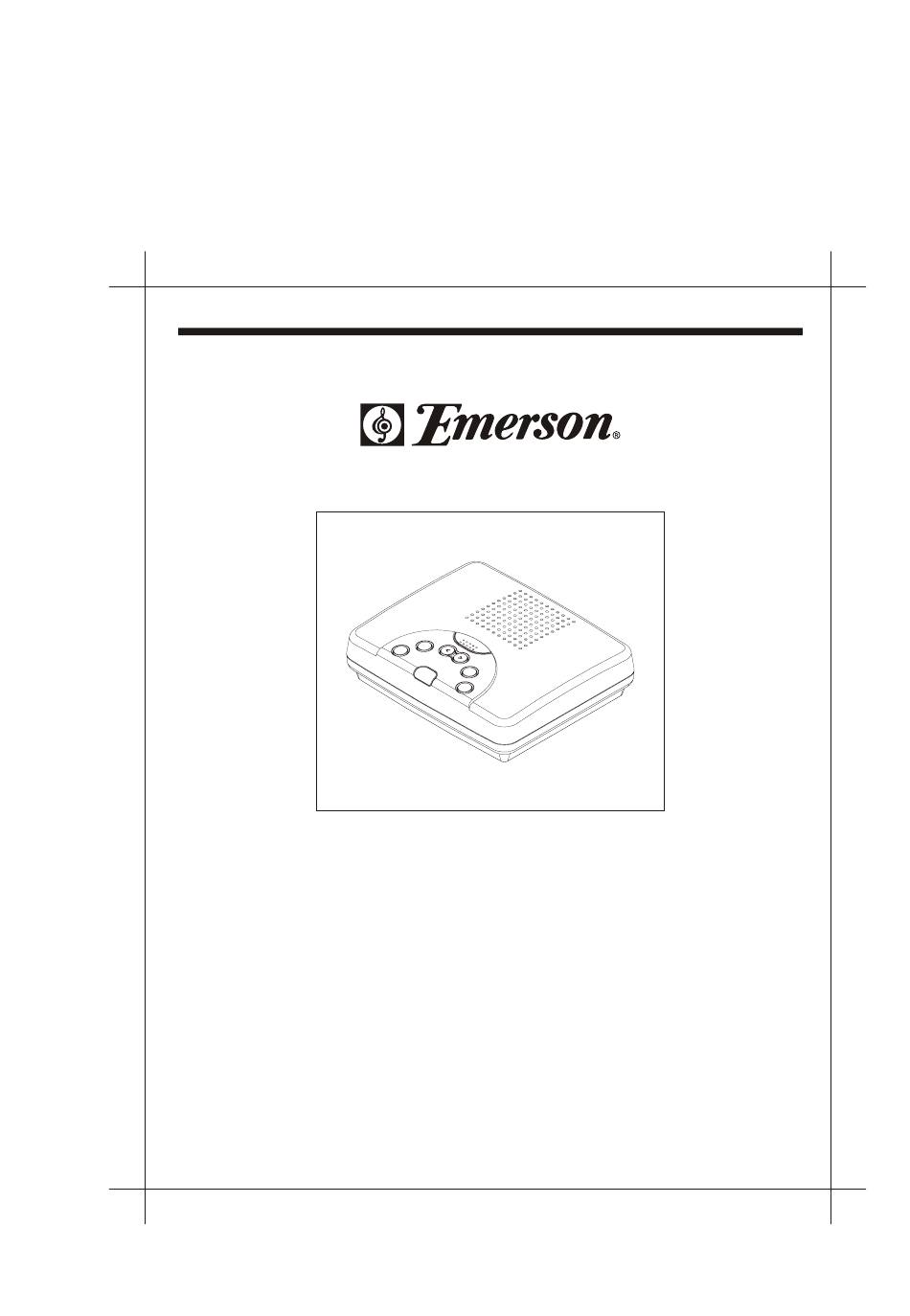

- Page 1 ZK58701IA00-R EM1200 IB SIZE: 105 x 138 mm OWNER'S MANUAL Digital Answering System Model EM1200 5/22-06...
-
Page 2: Location Of Controls
LOCATION OF CONTROLS Speaker Microphone AC Power Connection Ring Select Control (2, 6, TS) Volume Control System On/Off Control Repeat Control Announcement Record/Check Power On/Battery Stop/Save Control Low/Message Control Indicator LED DIAGRAM A DIAGRAM A This carton contains: Answering System AC Adaptor Quick Reference Card Instruction Booklet/Warranty Information... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, points or short out parts that could basic safety procedures should always result in a risk of fire or electric shock. be followed to reduce risk of fire, electric Never spill liquid of any kind on the shock and injury to persons including product. - Page 4 IMPORTANT SAFETY INSTRUCTIONS (Cont.) a cordless type) during an electrical where the cord will be abused by storm. There may be a remote risk of persons walking on it. electric shock from lightning. 14. Do not dispose of the battery(ies) 12.
-
Page 5: Installation Instructions
CAUTION (Cont.) for a long period of time (several Batteries that are stored in a freezer or months or more) since during this time refrigerator for the purpose of the battery could leak in the product. extending shelf life should be protected 9. - Page 6 NOTE: We do not recommend that you Connect to AC Power plug a cordless telephone into your unit. (Use only SYSTEM EM1200 AC Operation of a digital answering system Adaptor of Output AC 9V 150mA) may cause interference on your cordless telephone.
- Page 7 UNDERSTANDING YOUR MESSAGE INDICATOR LED (WHY THE GREEN LIGHT IS FLASHING) MESSAGE INDICATOR STATUS REASON ACTION Message Indicator is No outgoing message See section on recording consistently flashing slowly. has been recorded. your outgoing announcement (below). A 9 volt alkaline battery Install a fresh 9 volt alkaline Message Indicator flashes (not included) has not been...
-
Page 8: Message Playback
MESSAGE PLAYBACK When the message indicator flashes, To Repeat Current Message pauses, and repeats you have received During playback, press and release the messages. The number of flashes REPEAT control once quickly. indicates the amount of messages To Playback the Previous Messages received (up to 10) During playback, press the REPEAT control twice within 2 seconds. - Page 9 SPECIAL FEATURES (Cont.) If you don`t want to talk to the caller, just Adjustable Ring Select let your unit take a message, adjust the selects the number of rings (2,6, or TS) volume control on the face of the unit to your unit will answer on.
- Page 10 SPECIAL FEATURES (Cont.) Power Failure Protection/Battery Back If power failure occurs, or the plug comes out of the wall, your unit will shut down until the power is restored. If you have installed a 9 volt battery, any messages recorded before the power failure will be saved.
-
Page 11: Remote Operation
REMOTE OPERATION Remote Security Code 6. To end the remote message playback, There is a three digit security code hang up. All messages are automatically located on the bottom of your unit. saved and your unit will reset itself to Remember this number. -
Page 12: Troubleshooting Guide
Troubleshooting Guide DON'T RETURN IT YET! If you have followed the instructions in If the solution to your problem is not this manual, and have difficulty listed below, call our toll-free service operating your Digital Answering number 1-877-SOUTHTEL System, locate the PROBLEM in the (1-877-768-8483) and one of our left column below. - Page 13 Troubleshooting Guide (Cont.) PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION No answer AC adaptor is disconnected Reconnect AC adaptor into wall from wall outlet or back of outlet or back of unit. unit Power to electrical outlet Check to see if electrical outlet is controlled may be off by a light switch and power is on, or wall outlet may not be functioning, try connecting...
- Page 14 Troubleshooting Guide (Cont.) PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION No remote Unit is in the "OFF" position Check to verify if message counter is lit. operation AC adaptor is disconnected Reconnect AC adaptor into wall outlet or from wall outlet or back of back of unit.
- Page 15 FCC AND TELEPHONE COMPANY INFORMATION This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product in the format US:AAAEQ##TXXXX.
-
Page 16: Warranty Information
WARRANTY INFORMATION 90 DAYS LIMITED WARRANTY In the unlikely event that this product is defective, or does not perform properly , you may within ninety (90) days from your original date of purchase return it to the authorized service center for repair or exchange.
