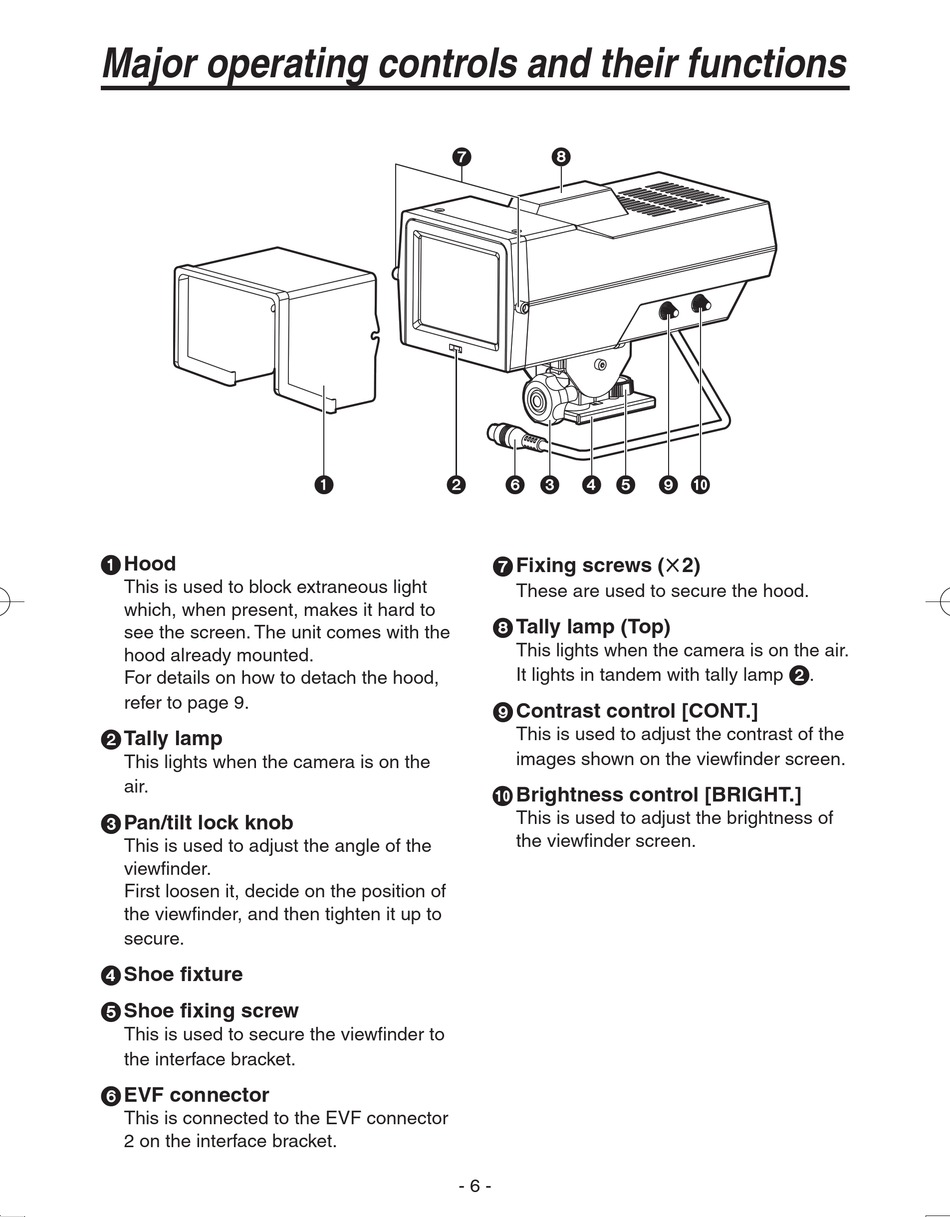

Major operating controls and their functions

 Hood
This is used to block extraneous light
which, when present, makes it hard to
see the screen. The unit comes with the
hood already mounted.
For details on how to detach the hood,
refer to page 9.
 Tally lamp
This lights when the camera is on the
air.
 Pan/tilt lock knob
This is used to adjust the angle of the
viewfinder.
First loosen it, decide on the position of
the viewfinder, and then tighten it up to
secure.
 Shoe fixture
 Shoe fixing screw
This is used to secure the viewfinder to
the interface bracket.
 EVF connector
This is connected to the EVF connector
2 on the interface bracket.
 Fixing screws (2)
These are used to secure the hood.
 Tally lamp (Top)
This lights when the camera is on the air.
It lights in tandem with tally lamp
 Contrast control [CONT.]
This is used to adjust the contrast of the
images shown on the viewfinder screen.
 Brightness control [BRIGHT.]
This is used to adjust the brightness of
the viewfinder screen.
- 6 -
.

