Specifications - Panasonic AW-VF64N Operating Instructions Manual

4" crt viewfinder
Table of Contents

Advertisement

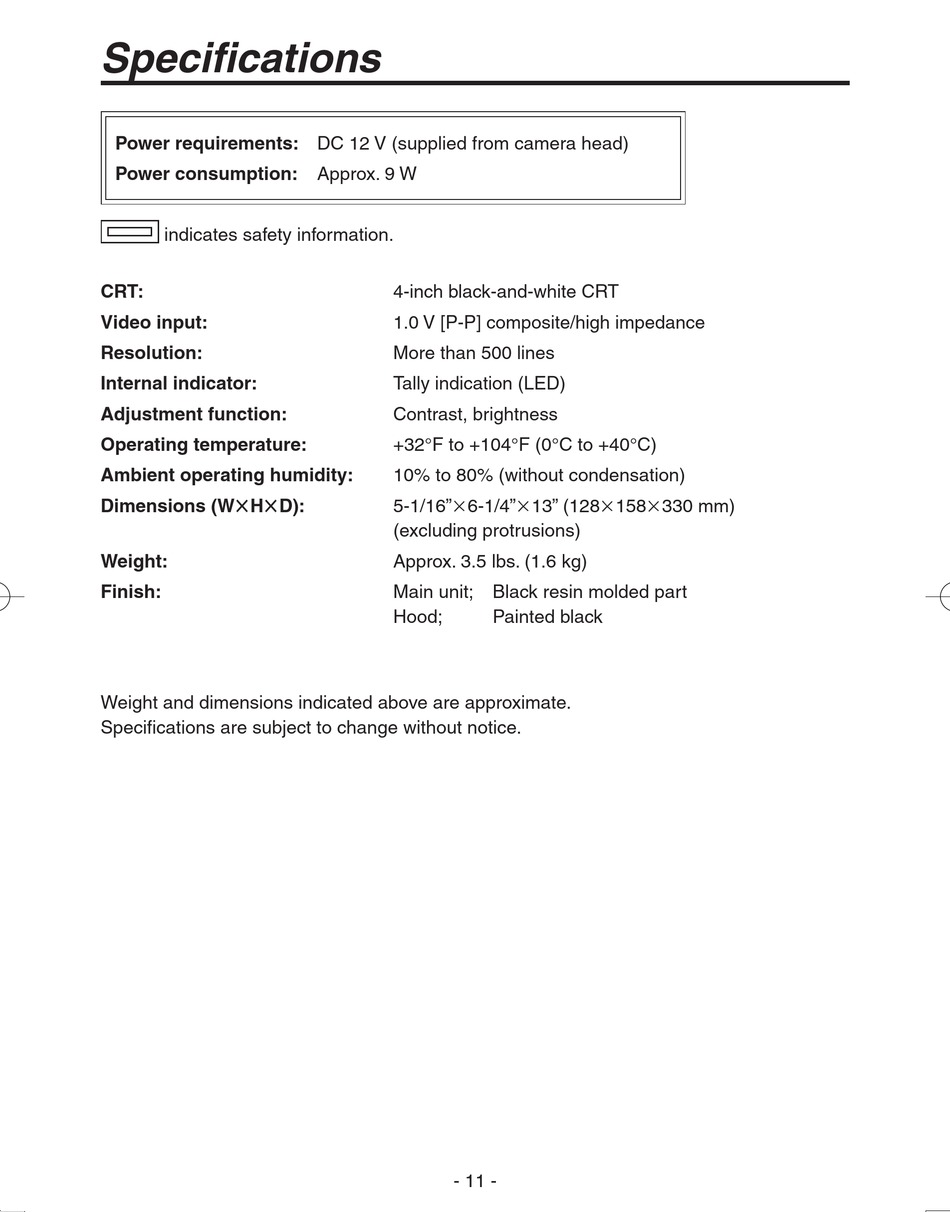

Specifications

Power requirements: DC 12 V (supplied from camera head)
Power consumption: Approx. 9 W
indicates safety information.
CRT:
Video input:
Resolution:
Internal indicator:
Adjustment function:
Operating temperature:
Ambient operating humidity:
Dimensions (WHD):
Weight:
Finish:
Weight and dimensions indicated above are approximate.
Specifications are subject to change without notice.
4-inch black-and-white CRT
1.0 V [P-P] composite/high impedance
More than 500 lines
Tally indication (LED)
Contrast, brightness
+32°F to +104°F (0°C to +40°C)
10% to 80% (without condensation)
5-1/16"6-1/4"13" (128158330 mm)
(excluding protrusions)
Approx. 3.5 lbs. (1.6 kg)
Main unit; Black resin molded part
Hood;
Painted black
- 11 -
