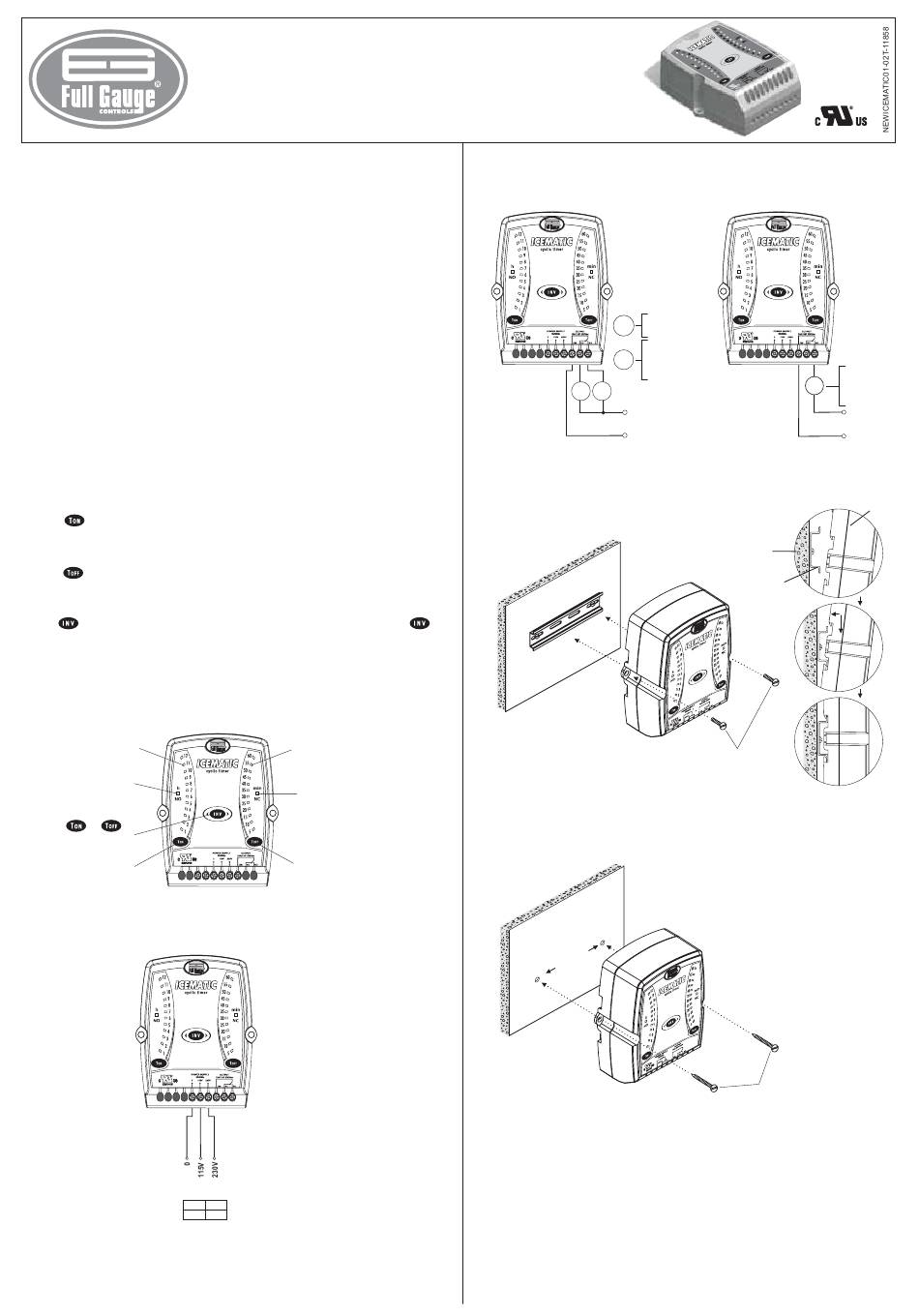

Full Gauge Controls ICEMATIC Quick Start Manual

1. DESCRIPTION

Icematic is a cyclic timer configurable through its setting keys which allow you to set up to 12 hours
output ON and 60 minutes output OFF. Its user-friendly interface accurately displays the configuration
through a set of LEDs. The panel also includes a key for manual inversion of output relay state. Its new
design allows DIN rail mounting or screw fixing.
It has protection when powered by connecting the output only after 2 minutes, during which time the LED
status indicator NO (normally open) will flash.
Product complies with UL Inc. (United States and Canada).

2. APPLICATION

ICEMATIC can be used to time any kind of cyclic event, such as controlling defrosting and refrigeration
cycles in frigorific chambers/counters, or activating lamps, air conditioners and other appliances. When
used for irrigating it controls the activation of water circulation pumps or a hydraulic solenoid valve.

3. SPECIFICATIONS

-Power Supply: 115 or 230Vac ± 15% (50/60Hz)
-Accuracy: ±2%
-Output ON time: 1 to 12 hours in 1-hour increment
-Output OFF time: 5 to 60 minutes in 5-minute increments
-Max. Current: 16(8)A/ 250Vac 1HP
-Dimensions (WxDxH): 77 x 39 x 97mm (approx. 3 03 x 1 53 x 3 82 inches)

4. SETTINGS

4.1 Output ON time setting

Press the key for 3 seconds. The Output ON Time indicator LED starts blinking. Set the desired
time through the same key. The new setting is configured when the LED stops blinking.

4.2 Output OFF time setting

Press the key for 3 seconds. The Output OFF Time indicator LED starts blinking. Set the desired
time through the same key. The new setting is configured when the LED stops blinking.

4.3 Output ON/OFF reversion

Use the key to manually select the output mode.After starting the Output OFF mode, if the
key is pressed inside 2 minutes the NO (Normally Open) state indicator LED starts blinking and the
output is turned ON only after this time is elapsed.

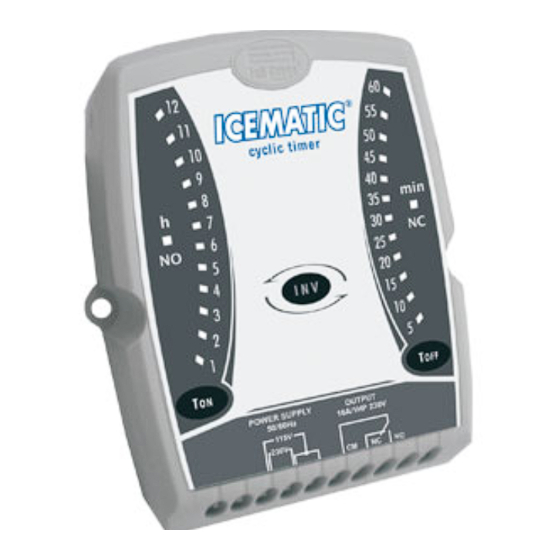

5. DISPLAY IDENTIFICATION AND CONTROL BUTTONS

Output ON time
indicator LEDs
Output NO state
indicator LED
/
State reversion key
Output ON time
selection key

6. WIRING DIAGRAM

Power
supply
5 - 6 115V
5 - 7 230V
ICEMATIC
CYCLIC TIMER
Ver.01
. . .
Output OFF time
indicator LEDs
Output NC state
indicator LED
Output OFF time
selection key

7. LOAD CONNECTION

7.1 For controlling refrigeration and
defrosting times.
Defrosting
Load-1
resistance
Compressor
Contactor switch
Load- 2
Solenoid bobbin
Load-1 Load- 2
Loads
supply
8. INSTRUMENT FIXATION MODE
DIN mount fixation
8.1
L L
W A
I L
R A
D I N
Screw fixation (wall-mounted)
8.2
L L
W A
I N G
S
L E
F I X
H O
E W
C R
R S
F O
E251415
7.2 For controlling swimming pools,
exhaust, tunnels or irrigation
Compressor
Contactor switch
Load
Solenoid bobbin
Load
supply
Instrument
Wall
DIN rail
1
2
Spare reinforce screws
(not included)
Screws for fixation
(not included)
