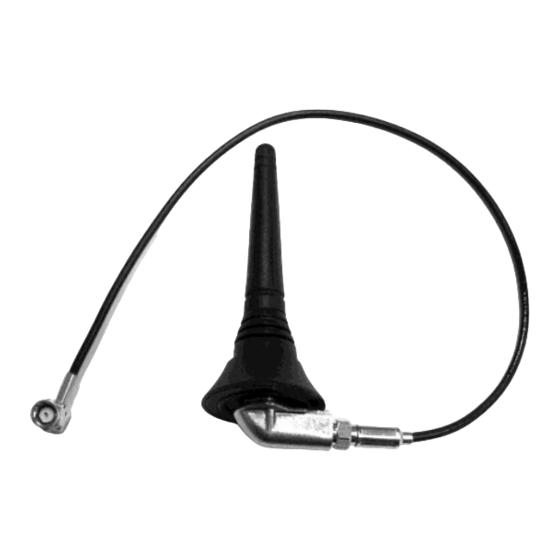

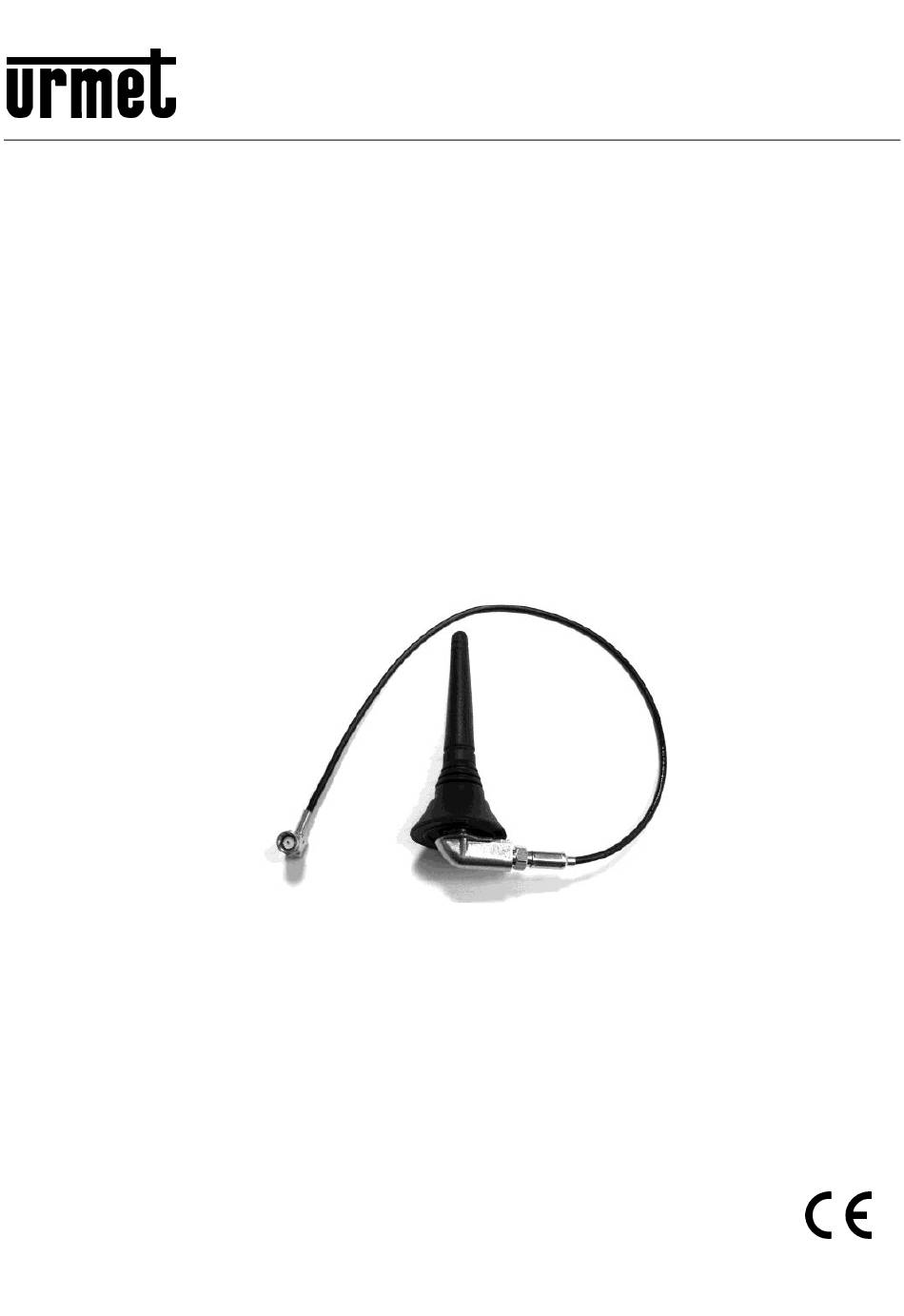

- Page 1 Mod. 1067 DS1067-021B LBT8390 ANTENNA GSM PER CASSONETTO METALLICO GSM ANTENNA FOR METALLIC CASE GSM-ANTENNE FÜR METALLGEHÄUSE Sch./Ref./Typ 1067/015...
- Page 2 ITALIANO DESCRIZIONE GENERALE L’antenna remota 1067/015 è necessaria per utilizzare il modulo GSM 1067/458 all’interno della centrale 1067 con cassonetto metallico. Montaggio Togliere l’antenna esistente nel modulo 1067/458 svitando il connettore SMA dal circuito stampato. Rimuovere l’elettronica della centrale dal cassonetto per evitare di danneggiarla.
- Page 3 ENGLISH GENERAL INFORMATION The remote 1067/015 antenna is necessary to use the 1067/458 GSM module inside the metallic case control panel. Mounting Take away the antenna already present in the 1067/458 GSM module, unscrewing the SMA connector To avoid damages during the installation, remove the electronic board of the control panel from the metallic case.
- Page 4 ALLGEMEINE BESCHREIBUNG GSM-Antenne für Metallgehäuse mit einem SMA-M-Anschluss, die mit dem GSM 1067/458-Modul kompatibel ist. Sie muss mit dem 1067/458-Modul in der Zentrale 1067 mit Metallgehäuse verwendet werden. Montage a) Die vorhande Antenne des 1067/458 Moduls, durch Lösen des SMA-Anschlusses, entfernen.
