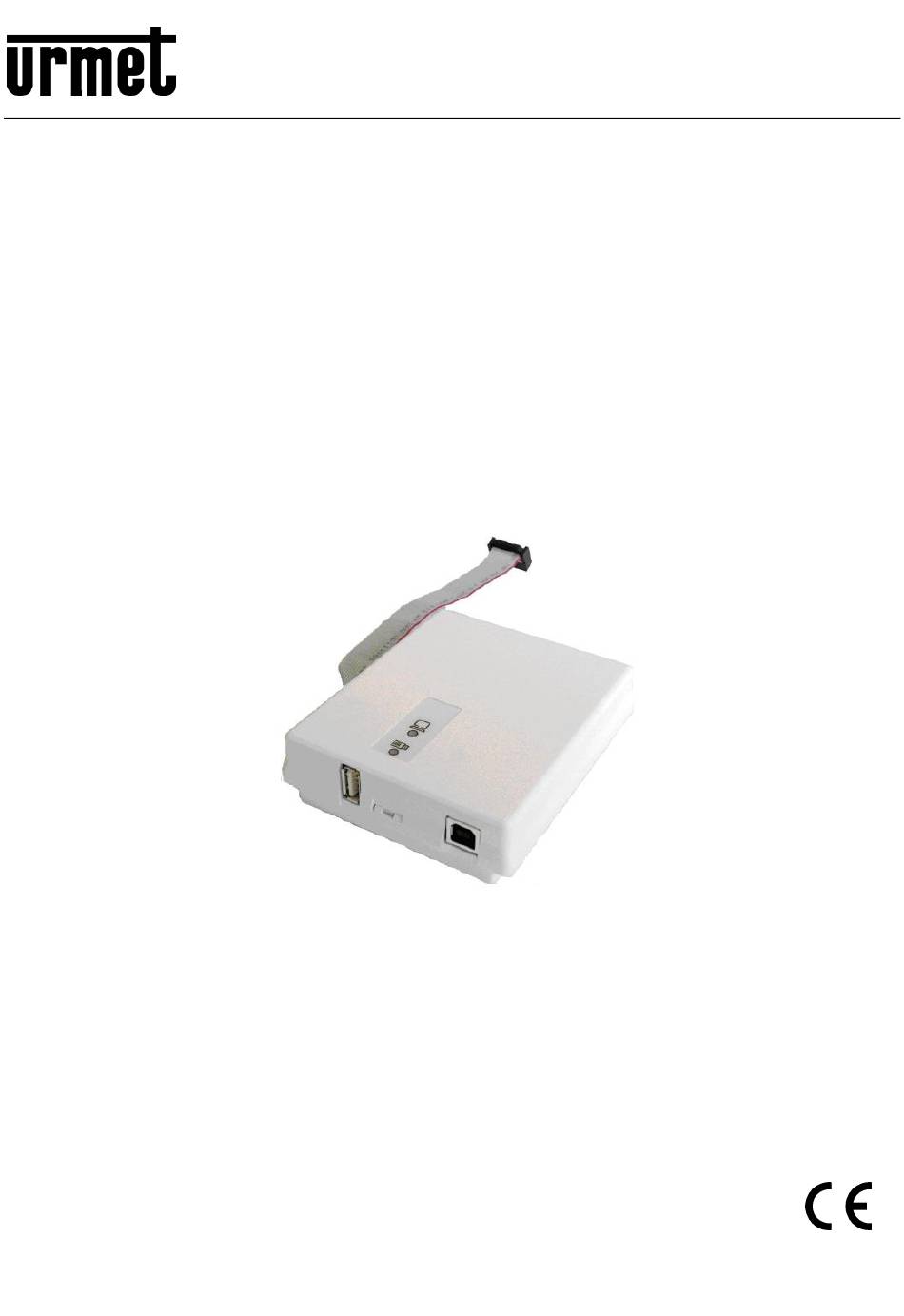

- Page 1 Mod. 1067 DS1067- 019B LBT8388 INTERFACCIA USB/KEY USB/KEY INTERFACE SCHNITTSTELLE USB/KEY Sch./Ref./Typ 1067/003...
-
Page 2: Descrizione Generale
Fig. 1 UTILIZZO CHIAVE USB (FLASH MEMORY SU PEN DRIVE) L’interfaccia 1067/003 è in grado di gestire Memorie Flash USB di tipo FAT12, FAT16 e FAT32 (no NTFS) con assorbimento massimo di 100mA @ 5V. È stata testata su memorie Flash fino a 16GB con partizione singola. -
Page 3: Caratteristiche Tecniche
L’interfaccia 1067/003 si utilizza tipicamente durante la manutenzione per programmare i parametri di centrale. Se alla centrale è connesso anche il “1067/450”, prima di eseguire qualunque operazione con l’interfaccia USB è necessario scollegare il cavo Flat 10 vie dall’IT RS232 connessa al “1067/450”. -
Page 4: General Description

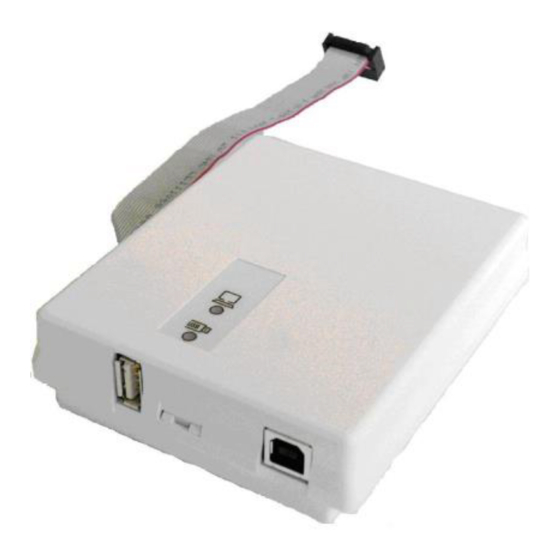

GENERAL DESCRIPTION The 1067/003 interface is used to connect a computer to the 1067 control panel in order to program the computer and a USB flash drive or memory key (Pen Drive) to save and retrieve the whole system programming, the history of events, codes and keys. -
Page 5: Technical Specifications
The 1067/003 interface is usually used during the maintenance to program the control panel parameters. If the "1067/450" is also connected to the control panel; it is necessary to disconnect the Flat cable 10ways from the IT RS232 connected to the “1067/450” before carrying out any operation with the USB interface. -
Page 6: Allgemeine Beschreibung
BENUTZUNG DES USB-SCHLÜSSELS (FLASH MEMORY AUF PEN DRIVE) Die Schnittstelle 1067/003 ist in der Lage, USB Flash-Schlüssel des Typs FAT12, FAT16 und FAT32 (nicht NTFS) mit einer maximalen Stromabnahme von 100mA @ 5V zu verwalten. Sie wurden auf Flash-Speichern bis zu 16GB mit Einzelteilung getestet. -
Page 7: Verbindung Mit Dem Pc
Die 1067/003 Schnittstelle wird normalerweise während der Wartung für die Programmierung der Parameter der Zentrale benutzt. Wenn die Zentrale auch mit 1067/450 verbunden ist, muss vor jeglicher Arbeit mit der USB Schnittstelle das 10-wegige Flachkabel von der mit “1067/450“ verbundenen IT RS232 abgetrennt werden. - Page 8 Cavo PC KEY USB (FLASH MEMORY) PC cable PC-Kabel Fig./Abb 3 DS1067-019B LBT8388 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39. 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com DS1067-019B Telef. +39. 011.24.00.000 (RIC.AUT.) e-mail: info@urmet.com +39. 011.24.00.300 - 323 MADE IN ITALY...
