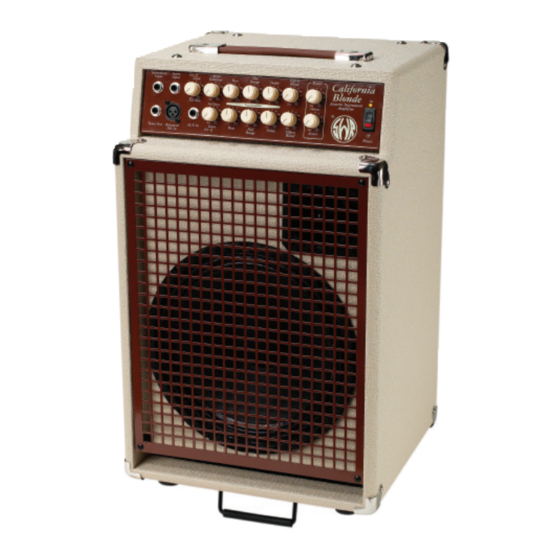

SWR California Blonde Operating Instructions Manual
Hide thumbs
Also See for California Blonde:
- Owner's manual (13 pages) ,
- Owner's manual (13 pages) ,
- Operating instructions manual (60 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SWR California Blonde
Summary of Contents for SWR California Blonde

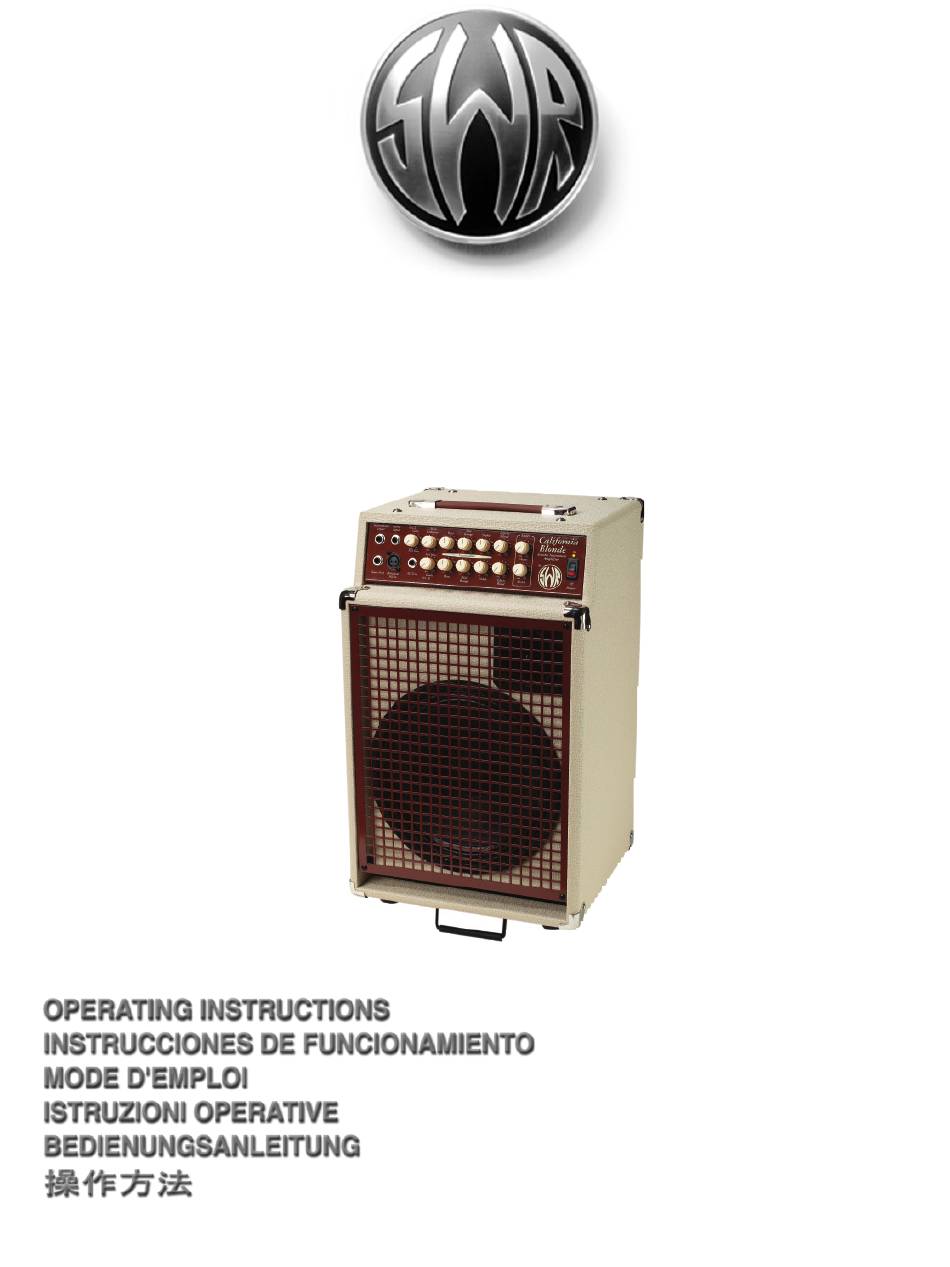

- Page 1 California Blonde SWR • CORONA, CA • USA...
- Page 2 ENGLISH - PAGES 6-14 ESPANOL - PAGINAS 15-22 FRANÇAIS - PAGES 23-31 DEUTSCH - SEITEN 32-39 ITALIANO - PAGINE 40-47 48-56...
- Page 3 ∆ CAUTION: No user serviceable parts inside, refer servicing to puede realizar el usuario, sino sólo personal cualificado. qualified personnel only. ∆ Los amplificadores y altavoces SWR pueden producir niveles de ∆ SWR amplifiers and loudspeaker systems are capable of presión acústica muy elevados, que pueden provocar daños producing very high sound pressure levels which may cause temporales o permanenetes en el oído.
-
Page 4: Front Panel Features
SWR amplification is handmade and individually tested in the United States. Everyone at SWR sincerely hopes that you are satisfied with your recent purchase, as we are extremely proud of the quality and attention that goes into each and every SWR product. We truly hope that your purchase of an SWR helps bring out the best in your playing and adds to your enjoyment of music. -
Page 5: Rear Panel Features
Now turn up the and you should hear the sound of your instrument amplified through the California Blonde. For more detailed information, please read the entire manual carefully so that you can fully realize the California Blonde’s potential. - Page 6 Reverb chain. The both affect this blended signal. The California Blonde can be run in stereo. Please refer to “Stereo Operation” located in the “Rear Panel Features” section of this guide. GAIN CONTROL Proper use of this feature will ensure maximum signal-to-noise ratio (quiet operation) and unwanted clipping (distortion) in the preamp section.
-
Page 7: Using The Tone Controls
Gain, Aural Enhancer, tone controls and effects loop circuitry. USING THE TONE CONTROLS To get the most out of the Tone Controls of your California Blonde, it would be best to first understand how the Aural Enhancer Bass... -
Page 8: Master Section
TUNER OUT This feature allows the user to connect their instrument tuner to the California Blonde without having to unplug and go back and forth from amp to tuner to amp. The Tuner Out circuit is isolated from the rest of the circuitry and no other controls other than your instrument affect the signal. - Page 9 First, you will need an external power amp and speaker cabinet (powered “slave” enclosures are ideal for this situation). Plug a shielded patch cable from the Line Out CH-1 or Line Out CH-2 jack (your choice) on the back of the California Blonde to the input of the external powered speaker system.
- Page 10 POST-REVERB RETURN JACK You may choose to use the California Blonde as an all-in-one amp/P.A. Plug your instrument into Channel 1 and the mic into Channel 2. Then you can choose to have reverb on either the vocal or the instrument only. To defeat reverb on Channel 1, simply run a (preferably short) instrument cable from the “Line Out CH-1”...
- Page 11 EXTENSION SPEAKER OUT JACKS We have provided two Extension Speaker Out Jacks on your California Blonde: one Speakon jack and one 1/4" jack. They should ONLY BE USED AS OUTPUT JACKS TO ANOTHER SPEAKER CABINET, NOT AS INPUT JACKS FROM ANOTHER AMPLIFIED SOURCE! For the 1/4"...
- Page 12 CALIFORNIA BLONDE LIMITED WARRANTY The CALIFORNIA BLONDE from SWR is warranted to the original consumer purchaser for ONE YEAR from the date of purchase against defects in materials and workmanship, provided that it is purchased from an Authorized SWR dealer. This warranty applies only to products purchased in the USA or Canada.
