Weh TW111 Operating Instructions Manual

Quick connector for filling refrigerants in refrigerating and air conditioning systems that use schrared valves
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

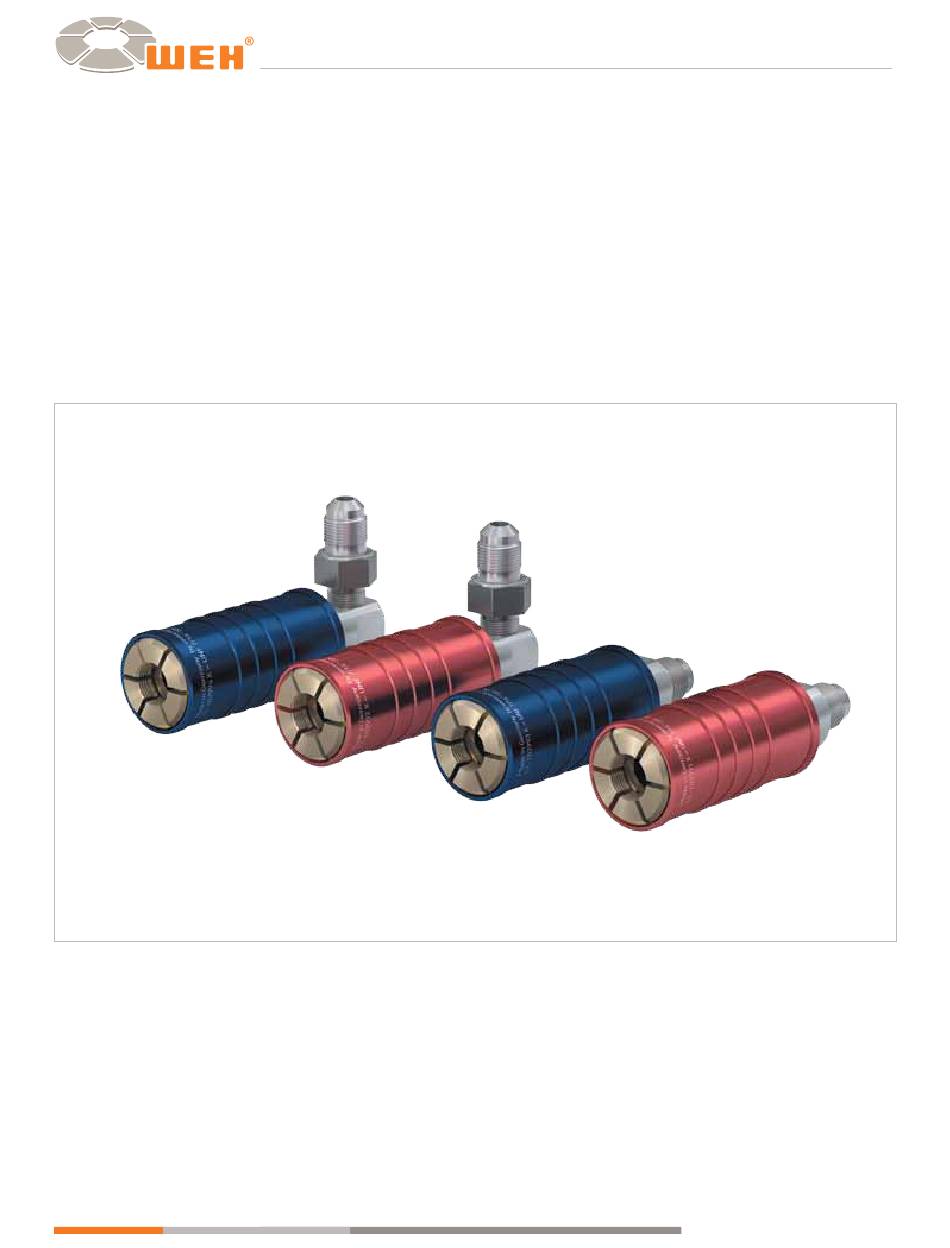

Operating instructiOns
D-2009/09/00591-0-16 | Date: 10/2010
TW111
Type
Quick connector for filling refrigerants
in refrigerating and air conditioning systems that use ‚Schrader' valves
FUTURE. TECHNOLOGY. TODAY.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TW111 and is the answer not in the manual?

Questions and answers

Related Manuals for Weh TW111

Summary of Contents for Weh TW111

  • Page 1 Operating instructiOns D-2009/09/00591-0-16 | Date: 10/2010 TW111 Type Quick connector for filling refrigerants in refrigerating and air conditioning systems that use ‚Schrader‘ valves FUTURE. TECHNOLOGY. TODAY.

  • Page 2: Table Of Contents

    Type TW111 Operating Instructions Date: 10/2010 cOntent pLease nOte . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1 saFetY instructiOns .

  • Page 3: Please Note

    WeH Qa-Management in writing . WeH products can be used in various operating conditions so the user must check if it is suitable for the specific application . in case of doubt, or questions arising for your special application, please contact our Qa-Management .

  • Page 4: Application

    1 .12 note: The jaws of the WEH TW111 connector are designed to grip a ‚Schrader‘ type valve. Keep fingers and other objects away from the gripping jaws when actuating the connec- tor. Pinching or crushing can occur.

  • Page 5: Installation

    Check the functioning of the clamping jaws by connecting port ‚A‘ of the connector several times to your ‚Schrader‘ type valve. The clamping jaws must firmly grip the valve. 3 .4 Carry out suitable tests to your connection to the media inlet of the TW111 connector after it has been installed. 3 .5 Periodically inspect the connector and its seals for wear or damage.

  • Page 6: Operation

    Seal replacement does not require the dismantling of the con- nector. For special instructions for replacement of the seals see point 8 ‚Replace- ment of seal‘ (page 7). Failure to use original WEH spare seals will result in a loss of warranty.

  • Page 7: Replacement Of Seal

    Replace O-ring seal (pos. 7) if tears or cracks in the o-ring surface appear. There is no need to dismantle the TW111 connector. note: use original WEH spare seals because failure to do so could result in the loss of warranty! 8 .1 The clamping jaws should be open.

  • Page 8: Dimensions

    Type TW111 Operating Instructions Date: 10/2010 9 DiMensiOns approx. dimensions (mm) TW111 - inline media inlet TW111 - 90° media inlet Connection A: UNF 7/16“-20 (SAE J513) Inlet B: UNF 7/16“-20 (SAE J513) » contacting For queries and further information, please do not hesitate to contact us.
