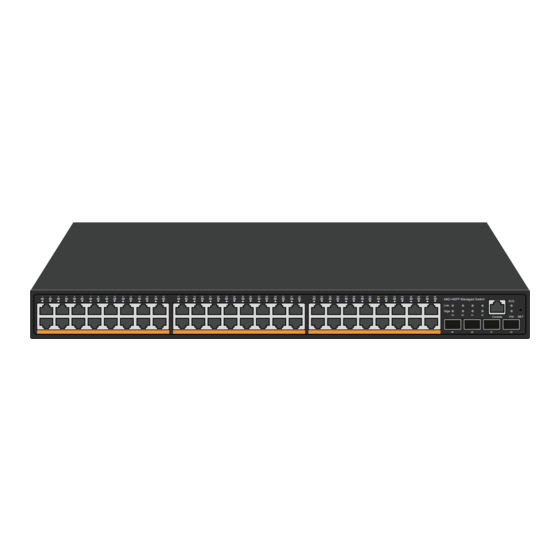

- Page 1 Manual for POE-G484GSM All Gigabit PoE Managed switch...
-
Page 2: Product Introduction
Product introduction Product overview POE-G484GSM L2 multi-functional network PoE management switch independently adopts Realtek's new generation high-performance platform and new self-developed switch system, and supports flexible network management functions such as 802.1Q VLAN, IGMP, port monitoring, port aggregation, bandwidth control, ring application, etc. This series of... -
Page 3: Spare Parts List
Spare parts list 48G+4SFP Managed Switch Link Giga Console Switch AC power cable User manual Rack hanger Product display Back Front 48G+4SFP Managed Switch A C- 11 0-240 V Link Giga Console Port Indicator Downlink port Uplink port Indicator and Reset key Ground screw AC Power Indicator definition:... - Page 4 S w it c h a n a g e d S F P M 4 8 G + 4 Insert the data cable Install the SFP module R E T L in k C o n s o le G ig a S Y S S w it c h...
- Page 5 3. Put the switch installed with the lug into the cabinet and screw on the screw to complete the installation. itch Ma nag ed Sw 48G +4S FP Link PW RET Gig a Con sole Power on Connected the power AC Power in 100V~240V 50/60Hz 24 0V...
- Page 6 Application VLAN application Fiber Fiber convergence converter switch 48G+4SFP Managed Switch Link Giga Console Ethernet Switch Intelligent Computer IPTV IP Phone Camera Wireless AP door lock VLAN1 VLAN2 VLAN3 VLAN4 The uplink port can connect routers, servers and other devices. The downlink port can be connected to the switch or directly connected to the network equipment.
-
Page 7: Common Troubleshooting
Common troubleshooting The PWR indicator is not on after the power is connected Check whether the power adapter and plug are connected correctly, whether the power cord is damaged, and whether the power adapter is damaged. Switch cannot communicate after power up Check whether the switch indicator is on. -
Page 8: Product Parameter
Product Parameter Model POE-G484GSM Product 48 Port Gigabit PoE Managed Switch 48*10/100/1000Base-TX PoE port Fixed Port 4*1000M SFP Console port 1*console port Reset Key IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3z 1000BASE-X Network Protocol IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p... -
Page 9: Software Function
Product size/ package size 440mm*290mm*45mm 515mm*375mm*95mm （L*W*H） N.W/G.W（kg） 5.5kg/6.3kg Installation Rack-mount(optional machine hanger spare parts) Lightning protection 3KV 8/20us； / protection level IP30 3C； CE mark, commercial；CE/LVD EN60950； Certificate FCC Part 15 Class B；RoHS； Warranty Whole device for 1 year(Accessories not included) Software Function The followings are main functions not included in all the functions.Please contact with us for more other information!（We support software development for customization requirement）... - Page 10 WEB interface management CLI management based on Telnet、TFTIP、Console SNMP V1/V2/V3 management Network Management RMONV1/V2 management RMON management Wuhan MokerLink Technology Co.,Ltd Rm10,13/F,Main Building 7,Changhang Lanjing International, No.116 Gaoxin Ave.,Hongshan Dist.,Wuhan,China http://www.mokerlink.com support@mokerlink.com For technical support and other information, please visit...
