- Page 1 Manual for G092GSM Optical fiber convergence managed switch...

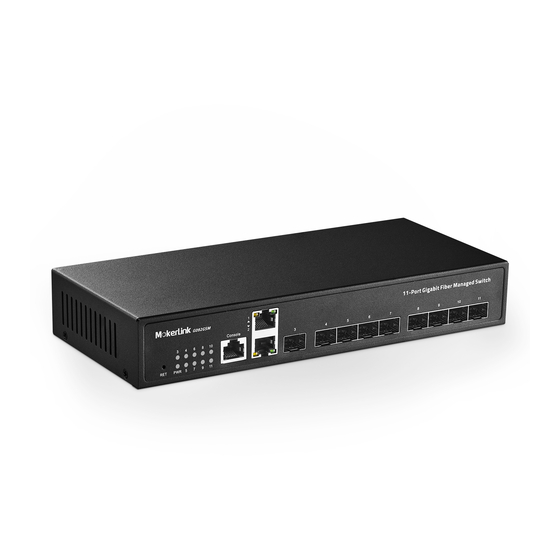

- Page 2 Product introduction Product overview G092GSM has 11 ports full gigabit enterprise level multi-functional L2 network management switch. It is specially designed for enterprise customers to optimize and enhance the design and has higher reliability. The device adopts Realtek new generation high-performance platform and new self-developed switch system, supports flexible 802.1Q VLAN, IGMP, port monitoring, port aggregation, bandwidth control, ring application and other network management functions, and easily adapts to the current complex network application environment.
- Page 3 Spare parts list Fiber Convergence Switch Gigabit Managed Switch Console Switch DC adapter User manual Product display Back Front F1200W-9S-2G Fiber Convergence Switch Gigabit Managed Switch Power Console Indicator and Uplink port Downlink SFP port DC Power Reset port Console port Indicator definition: Indicator Status...
- Page 4 As shown in the figure, insert the crystal head of As shown in the figure, align the optical fiber the data cable into the network port. When you module with the optical port of the SFP and hear a clear click, it indicates that the crystal insert it smoothly.
- Page 5 Application VLAN application Server Router recorder VLAN1 VLAN2 VLAN3 VLAN4 The uplink port can connect routers, servers and other Fiber Convergence Switch devices. The downlink port can Gigabit Managed Switch Console be connected to the switch or directly connected to the network equipment.
- Page 6 Common troubleshooting The PWR indicator is not on after the power is connected Check whether the power adapter and plug are connected correctly, whether the power cord is damaged, and whether the power adapter is damaged. Switch cannot communicate after power up Check whether the switch indicator is on.
- Page 7 Product Parameter Model G092GSM Product 11 Port Gigabit Fiber Managed Switch Fixed Port 9*1000M SFP 2*10/100/1000Base-TX RJ45 port (Data) Console port 1*console port Reset Key IEEE 802.3 IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x IEEE 802.3ad Network Protocol IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S...
-
Page 8: Software Function
Lightning protection 3KV 8/20us； / protection level IP30 CE mark, commercial；CE/LVD EN60950； Certificate FCC Part 15 Class B；RoHS； Warranty Whole device for 1 year(Accessories not included) Software Function The followings are main functions not included in all the functions.Please contact with us for more other information!（We support software development for customization requirement）... - Page 9 WEB interface management CLI management based on Telnet、TFTIP、Console SNMP V1/V2/V3 management Network Management RMONV1/V2 management RMON management Wuhan MokerLink Technology Co.,Ltd Rm10,13/F,Main Building 7,Changhang Lanjing International, No.116 Gaoxin Ave.,Hongshan Dist.,Wuhan,China http://www.mokerlink.com support@mokerlink.com For technical support and other information, please visit...
