MTX re-Q Owner's Manual

USA - UK
1
Thank you for purchasing the MTX re-Q
premium active high-level speaker
inputs to line-level RCA outputs
processor with EBC remote control and
Smart Digital Bass Restauration.
The re-Q is designed to enhance your
integrated car factory head-unit and
transform it into a phenomenal high
2
fidelity device to get an ultimate
listening experience.
Congratulations for making a smart
choice and enjoy your music with MTX.
3
Specifications
• High-level inputs to line-level outputs processor
• re-Q smart digital bass restauration processing
4
• EBC (external bass control) on the sub outputs
• 2 channel 4 connetors speaker inputs (left+right)
• Speaker inputs can accept up to 4x110W RMS
• 4x10V RMS RCA outputs with level controls
5
• Auto turn-on feature with Remote output
• Total Harmonic Distortion : >0.01%
• Signal to Noise: >112 dB
• Speaker inputs impedance : 20kΩ
• Frequency Response: 20Hz-80kHz ±0,5dB
• Dimensions 168x90x28mm (feet included)
Owner's Manual
Premium active high-level speaker inputs to
line-level RCA outputs processor with EBC remote
control and Smart Digital Bass Restauration
Designed by MTX in Phoenix, AZ - USA
mtxaudio.eu
mtxaudio.fr
mtxaudio.de
twitter.com/MTXEurope
twitter.com/MTXFrance
Power connectors 6 Subwoofer Output Level Control
GND : to be connected to the car chassis Turn the control clockwise to raise the
+12V : to be connected to the car 12V permanent subwoofer output level up to 10V RMS.
REM in : if the head unit is equipped with a
Front Output Level Control
remote cable (Antenna), you can connect it here. It 7
is not mandatory as the re-Q provides a REM out. Turn the control clockwise to raise the front
REM out : Automatic turn on and turn off remote full range output level up to 10V RMS.
output cable to be connected to amps, powered
enclosures and sound processors. 8 Power ON LED
When the unit is turned ON, the LED is red.
Remote Auto Turn ON jumper When the unit is OFF, the LED is OFF.
Enable or disable the Automatic turn ON and turn
9
OFF Remote function. Put the strap in ON position Subwoofer RCA Outputs
to get the automatic remote function. Connect your subwoofer amp(s) or powered
enclosure(s) to these RCA connectors.
EBC remote control port These subwoofer outputs are wide range.
Bass level remote control port to be connected to There is no filter applied, so you can use a
the included EBC remote control case. speaker amp on these RCAs if needed.
EBC remote control case 10 Front RCA Outputs
Turn the control clockwise to raise the subwoofer Connect your wide range speaker amp(s)
output level of your re-Q. to these RCA connectors.
Speaker Inputs re-Q : Potentiometer control
11
Four screws to be connected to the car factory See "How to set your re-Q" section
speaker cables. You can connect to the front or to
the rear speaker cables. re-Q : Sub EQ
12
Respect the polarity to avoid sound quality losses. See "How to set your re-Q" section
The power input can go up to 4x110W RMS to
allow any factory head-unit to be connected, even re-Q : Peak LED
13
the ones with a separate power amp. See "How to set your re-Q" section

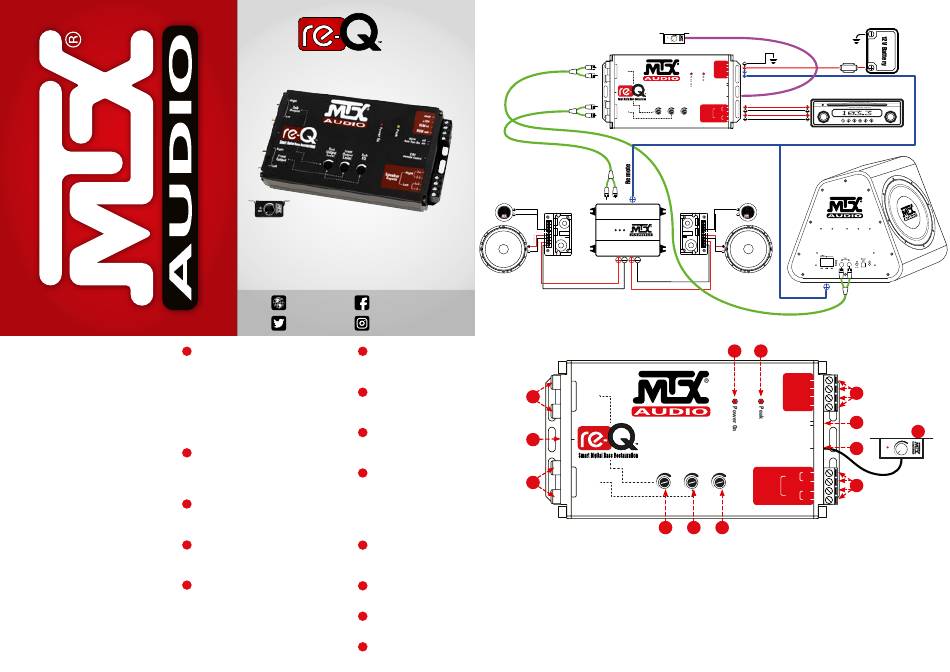

Installation Diagram
Smart
Digital
Bass
Restauration
Subwoofer RCA ouput
Front RCA ouput
TX665S
Tweeter (+)
Tweeter (-)
facebook.com/MTXEurope
facebook.com/MTXFrance
instagram.com/mtxaudio.eu
instagram.com/mtxaudio.fr
9
11
10
1•
2•
3•
4•
5•
EBC
EBC
Right GND
+12V
Sub
REM in
Output
REM out
Left
REM off
Auto Turn On on
EBC
Remote Control
Sub Front
Sub
Output Output
EQ
Level Level
Right
(+)
Right
Front
(-)
Output Speaker
Inputs
(+)
Left Left
(-)
TX2275
Left speaker cables Right speaker cables
8
Right
Sub
Output
Left
Sub Front
Sub
Output Output
EQ
Level Level
Right
Front
Output
Left
6 7 12
How to set the re-Q bass restauration function
Initial settings : Turn the re-Q control (11) to minimum (counterclockwise). Put the Sub EQ control (12) in
the middle. You can feel a click.
On the factory head-unit, play a bass track where the factory bass drop is easy to identify. Set the volume
at the exact volume level the bass starts to drop.
Raise the re-Q control (11) until the Peak LED (13) starts to flash.
Play with the Sub EQ control (12) to adjust the bass level you like.
The bass drop of your factory head-unit is now more than conpensated. You can enjoy your fantastic new
sound system...
Ground
Remote out
Left & Right
speaker cables
RTP12
30cm 12" Powered Enclosure
Remote
13
GND
+12V
1
REM in
REM out
2
off
REM
on
Auto Turn On
4
3
EBC
Remote Control
EBC
(+)
Right
(-)
5
Speaker
Inputs
(+)
Left
(-)
