Sheet 4-2

4.2 System Layout

4.2.1.1 BUS connection

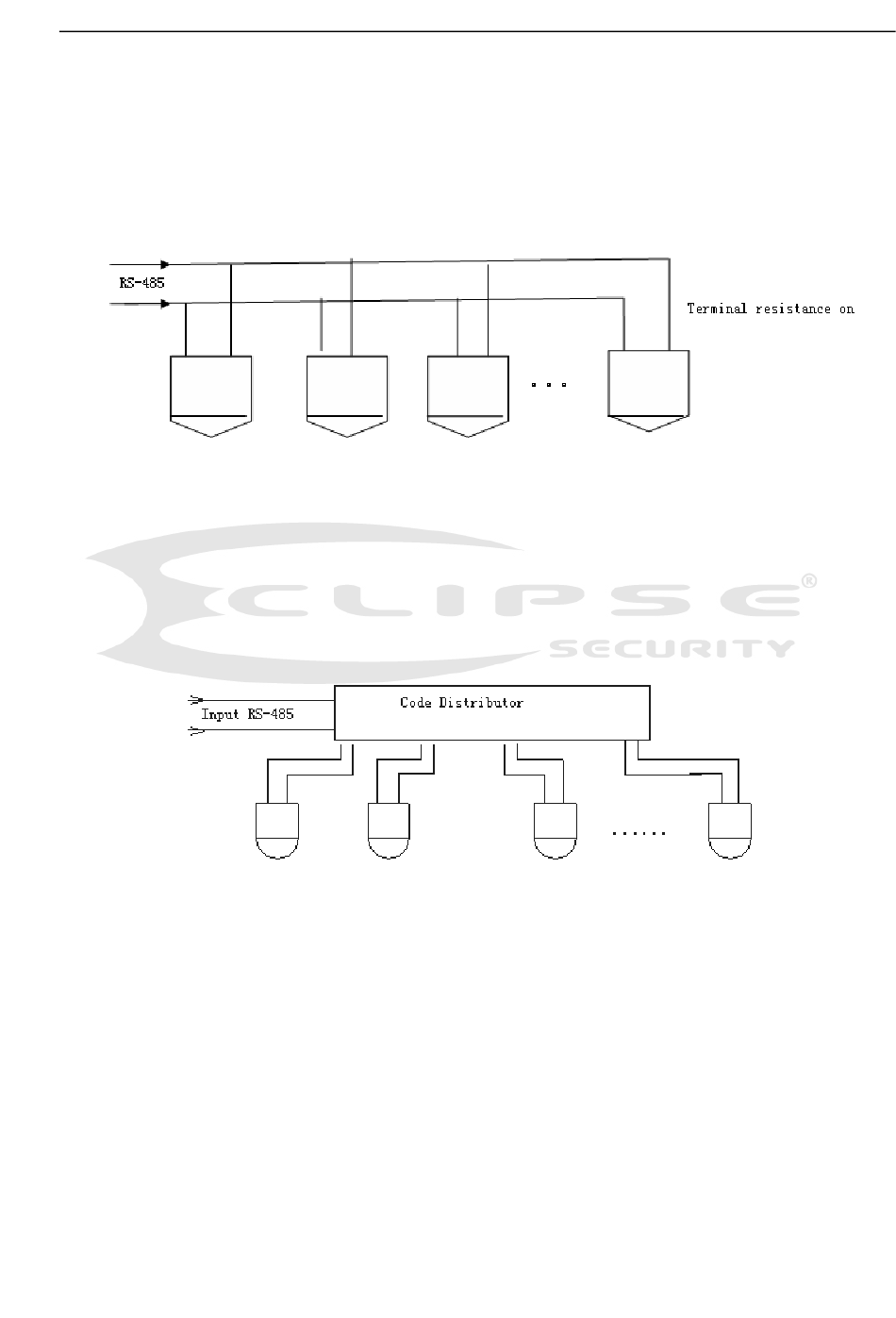

Please refer to Figure 4-1 for system connection information.

Figure 4-1

Note:

Please use shielded twisted pair. The shielded layer shall connect to GND firmly; otherwise it may affect

communication or video work.

4.2.1.2 Star Connection

Please refer to Figure 4-2 for alarm connection information.

Figure 4-2

Please refer to Figure 4-3 for alarm connection information.
