Summary of Contents for Kimex 015-1154

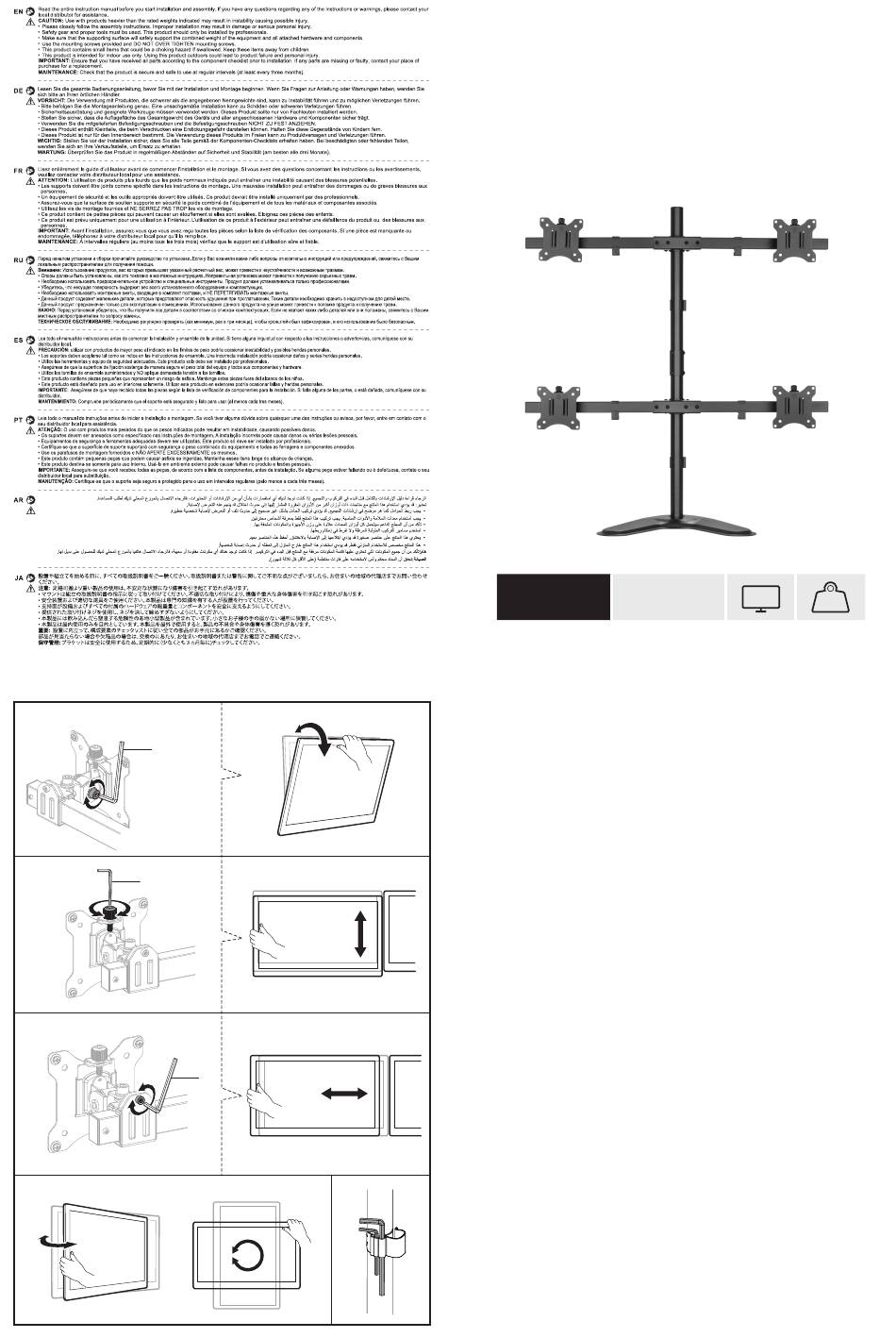

Page 1

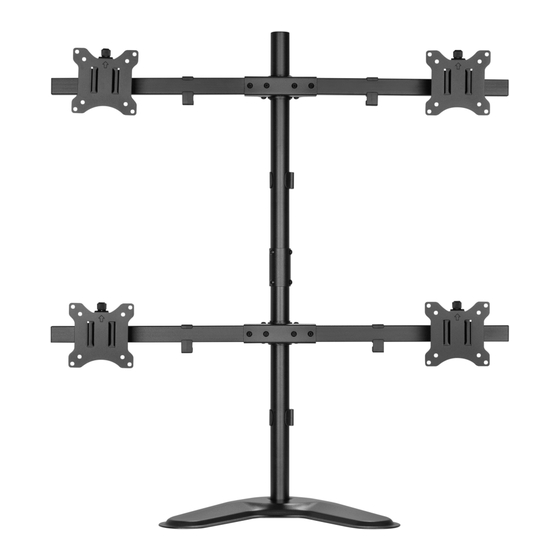

Manuel d'installation / Instruction Manual MONITOR DESK ST AND SUPPORT DE BUREAU POUR 4 ECRANS MONITEUR PC 17''-32'' 015-1154 VESA 32" (9kg)x4 (9kg)x4 75x75 100x100 (19.8lbs)x4 (19.8lbs)x4 RATED RATED Note:Ifthedisplay doesnotstopat yourdesiredposition, tightenthescrews asshown. Remarque : Si l'affichage ne s'arrête pas à...
Page 2
P-A (x4) P-B (x4) M-A (x4) M-B (x4) M4x12 M4x16 M3x8 C (x1) D (x1) E (x4) F (x4) M-C (x4) M-D (x4) M5x12 M5x16 P-C (x4) P-D (x8) M4x5 M6x27 M-E (x4) M-F (x4) A (x1) B (x1) G (x2) H (x2) I (x4) J (x1)
