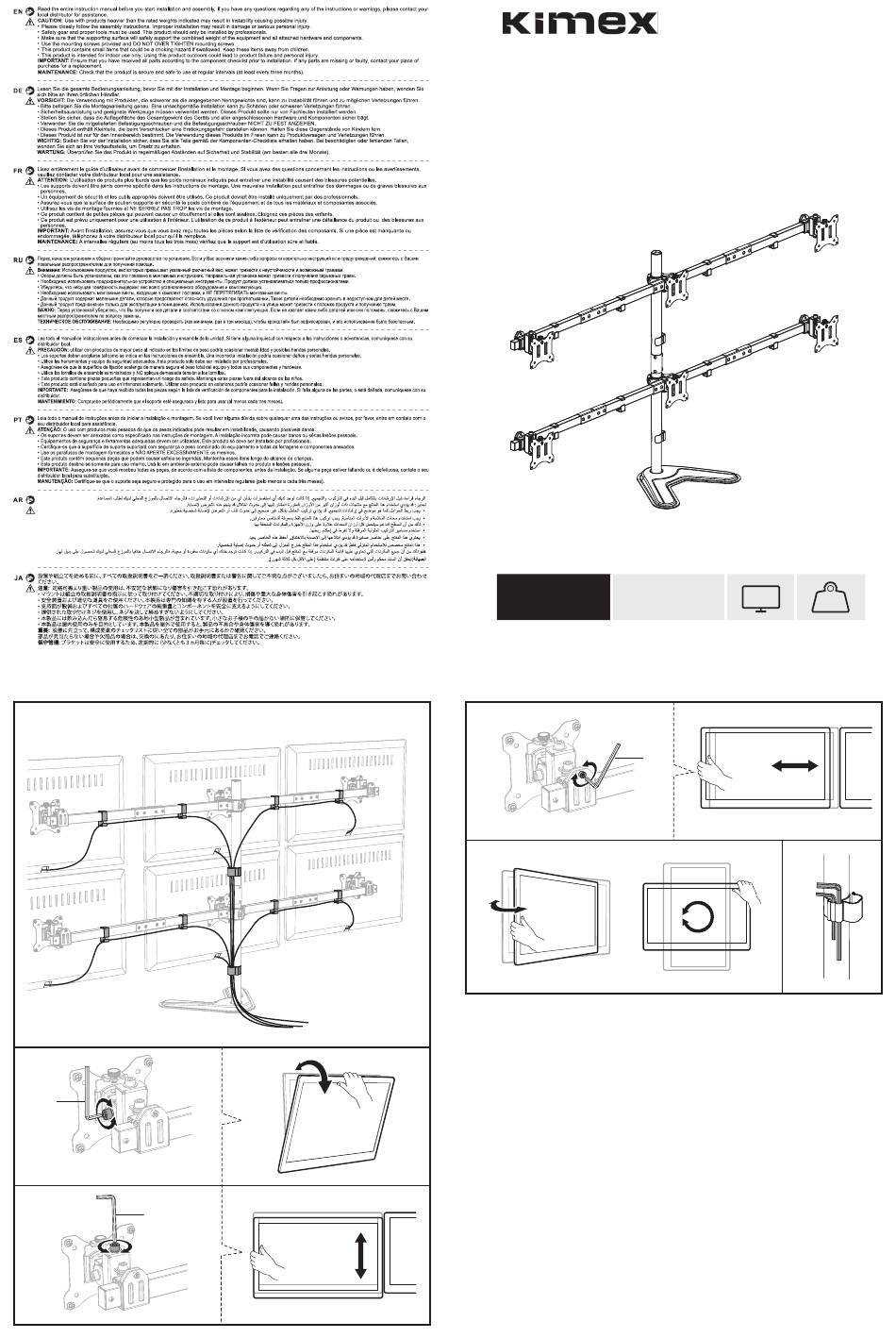

Page 1
Manuel d'instruction / Instruction manual V1 Monitor desk stand Support de bureau pour 6 écrans moniteur 17''-32'' 015-1156 32" VESA (7kg)x6 (7kg)x6 75x75 100x100 (15.4lbs)x6 (15.4lbs)x6 RATED RATED Note:Ifthedisplaydoesnotstopatyour Remarque : Si l'écran ne s'arrête pas à la position souhaitée, desiredposition,tightenthescrewsasshown....
Page 2
M-A (x4) M-B (x4) P-A (x6) P-B (x4) P-C (x2) M4x12 M4x16 M6x10 M4x5 M8x50 C (x1) D (x1) E (x6) F (x4) M-C (x4) M-D (x4) M5x12 M5x16 P-D (x4) P-E (x2) P-F (x24) M6x27 G (x4) H (x4) I (x2) J (x6) K (x4)
