- Page 1 Multi-Bike XL Holds up to 6 Bikes INSTALLATION MANUAL K0030.01...
-
Page 2: Table Of Contents
................Step 5: Attach Multi-Bike XL Frame to MyLifters... -
Page 3: Safety Overview
If you are not confident locating and anchoring items to ceiling joists do not attempt this installation. 3. Do not exceed the stated weight limits. The weight limit is based on Smart Track and Multi-Bike XL rack being anchored to a wood framed garage. -
Page 4: Mylifter Safety
Avoid Electric Shock • To avoid risk of electric shock and/or other potential injury DO NOT disassemble or open any SmarterHome device. All SmarterHome products are designed for indoor use only. Failure to follow these safety instructions could result in... -
Page 5: What's In The Box
What’s in the Box (Drawings below are not shown to scale) Modular Frame (x2) Frame Connector (x1) Pulley (x2) Cotter Pins (x12) Clevis Pins (x12) Hook (x6) 4 Foot Lifting Strap (x12) Required Tools (not included) • Drill • Ratchet with ½” Socket •... -
Page 6: Multi-Bike Xl Installation
Multi-Bike XL Installation | Assemble Multi-Bike XL Frame Step 1: Assemble Multi-Bike XL Frame 1. Locate the two modular frame pieces, the frame connector piece and the four cotter and clevis pins (included with the frame connector piece). 2. On a work bench, or the floor, place the two modular frame pieces end to end. Insert the frame connector piece into the modular frame where the two frame pieces meet. - Page 7 Multi-Bike XL Installation | Assemble Multi-Bike XL Frame Step 1: Assemble Multi-Bike XL Frame (cont.) 4. Locate the two pulley blocks and the included cotter and clevis pins. 5. From either end of the frame (made up of the joined modular frame pieces from the previous step), count eight holes in from the end and place a pulley on the frame and secure it with a cotter and clevis pin.

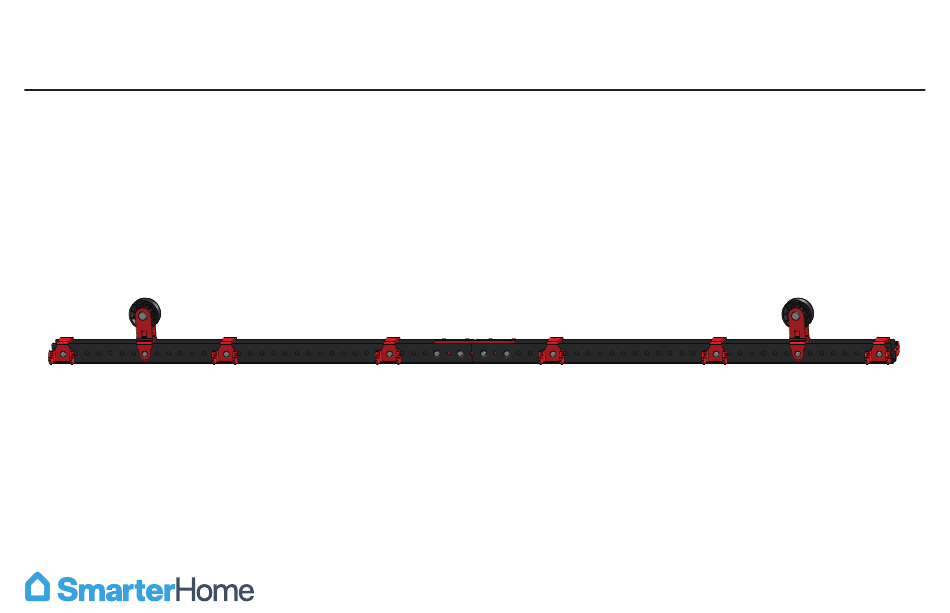

- Page 8 Multi-Bike XL Installation | Assemble Multi-Bike XL Frame Step 1: Assemble Multi-Bike XL 2 BIKES / HOOKS Frame (cont.) 7. The placement of hooks depends 52.50” 70 holes on the number of bikes you plan to lift and store. Refer to fig 1.3 to...
-
Page 9: Step 2: Install Smart Track
Multi-Bike XL Installation | Smart Track Installation Overview Step 2: Install Smart Track • Lag bolts used to secure Smart Track must be centered in ceiling joists. • If you are not confident locating and anchoring items to ceiling joists do not STOP: attempt this installation. - Page 10 Multi-Bike XL Installation | Install Smart Track Step 2: Install Smart Track (cont.) JOIST DIRECTION 1. Determine where to install your Multi-Bike XL rack. Be sure to take into consideration garage doors, overhead lights etc. when choosing your install location. Keep in mind you’ll also need access to at least one power outlet to power the MyLifters.
- Page 11 Multi-Bike XL Installation | Install Smart Track Step 2: Install Smart Track (cont.) 7. Place the Smart Track over the ceiling joist center mark you made and use a pencil to mark where the lag bolts will be installed so you can drill the pilot hole.
- Page 12 Multi-Bike XL Installation | Install Smart Track Step 2: Install Smart Track (cont.) 11. If not already done, repeat steps 4-6 to find the center of the joist where you will secure the other end of the Smart Track. 12 Similar to the other end of Smart Track, place the Smart Track over the center mark you've just made for the ceiling joist and use a pencil to mark where the lag bolt should be installed.
-
Page 13: Step 3: Install Mylifter Hoists
Multi-Bike XL Installation | Install MyLifter Hoists Step 3: Install MyLifter Hoists 1. Before installing the MyLifters onto the Smart Track, pair to each MyLifter using the MyLifter app. This is important to ensure you can troubleshoot any potential connection/pairing issues before installing them. - Page 14 'Multi-Bike XL' in the "Name the Group" section. (fig 3.4 and 3.5) 10. Tap “Create Group” at the bottom of the screen and then “Got It” when 10.
- Page 15 15. Distance between the MyLifters on the Smart Track should match the 42” 42” distance between the two pulleys on the Multi-Bike XL frame. This is key to proper MyLifter operation and ensures the cables will be as vertical as possible.
-
Page 16: Step 4: Install Power Adapters And Cable Management Clips
Multi-Bike XL Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips 1. For each MyLifter you’ve installed on the Smart Track, determine where the Power Adapter should be installed. The preferred location, if possible, is adjacent to the MyLifter. - Page 17 Multi-Bike XL Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips (cont.) 5. To secure and organize the cables, determine where to place the cable management clips. fig 4.3 fig 4.4 6.
- Page 18 Multi-Bike XL Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips (cont.) 10. Once all Power Adapters have been installed, connect them to the closest outlet (this may be a wall outlet or the power pass through on another Power Adapter).
-
Page 19: Step 5: Attach Multi-Bike Xl Frame To Mylifters
Multi-Bike XL off the floor. Now set the Smart Low point. (fig 5.1) 6. To make further adjustments and ensure your Multi-Bike XL is level, tap the “Help” button and select “Level Group”. Then tap on the MyLifter you’d like to adjust and make the necessary adjustments. - Page 20 10. The first time you raise the Multi-Bike XL to the ceiling be sure to set the Smart High point. (fig 5.1 on previous page) This will keep you from running items into the ceiling.
