SmarterHome Universal HD Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Universal HD
INSTALLATION MANUAL
K0032.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Universal HD and is the answer not in the manual?

Questions and answers

Related Manuals for SmarterHome Universal HD

Summary of Contents for SmarterHome Universal HD

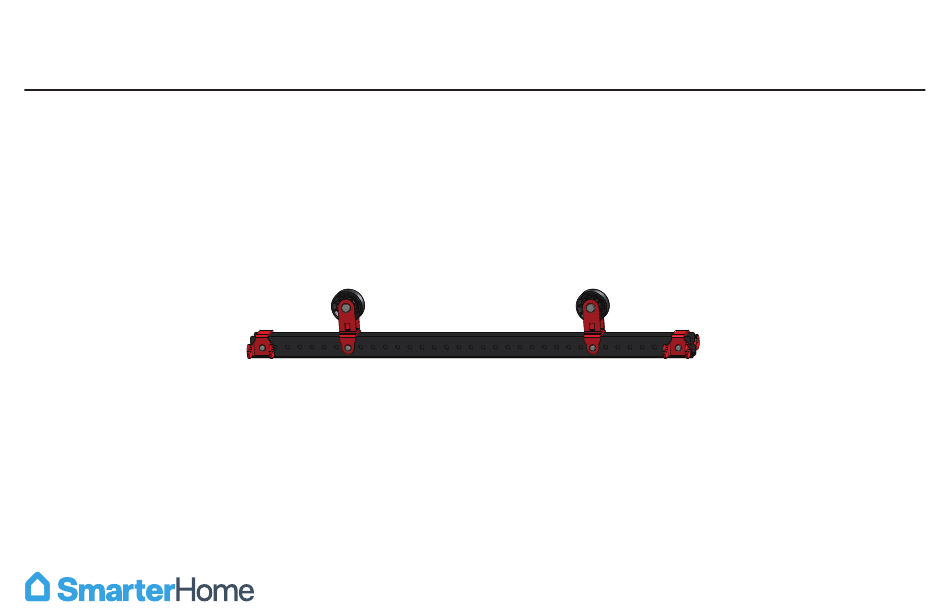

  • Page 1 Universal HD INSTALLATION MANUAL K0032.01...

  • Page 2: Table Of Contents

    ................Step 5: Attach Universal HD Frame to MyLifters...

  • Page 3: Safety Overview

    If you are not confident locating and anchoring items to ceiling joists do not attempt this installation. 3. Do not exceed the stated weight limits. The weight limit is based on Smart Track and Universal HD rack being anchored to a wood framed garage.

  • Page 4: Mylifter Safety

    Avoid Electric Shock • To avoid risk of electric shock and/or other potential injury DO NOT disassemble or open any SmarterHome device. All SmarterHome products are designed for indoor use only. Failure to follow these safety instructions could result in...

  • Page 5: What's In The Box

    What’s in the Box (Drawings below are not shown to scale) Modular Frame (x1) Pulley (x2) Cotter Pins (x4) Clevis Pins (x4) Hook (x2) 10 Foot Lifting Strap (x2) Required Tools (not included) • Drill • Ratchet with ½” Socket •...

  • Page 6: Universal Hd Installation

    Universal HD Installation | Assemble Universal HD Frame Step 1: Assemble Universal HD Frame 1. Locate the two pulley blocks and the included cotter and clevis pins. 2. From either end of the frame, count eight holes in from the end and place a pulley on the frame and secure it with a cotter and clevis pin.

  • Page 7: Step 2: Install Smart Track

    Universal HD Installation | Smart Track Installation Overview Step 2: Install Smart Track • Lag bolts used to secure Smart Track must be centered in ceiling joists. • If you are not confident locating and anchoring items to ceiling joists do not STOP: attempt this installation.
  • Page 8 Universal HD Installation | Install Smart Track Step 2: Install Smart Track (cont.) JOIST DIRECTION 1. Determine where to install your Universal HD rack. Be sure to take into consideration garage doors, overhead lights etc. when choosing your install location. Keep in mind you’ll also need access to at least one power outlet to power the MyLifters.
  • Page 9 Universal HD Installation | Install Smart Track Step 2: Install Smart Track (cont.) 7. Place the Smart Track over the ceiling joist center mark you made and use a pencil to mark where the lag bolts will be installed so you can drill the pilot hole.
  • Page 10 Universal HD Installation | Install Smart Track Step 2: Install Smart Track (cont.) 10. If not already done, repeat steps 4-6 to find the center of the joist where you will secure the other end of the Smart Track. 11. Similar to the other end of Smart Track, place the Smart Track over the center mark you've just made for the ceiling joist and use a pencil to mark where the lag bolt should be installed.

  • Page 11: Step 3: Install Mylifter Hoists

    Universal HD Installation | Install MyLifter Hoists Step 3: Install MyLifter Hoists 1. Before installing the MyLifters onto the Smart Track, pair to each MyLifter using the MyLifter app. This is important to ensure you can troubleshoot any potential connection/pairing issues before installing them.
  • Page 12 'Universal HD' in the "Name the Group" section. (fig 3.4 and 3.5) 9. Tap “Create Group” at the bottom of the screen and then “Got It” when 9.
  • Page 13 14. Distance between the MyLifters on the Smart Track should match the 15” distance between the two pulleys on the Universal HD frame. This is key to proper MyLifter operation and ensures the cables will be as vertical as possible.

  • Page 14: Step 4: Install Power Adapters And Cable Management Clips

    Universal HD Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips 1. For each MyLifter you’ve installed on the Smart Track, determine where the Power Adapter should be installed. The preferred location, if possible, is adjacent to the MyLifter.
  • Page 15 Universal HD Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips (cont.) 5. To secure and organize the cables, determine where to place the cable management clips. fig 4.3 fig 4.4 6.
  • Page 16 Universal HD Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips (cont.) 11. Once all Power Adapters have been installed, connect them to the closest outlet (this may be a wall outlet or the power pass through on another Power Adapter).

  • Page 17: Step 5: Attach Universal Hd Frame To Mylifters

    Universal HD off the floor. Now set the Smart Low point. (fig 5.1) 5. To make further adjustments and ensure your Universal HD is level, tap the “Help” button and select “Level Group”. Then tap on the MyLifter you’d like to adjust and make the necessary adjustments.
  • Page 18 10. Review the safety instructions at the beginning of this manual to ensure safe operation of your Universal. CAUTION The Universal HD Lifter has a net weight lifting capacity of 190 pounds. Attempting to lift more weight may cause property damage, serious personal injury, or death.
