SmarterHome Universal XL Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

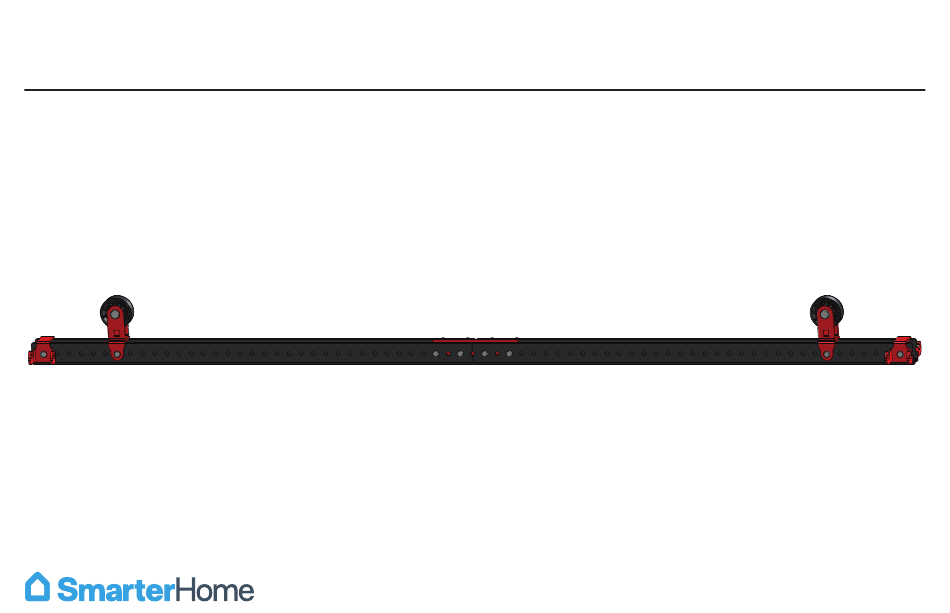

Universal XL
INSTALLATION MANUAL
K0033.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Universal XL and is the answer not in the manual?

Questions and answers

Related Manuals for SmarterHome Universal XL

Summary of Contents for SmarterHome Universal XL

  • Page 1 Universal XL INSTALLATION MANUAL K0033.01...

  • Page 2: Table Of Contents

    ................Step 5: Attach Universal XL Frame to MyLifters...

  • Page 3: Safety Overview

    If you are not confident locating and anchoring items to ceiling joists do not attempt this installation. 3. Do not exceed the stated weight limits. The weight limit is based on Smart Track and Universal XL rack being anchored to a wood framed garage.

  • Page 4: Mylifter Safety

    Avoid Electric Shock • To avoid risk of electric shock and/or other potential injury DO NOT disassemble or open any SmarterHome device. All SmarterHome products are designed for indoor use only. Failure to follow these safety instructions could result in...

  • Page 5: What's In The Box

    What’s in the Box (Drawings below are not shown to scale) Modular Frame (x2) Frame Connector (x1) Pulley (x2) Cotter Pins (x8) Clevis Pins (x8) Hook (x2) 10 Foot Lifting Strap (x2) Required Tools (not included) • Drill • Ratchet with ½” Socket •...

  • Page 6: Universal Xl Installation

    Universal XL Installation | Assemble Universal XL Frame Step 1: Assemble Universal XL Frame 1. Locate the two modular frame pieces, the frame connector piece and the four cotter and clevis pins (included with the frame connector piece). 2. On a work bench, or the floor, place the two modular frame pieces end to end. Insert the frame connector piece into the modular frame where the two frame pieces meet.
  • Page 7 Universal XL Installation | Assemble Universal XL Frame Step 1: Assemble Universal XL Frame (cont.) NOTE 5. Locate the two pulley blocks and the included cotter and clevis pins. NOTE: Make sure the clevis pins 6. From either end of the frame (made up of the joined modular frame pieces...

  • Page 8: Step 2: Install Smart Track

    Universal XL Installation | Smart Track Installation Overview Step 2: Install Smart Track • Lag bolts used to secure Smart Track must be centered in ceiling joists. • If you are not confident locating and anchoring items to ceiling joists do not STOP: attempt this installation.
  • Page 9 Universal XL Installation | Install Smart Track Step 2: Install Smart Track (cont.) JOIST DIRECTION 1. Determine where to install your Universal XL rack. Be sure to take into consideration garage doors, overhead lights etc. when choosing your install location. Keep in mind you’ll also need access to at least one power outlet to power the MyLifters.
  • Page 10 Universal XL Installation | Install Smart Track Step 2: Install Smart Track (cont.) 7. Place the Smart Track over the ceiling joist center mark you made and use a pencil to mark where the lag bolts will be installed so you can drill the pilot hole.
  • Page 11 Universal XL Installation | Install Smart Track Step 2: Install Smart Track (cont.) 10. If not already done, repeat steps 4-6 to find the center of the joist where you will secure the other end of the Smart Track. 11. Similar to the other end of Smart Track, place the Smart Track over the center mark you've just made for the ceiling joist and use a pencil to mark where the lag bolt should be installed.

  • Page 12: Step 3: Install Mylifter Hoists

    Universal XL Installation | Install MyLifter Hoists Step 3: Install MyLifter Hoists 1. Before installing the MyLifters onto the Smart Track, pair to each MyLifter using the MyLifter app. This is important to ensure you can troubleshoot any potential connection/pairing issues before installing them.
  • Page 13 Universal XL Installation | Install MyLifter Hoists Step 3: Install MyLifter Hoists (cont.) 6. Insert the two included quick-release pins through the holes in the MyLifter frame and the Smart Track. Make sure the pins go all the way through both sides of the MyLifter frame and Smart Track.

  • Page 14: Step 4: Install Power Adapters And Cable Management Clips

    Universal XL Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips 1. For each MyLifter you’ve installed on the Smart Track, determine where the Power Adapter should be installed. The preferred location, if possible, is adjacent to the MyLifter.
  • Page 15 Universal XL Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips (cont.) 5. To secure and organize the cables, determine where to place the cable management clips. fig 4.3 fig 4.4 6.
  • Page 16 Universal XL Installation | Install Power Adapters and Cable Management Clips Step 4: Install Power Adapters and Cable Management Clips (cont.) 11. Once all Power Adapters have been installed, connect them to the closest outlet (this may be a wall outlet or the power pass through on another Power Adapter).

  • Page 17: Step 5: Attach Universal Xl Frame To Mylifters

    Universal XL off the floor. Now set the Smart Low point. (fig 5.1) 5. To make further adjustments and ensure your Universal XL is level, tap the “Help” button and select “Level Group”. Then tap on the MyLifter you’d like to adjust and make the necessary adjustments.
  • Page 18 9. The first time you raise the Universal XL to the ceiling be sure to set the Smart High point. (fig 5.1 on previous page) This will keep you from running items into the ceiling. Keep in mind the high point may need to be adjusted if the height of the items you are storing changes.
