Installation and Operating Instructions
SJE VERTICALMASTER
SJE VERTICALMASTER
SJE-Rhombus
This equipment is suitable for Category II installations, rated to 52ºC, and protected by double insulation.
Approved for use in non-potable water.

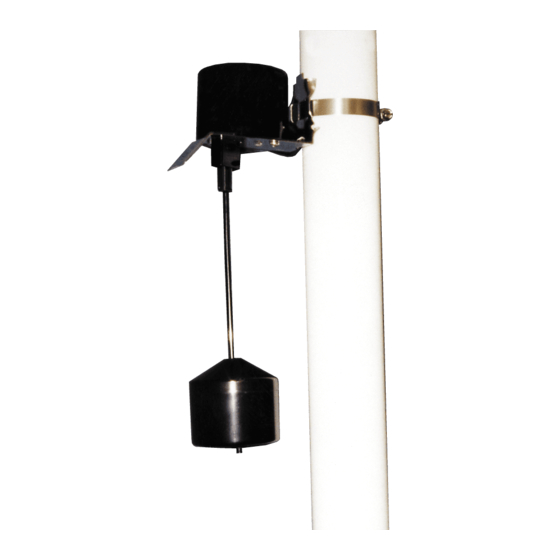

SJE VERTICALMASTER
PUMP SWITCH
®
CABLE: Flexible 16 gauge, 2 conductor (UL, CSA) SJOW,
water-resistant (CPE)
MOUNTING BRACKET & HOSE CLAMP: Stainless steel
LIFT ROD: Acetal
LIFT ROD STOP PIN: Nylon
FLOAT STOP GROMMET: Neoprene
SWITCH AND FLOAT HOUSING: high impact, corrosion resistant, PVC
Switch and Float Overall: 30.5 cm high x 12.7 cm x 7.6 cm wide
Switch Housing: 5 cm high x 7.1 cm wide, has IPX7 protection
Float Housing: 6.4 cm high x 6.9 cm wide
ELECTRICAL:
120 VAC Rated Voltage:
Maximum Pump Running Current: 13 amps
Maximum Pump Starting Current: 60 amps
Frequency: 50/60 Hz
230 VAC Rated Voltage:
Maximum Pump Running Current: 13 amps
Maximum Pump Starting Current: 60 amps
Frequency: 50/60 Hz
Switch must be used with pumps that provide integral thermal
overload protection. Switch is not recommended for controlling
electric loads less than 2A, 12 VAC or non-arcing electric loads.
For complete terms and conditions, please visit www.sjerhombus.com.
PUMP SWITCH
®
II PUMP SWITCH
®
pump switches provide automatic control of pumps in
®
sump, effluent, and non-potable water applications .

SPECIFICATIONS

SJE-RHOMBUS
FIVE-YEAR LIMITED WARRANTY
®
Five-Year Limited Warranty.
TM
U.S. Patent No. 5,155,311 & Canadian Patent Pending.
U.S. Patent No. 6,140,925 & Foreign Patents Pending.
SJE VERTICALMASTER
II PUMP SWITCH
®
CABLE:
Flexible 18 gauge, 2 conductor (UL, CSA) SJOW, water-resistant
(CPE)
MOUNTING BRACKET & HOSE CLAMP: Stainless steel
LIFT ROD: Acetal
LIFT ROD STOP PIN: Nylon
FLOAT STOP GROMMET: Neoprene
SWITCH AND FLOAT HOUSING: high impact, corrosion resistant,
PVC Switch and Float Overall: 30.5 cm high x 12.7 cm x 7.6 cm wide
Switch Housing: 5 cm high x 7.1 cm wide, has IPX7 protection
Float Housing: 6.4 cm high x 6.9 cm wide
ELECTRICAL:
125 VAC Rated Voltage:
Maximum Pump Running Current: 10 amps
Maximum Pump Starting Current: 60 amps
Frequency: 50/60 Hz
250 VAC Rated Voltage:
Maximum Pump Running Current: 10 amps
Maximum Pump Starting Current: 60 amps
Frequency: 50/60 Hz
Switch must be used with pumps that provide integral thermal
overload protection. Switch is not recommended for controlling
electric loads less than 100 miliamps, 12 VAC or non-arcing
electric loads.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VERTICALMASTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SJE Rhombus VERTICALMASTER

  • Page 1 Installation and Operating Instructions SJE VERTICALMASTER PUMP SWITCH ® U.S. Patent No. 5,155,311 & Canadian Patent Pending. SJE VERTICALMASTER II PUMP SWITCH ® U.S. Patent No. 6,140,925 & Foreign Patents Pending. SJE-Rhombus pump switches provide automatic control of pumps in ®...
  • Page 2 EXPLOSION OR FIRE HAZARD ELECTRICAL SHOCK HAZARD Disconnect power before installing or servicing this Do not use with flammable liquids. Install in accordance with ANSI/NFPA 70. product. A qualified service person must install and service this product according to applicable electrical Suitable for usage with intrinsically safe circuit extensions as defined by UL 698A.
