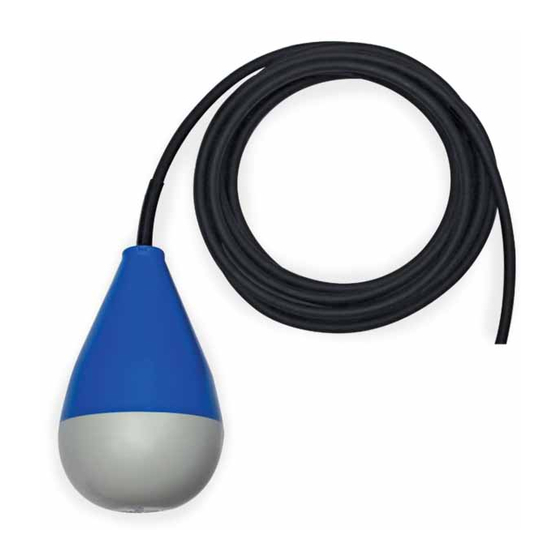

The SJE MegaMaster™ control float is a mechanically-activated, narrow-angle control float designed for municipal
water and sewage applications. The internal switching mechanism has unique gold cross-point contacts for
reliable control of current up to 1 A. The unique two-tone float housing offers easy identification.
Liquid density
Cable
Housing
Liquid temperature
Maximum Electric Load
Switching angle
Electrical life
Protection type
Approval
®
SJE-RHOMBUS
warrants to the original consumer that this
product shall be free of manufacturing defects for two years
after the date of consumer purchase. During that time period
and subject to the conditions set forth below, SJE-RHOMBUS
will repair or replace, for the original consumer, any component
which proves to be defective due to defective materials or
workmanship of SJE-RHOMBUS
THIS WARRANTY DOES NOT APPLY: (A) to damage due to
lightning or conditions beyond the control of SJE-RHOMBUS
(B) to defects or malfunctions resulting from failure to properly
install, operate or maintain the unit in accordance with printed
instructions provided; (C) to failures resulting from abuse,
misuse, accident, or negligence; (D) to units which are not
installed in accordance with applicable local codes, ordinances,
or accepted trade practices, and (E) to units repaired and/or
modified without prior authorization from SJE-RHOMBUS
Periodically check to see that the float is free to move and operate the switch. Clean the float switch if necessary.
Products returned must be cleaned, sanitized, or decontaminated as necessary prior to shipment to ensure that employees
will not be exposed to health hazards in handling said material. All applicable laws and regulations shall apply.
Installation and Operating Instruction
SJE MegaMaster
SJE-RHOMBUS
®
.
Unit b2-6 District A, Weiting Industrial Workplace NO.9 Weixin Road, Weiting Town Suzhou Industrial Park
Phone: (86) 512 6507 2880
Control Float
TM
TECHNICAL DATA
Between 0.95 and 1.10 g/cm³
H05 RNF 3×0.75mm
Polypropylene (PP)
Min. 0℃; Max. 60℃
1 A, 250 VAC and 1mA, 4 VDC
100000 times
IP68,2bar
TWO-YEAR LIMITED WARRANTY
®
ELECTRICAL WIRING AND SERVICING OF THIS PRODUCT
MUST BE PERFORMED BY A LICENSED ELECTRICIAN.
®
TO OBTAIN WARRANTY SERVICE: The consumer shall
assume
all
reinstallation, and freight. Any item to be repaired or replaced
under this warranty must be returned to SJE-RHOMBUS®, or
such place as designated by SJE-RHOMBUS
®
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
;
FITNESS ARE LIMITED TO THE DURATION OF THIS
WRITTEN WARRANTY. SJE-RHOMBUS® SHALL NOT, IN
ANY MANNER, BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES AS A RESULT OF A
BREACH OF THIS WRITTEN WARRANTY OR ANY IMPLIED
WARRANTY.
®
.
MAINTENENCE
NOTICE!
SJE-Rhombus(Suzhou) Co., Ltd.
Suzhou, Jiangsu Province, China
Fax: (86) 512 6507 2881
E-mail:
2
10°
CE
responsibility
and
expense
sjesales@sjerhombus.cn
for
removal,
®
.
Instl. Instr. PN 1042224C
©SJE-Rhombus
07/05
