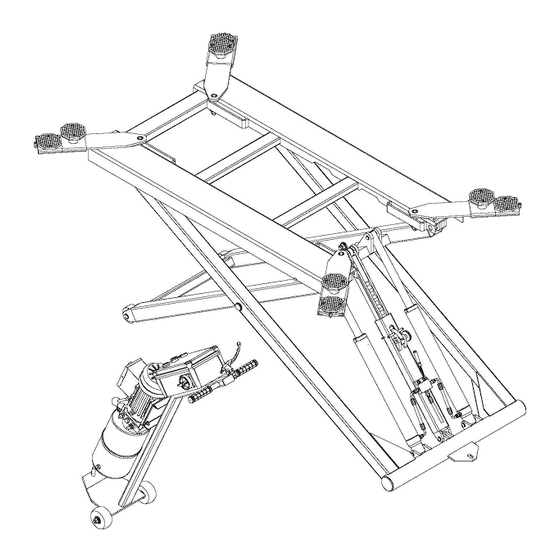

- Page 1 STD-3128 PORTABLE FOUR ARMS SCISSOR LIFT USE AND MAINTENANCE MANUAL Lifting capacity 2800 kg Lifting height 1400 mm Gross weight 430 kg Lifting time 35 s Manual safety Safety catch catch...
- Page 2 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 TABLE OF CONTENTS CHAPTER 1 : PACKING, TRANSPORT AND STORAGE CHAPTER 2 : DESCRIPTION OF THE MACHINE CHAPTER 3 : TECHNICAL SPECIFICATIONS CHAPTER 4 : SAFETY CHAPTER 5 : INSTALLATION CHAPTER 6 : OPERATIONS AND USE...
-
Page 3: Chapter 1 : Packing, Storage And Transport
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 1 : PACKING, STORAGE AND TRANSPORT ALL PACKING, LIFTING, HANDLING, TRANSPORT AND UNPACKING ORERATIONS ARE TO BE PERFORMED EXCLUSIVELY BY EXPERT PERSONNEL WITH KNOWLEDGE OF THE LIFT AND THE CONTENTS OF THIS MANUL... - Page 4 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 STORAGE Pack boxes always be kept in a covered, protected place, at a temperature between -10°C And +40°C, and must not be exposed to direct sunlight and must not be caught in the rain.
-
Page 5: Conserving The Manual
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 This symbol expresses connection to the ground on the earth wire of the electrical box CONSERVING THE MANUAL The manual is an integral part of the lift, which it should always accompany even if the unit is sold .The manual must be kept in the vicinity of the lift in an easily accessible place so that the operator... -
Page 6: Chapter 2 : Description Of The Machine
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 2 : DESCRIPTION OF THE MACHINE The hydraulic movable lift is can work on a flat ground or the grade of a slop less than or equal 3º. The lift consists of the following main parts: Fixed structure (frame + arms);... -
Page 7: Hydraulic Power Unit
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 FIXED STRUCTURE This structure consists of: The frame and the arms are all combined with steel plate and several of the profiled bar, which are the basal components of the movable lift. MOVING UNITS Each unit consists of: Six idler wheels. -
Page 8: Safety Device
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 SAFETY DEVICE The safety devices include: Arms locking system Support These safety devices will be described in further detail in the following chapters LINCOS AUTOMOTIVE TOOLS ®... -
Page 9: Chapter 3 : Technical Specifications
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 3 : TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATION Model STD-3128 Capacity 2800 kg Lifting max height 1400 mm Total width 1678 mm The total length 2550 mm Lift time/descent time <35 s Gross weight 430 kg Noise ≤70db... -
Page 10: Hydraulic Diagram
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 HYDRAULIC DIAGRAM Hydraulic cylinder Anti-leakage valve One-way valve Relief valve Lowering valve Throttle valve Gear pump Motor Filter The oil reservoir contains hydraulic mineral oil in accordance with ISO/DIN 6743/4 with a level of contamination according to ISO 4406, for example IP HYDRUS OIL 32;... - Page 11 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 MAXIMUM DIMENSIONS OF VEHICLES TO BE LIFTED Max width: 2400mm Max wheelbase: 3000mm The underbody of cars with low ground clearance may interfere with the structure of the lift .Pay particular attention in the case of low body sports cars.
-
Page 12: Chapter 4 : Safety
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 4 : SAFETY It is vital to read this chapter of the manual carefully and from beginning to end as it contains important information regarding the risks that the operator and the maintenance fi tter may be exposed to in the eventuality that the lift is used incorrectly. -
Page 13: General Precautions
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 GENERAL PRECAUTIONS The operator and the maintenance fitter are required to observe the prescriptions of accident prevention legislation in force in the country of installation of the lift. Furthermore, the operator and the maintenance fitter must: Always work in the scheduled working area as shown in the manual Never remove deactivate the guards and mechanical, electrical, or other types of safety devices. - Page 14 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 WARNING DO NOT ATTEMPT TO MOVE THE TOTARY TABLE AND THE VEHICLE SUPPORT WHEN IT IS LIFTING. It is important to position the vehicle on the lift so that the weight is correctly distributed on the arms.
-
Page 15: Risk Of Electric Shock
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 RISK OF CRUSHING (OPEARATOR) Possible if the operator controlling the lift is not in the specified position at the command panel. When the platform and the vehicle are descending, the operator must never be partly or completely underneath the moving structure. - Page 16 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 SLIPPING This risk may arise due to spillage of lubricants in the surrounding area. ALWAYS KEEPS THE AREA SURROUNDING THE LIFT CLEAN BY REMOVING ALL OIL SPILLS. To avoid the risk of slipping, make use of the recommended personal protection (anti-slip footwear).
-
Page 17: Chapter 5 : Installation
PERSONAL INJURY AND/OR IRREPERABL DAMAGE TO THE LIFT UNIT MAY RESULT. INSTALLATION REQUISITE CHECKLIST The STD-3128 can work inside only. It is also considered that the place of installation must be well clear of areas destined to washing or painting, and away from solvent or paint storage areas or areas where there is a risk of potentially explosive atmosphere. - Page 18 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 SET UP WARNING THESE OPERATIONS MUST ALWAYS BE PERFORMED BY TECHNICIONS OF THE AUTRORIZ SERVICE CENTRE INDICATED IN THE FRONT OF THIS MANUAL POSTS ASSEMBLING Mount the command post Assemble the hydraulic station on the command post, with the screws fi xed on the installation panel of the hydraulic station.
-
Page 19: Chapter 6 : Operations And Use
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 6 : OPERATIONS AND USE LOCK DOWN The lift Commands (control box) is shown UP BUTTON If pressed, activates the electric motor and mechanisms that lift the carriage. DOWN BUTTON HANDLES If the handle moved, the overload valve will release the press of the system. The lift will descend. - Page 20 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 LIFTING Press the up push button until reaching the required height. As the carriages are raised the safety wedges are inserted automatically into each the limit block. LOCK Once the required height has been reached, press the lower handle. The movement is stopped automatically when the safety wedge rests on the level of the first slot that they come in contact with while the carriages are coming down.
-
Page 21: Chapter 7 : Maintenance
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 7 : MAINTENANCE PRECAUTIONS Maintenance must be carried out only by skilled personnel who are very familiar with the lift. When performing maintenance on the lift, follow all the necessary precautions to prevent the lift from being started accidentally: 1. -
Page 22: Periodic Maintenance
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 PERIODIC MAINTENANCE OPERATION FREQUENCY To keep the lift working at full effi ciency, follow the indicated maintenance schedule. The manufacturer will not be responsible and will not honor the warranty as a result of non-compliance with the instructions indicated above. - Page 23 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 EVERY 6-MONTH Hydraulic Check the contamination or aging level of the oil. Contaminated oil is the main cause of malfunctions of the valves and leads to a brief service life of the gear pumps.
-
Page 24: Chapter 8 : Storing
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 8 : STORING If the machine as to be stored for a long time you have to: 1. Go down the platforms and no heavy object on them. 2. Disconnect the machine from all power sources. -
Page 25: Chapter 9 : Troubleshooting
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 CHAPTER 9 : TROUBLESHOOTING TROUBLESHOOTING GUIDE Troubleshooting and possible repairs require absolute compliance with ALL THE SAFETY PRECAUTIONS indicated in chapter 7 “MAINTENANCE” and chapter 4 “SAFETY” TROUBLESHOOTING CHECKLIST Phenomenon Reason Method Friction mark inside column... - Page 26 PORTABLE FOUR ARMS SCISSOR LIFT STD-3128 Lift go down itself after lifting Cylinder seal is bad Replace seals Check the oil hose for leaks Change the oil hose One way valve is not sealed Decompose, clean, remove, or properly replace...
