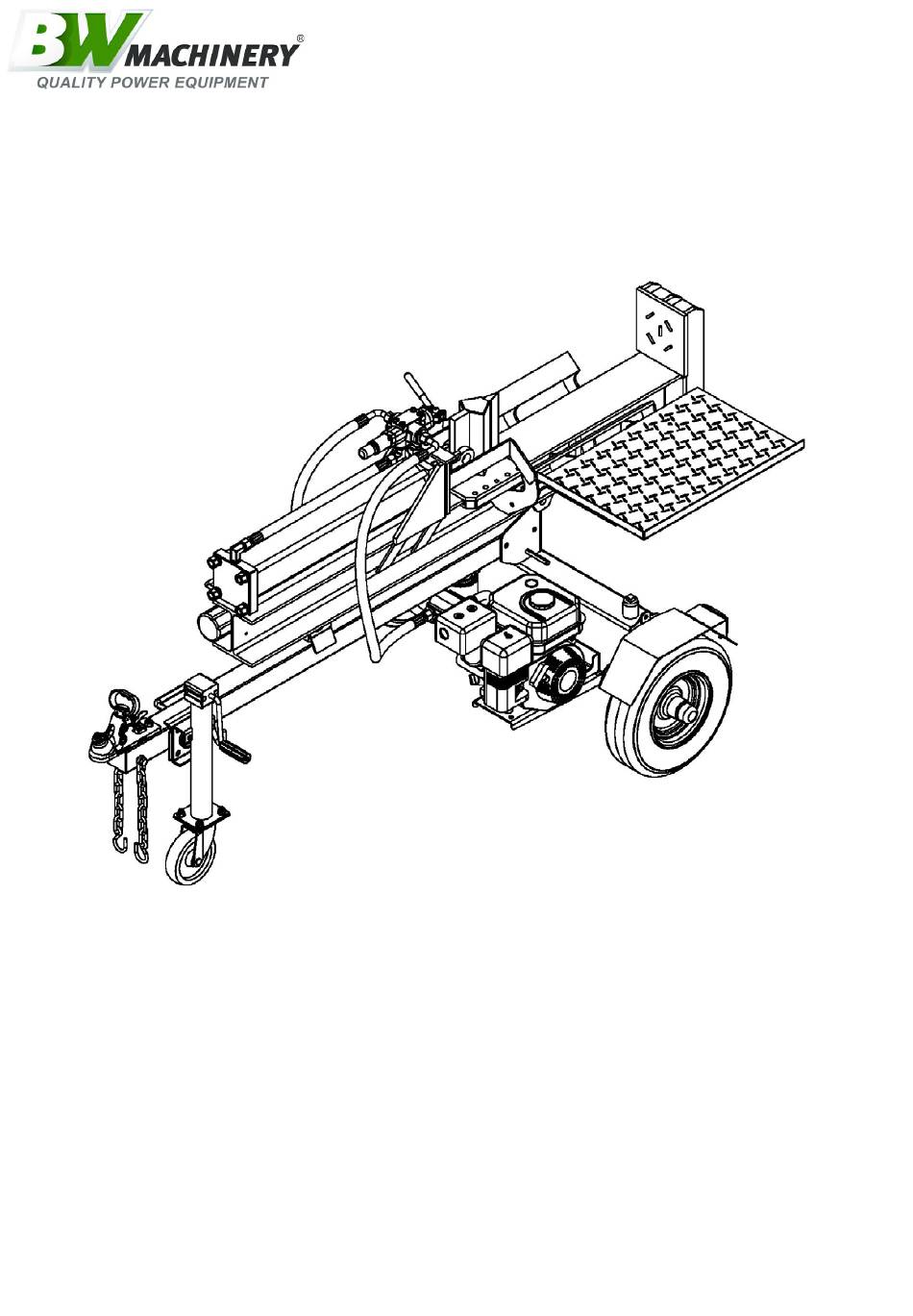

BWM 30 Ton Log Splitter
User's Manual
BWM LSE30 Essential Series
Please read through this owner's manual carefully before using the product, to ensure the
safety of yourself and others.
*Due to continuing improvements, actual product may differ slightly from the product described herein.
Version 202301
Advertisement
Table of Contents
Related Manuals for BW Machinery BWM LSE30 Essential Series
Summary of Contents for BW Machinery BWM LSE30 Essential Series
- Page 1 BWM 30 Ton Log Splitter User’s Manual BWM LSE30 Essential Series Please read through this owner’s manual carefully before using the product, to ensure the safety of yourself and others. *Due to continuing improvements, actual product may differ slightly from the product described herein.
-
Page 2: Table Of Contents
Index 1. General Warnings and Rules ..............3 2. Hazard Signal Definitions ................ 4 3. Controls and Features Identification ............5 4. Assembly Instructions ................7 5. Operating Instructions ................. 123 6. Maintenance and Storage ..............17 7. Troubleshooting ..................18 8. -
Page 3: General Warnings And Rules
GENERAL WARNINGS READ and UNDERSTAND this manual completely before using 30 Ton Log Splitter. Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the log splitter could result in serious injury to the operator or bystanders. Operation Warnings ... -
Page 4: Hazard Signal Definitions
Hazard Signal Word Definitions This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury. -
Page 5: Controls And Features Identification
Controls and Features Identification Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. 1.) 2” 50mm Coupler. Attaches the log splitter to your vehicle. Fits only 50mm hitch balls. - Page 6 WARNING Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage . Engine Shipped Without Oil. Before starting engine, fill with 600ml of Briggs & Stratton SAE30 engine oil or Honda 10W30 engine oil, depending on your model.
-
Page 7: Assembly Instructions
Assembly Instructions 30 TON LOG SPLITTER ASSEMBLY Set the shipping crate on a solid flat surface and carefully remove the lid. Use two people and take all parts out of the shipping crate and inspect the components to ensure there are no missing pieces before starting to assemble the log splitter follow steps 1 through 9. - Page 8 STEP 2: Attach Tow Bar to the Oil Tank 1. Fix the tow bar (#58) to the oil tank by using 2 sets of hex bolt M12x100 (#60), flat washer Ø12 (#5) and nylon lock nut M12 (#61). STEP 3: Assemble Beam and Tow Bar and Hydraulic Hose 1.
- Page 9 STEP 4: Attach Engine and Hydraulic Hose 1. Assemble the engine (#90) to the engine mounting plate by using hex bolt M8x65 (#86), flat washer Ø8 (#47), lock washer Ø8 (#89) and nylon lock nut M8 (#48). Place 4polyurethane blocks (#87) and large flat washer Ø10 (#88) between the engine and mounting plate.
- Page 10 STEP 6: Attach Wheel Fenders 1. Attach the left & right fenders (#49 & 85) to the oil tank by using hex bolt M10x30 (#82), flat washer Ø10 (#40), lock washer Ø10 (#84) and nylon lock nut M10 (#39). Place rubber washer (#83) between the fenders and oil tank.
- Page 11 DO NOT operate the log splitter inside any building, enclosure or compartment. DO NOT allow exhaust fumes to enter a confined area through windows, doors, vents or other openings. DANGER: CARBON MONOXIDE, using a log splitter indoors CAN KILL YOU IN MINUTES. CAUTION Fuel and fuel vapors are highly flammable and extremely explosive.
-
Page 12: Operating Instructions
Operating Instructions WARNING Before operating or using the log splitter, review the instructions below and all safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders WARNING ALWAYS use the log splitter for its intended use. ONLY use the log splitter to split wood logs, length wise with the grain. - Page 13 NOTE: Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else outside the work zone while operating the control lever. 7. Always wear safety gear, eye protection, gloves and work boots when operating the log splitter.
- Page 14 12. Make sure hands are clear from the wedge and crush hazard areas. CRUSH WARNING Wedge can cut through skin and break bones. Keep both hands away from wedge and beam slide. Serious accidents can happen when other people are allowed inside the work zone. Keep everyone else out of the work zone while operating control lever.
- Page 15 Operating Instructions - 15 - Version 202301...
- Page 16 - 16 - Version 202301...
-
Page 17: Maintenance And Storage
Maintenance and Storage CAUTION Improper maintenance and storage of the log splitter may void your warranty. MAINTENANCE • Before performing any maintenance, the log splitter must be placed in maintenance mode. Turn off the engine and move the control lever forward and backwards to relieve the hydraulic pressure. -
Page 18: Troubleshooting
Troubleshooting Problem Cylinder rod will not move SOLUTION: A,D,E,H,J Slow cylinder rod speed when extending or SOLUTION: A,B,C,H,I,K,L retracting Wood will not split or splits extremely slowly SOLUTION: A,B,C,F,I,K Engine bogs down during splitting SOLUTION: G,L Engine stalls under low load condition SOLUTION: D,E,L,M Engine starts problem SOLUTION: N... -
Page 19: Specifications
Specifications Ram Force ....................30 Ton Cycle Time ....................16 Sec Wedge Size ................8” Hardened Steel Hydraulic Tank Capacity ................... 12L Max. Log Length ................24” (610mm) Gear Pump ....................2-Stage Hydraulic Oil ..............AW32/AW46 Hydraulic Oil Hydraulic Cylinder ..........4 1/2” x 23”(115mm x 575mm) Max. -
Page 20: Warranty
Warranty Limited Warranty The warranty period for the log splitter is 2 years (Domestic use) and 1 year (commercial use) from the purchase date. The engine has a 3 year warranty. The warranty will not apply to any unit which was not assembled correctly, misused, overloaded or which has been used or operated contrary to our instructions, or which has been repaired or altered by anyone other than an authorized representative. -
Page 21: Illustrated Parts List
Parts Illustration List - 21 - Version 202301... - Page 22 Parts Illustration List Part No. Ref # Description BWMLSE300001 Beam Weldment BWMLSE300002 Wedge BWMLSE300003 Keeper Spacer BWMLSE300004 Screw M12x55 BWMLSE300005 Flat Washer Ø12 BWMLSE300006 Lock Washer Ø12 BWMLSE300007 Hex Thick Nut M12 BWMLSE300008 Hitch Pin BWMLSE300009 Piston Head Joint BWMLSE300010 Hex Nut M8 BWMLSE300011 Hex Bolt M8x20...
- Page 23 Part No. Ref # Description BWMLSE300036 Flat Washer Ø6 BWMLSE300037 Nylon Lock Nut M6 BWMLSE300038 R Pin BWMLSE300039 Nylon Lock Nut M10 BWMLSE300040 Flat Washer Ø10 BWMLSE300041 Hex Bolt M10x50 BWMLSE300042 Square Tube (Left) BWMLSE300043 Table Stand BWMLSE300044 Square Tube (Right) BWMLSE300045 Log Table BWMLSE300046...
- Page 24 Part No. Ref # Description BWMLSE300071 Oil Pipe BWMLSE300072 Clamp BWMLSE300073 Lock Washer Ø6 BWMLSE300074 Filter Mounting Plate BWMLSE300075 Rubber Washer BWMLSE300076 Oil Filter BWMLSE300077 Safety Pin BWMLSE300078 Spring BWMLSE300079 Oil Bolt BWMLSE300080 Oil Tank BWMLSE300081 Oil Plug BWMLSE300082 Hex Bolt M10x30 BWMLSE300083 Rubber 2 BWMLSE300084...
- Page 25 BWMLSE300104 Connector Customer Service: 303 Warrigal Road, Cheltenham, Victoria 3192, Australia Telephone: 13000 454 585 Website: www.BWMachinery.com.au Email: admin@bwmachinery.com.au Spare parts are available from our dealers and our official website - 25 - Version 202301...
