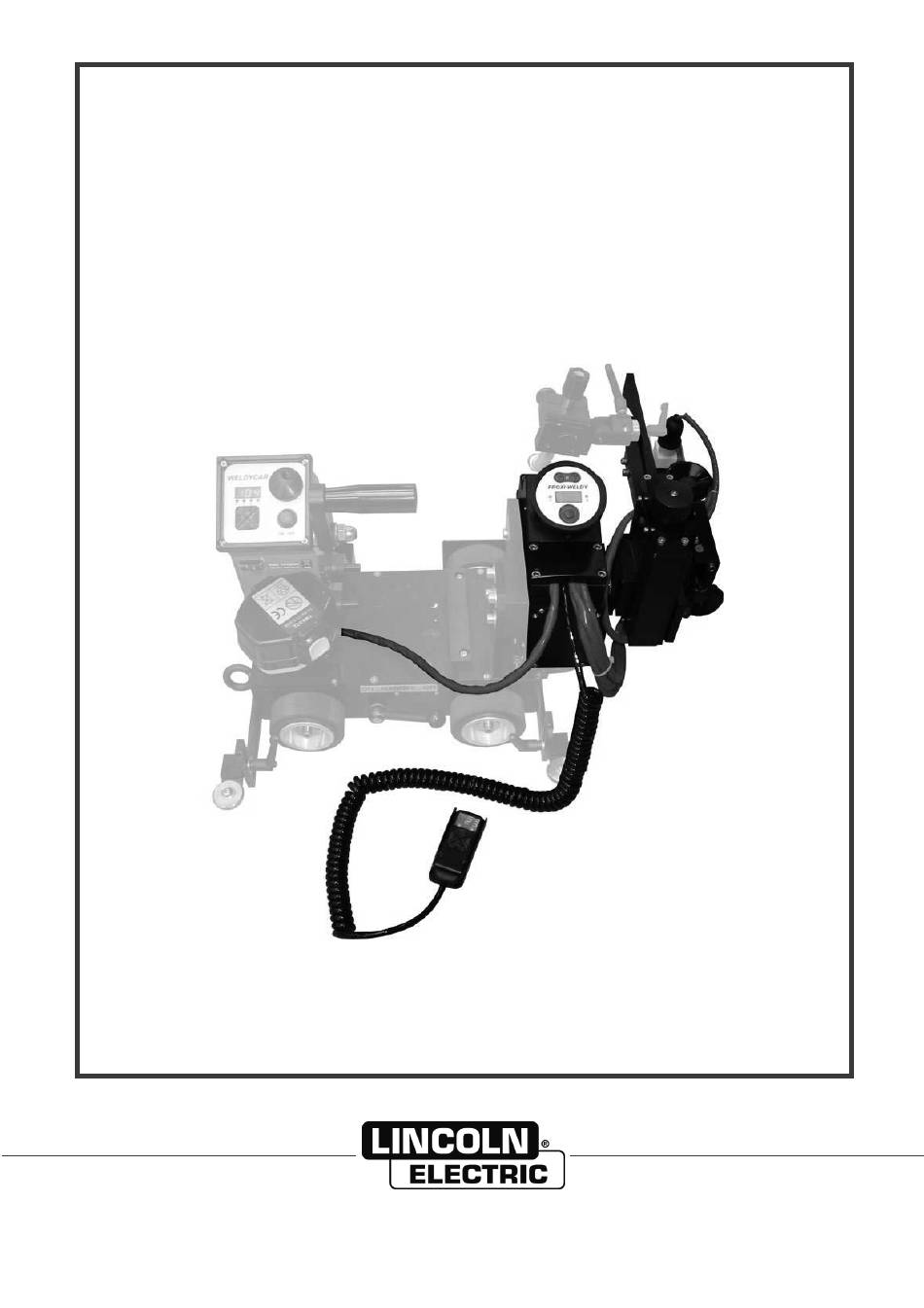

- Page 1 MOTORIZED CROSSED SLIDES FOR WELYCAR PROXI-WELDY SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE 8695 5879 EDITION: Instructions for use REF: REVISION: B DATE: 03-2020 Original instructions...
- Page 2 Thank for the trust you have expressed by purchasing this equipment, which will give you full satisfaction if you follow its instructions for use and maintenance. Its design, component specifications and workmanship comply with applicable European directives. Please refer to the enclosed CE declaration to identify the directives applicable to it.
-
Page 3: Table Of Contents
E - OPERATOR MANUAL....................8 1 - COMMANDE ..................... 8 2 - SETTING PROCEDURE..................10 F - MAINTENANCE ......................12 1 - SERVICING ....................... 12 2 - SPARE PARTS ....................13 3 - WIRING DIAGRAM ..................... 16 PERSONAL NOTES ......................18 PROXI-WELDY... - Page 4 8695 5879 INFORMATIONS DISPLAYS AND PRESSURE GAUGES The measuring devices or displays for voltage, current, speed, pressure, etc., whether analog or digital, should be considered as indicators REVISIONS REVISION B 03/20 DESIGNATION PAGE To change logos PROXI-WELDY...
-
Page 5: A - Identification
8695 5879 / B A - IDENTIFICATION Please enter the number of your machine in the following box. Quote this information in all correspondence. Manufacturing factory code Year manufactured Manufacturing year code Product type Product serial no. PROXI-WELDY... -
Page 6: B - Safety Instructions
Have defective accessories repaired by a specialist or, better still, replace them. Periodically check that electrical connections are properly tightened and do not overheat. Make sure that no spray or water enters into the electrical box of the oscillator. IP235 PROTECTION PROXI-WELDY... -
Page 7: C - Description
On a basic WELDYCAR, the joint tracking is made by manual slides. Now, with this option, it’s possible to track the joint in automatic on steel or aluminium piece, thanks to proximity sensors. The PROXI-WELDY can be used as a simple crossed electrical slide when the proximity sensors are not easy to be adjusted. -
Page 8: Power Supply
C - DESCRIPTION 8695 5879 / B 2 - POWER SUPPLY The PROXI-WELDY is powered by connecting a jack plug onto the WELDYCAR, itself powered by a 14.4 VDC battery. The WELDYCAR carriage and its associated PROXI-WELDY are completely autonomous. The WELDYCAR battery provides continuous operation of 2 hours. -
Page 9: Characteristic
C - DESCRIPTION 8695 5879 / B 4 - CHARACTERISTIC PROXI-WELDY Stroke left/right slide 56 mm Stroke up/down slide 56 mm Autonomy of work with WELDYCAR 2 h in continuous work Protection indice IP 23 Weight 14V by connection to the... -
Page 10: D - Assembly - Installation
2. Remove the manual crossed slides from the WELDYCAR 3. Fix the PROXI-WELDY on the WELDYCAR with the screws F1 4. Fix the torch holder on the PROXI-WELDY with the handle F2 5. Connect the jack plug J1 on the power supply... - Page 11 D - ASSEMBLY - INSTALLATION 8695 5879 / B PROXI-WELDY...
-
Page 12: E - Operator Manual
8695 5879 / B E - OPERATOR MANUAL 1 - COMMANDE PROXI-WELDY... - Page 13 E - OPERATOR MANUAL 8695 5879 / B Display on the PROXI-WELDY Display on remote control Switch on / off button Button to select the mode Manu / Auto on Y axis Button to select the mode Manu / Auto on Z axis...
-
Page 14: Setting Procedure
8695 5879 / B 2 - SETTING PROCEDURE 2.1 Manual mode Push the button B1 to switch on the PROXI-WELDY At the start, the machine is in manual mode The light V2, V3, V4 and V5 are on continuous lighting The V1 and V5 are off In the manual mode, it’s possible to move the slides manually with the remote control :... - Page 15 E - OPERATOR MANUAL 8695 5879 / B PROXI-WELDY E-11...
-
Page 16: F - Maintenance
- adjust the clearance of guiding shims on the slides - adjust the clearance of the geared motor on the large sprocket wheel. - wash and grease the wheels - blow very carefully the electronic card, speed regulator, electric rack. PROXI-WELDY F-12... -
Page 17: Spare Parts
W000XXXXXX Machine interface board W000XXXXXX Flowmeter 9357 XXXX Silk-screen printed front panel For parts order, give the quantity required and put the number of your machine in the box below. TYPE: Number: PROXI-WELDY F-13... - Page 18 F - MAINTENANCE 8695 5879 / B PROXI-WELDY F-14...
- Page 19 Z – electrical slide with harness Manual slides C = 40 mm W000276824 Battery power harness For parts order, give the quantity required and put the number of your machine in the box below. TYPE: Number: PROXI-WELDY F-15...
-
Page 20: Wiring Diagram
F - MAINTENANCE 8695 5879 / B 3 - WIRING DIAGRAM PROXI-WELDY F-16... - Page 21 F - MAINTENANCE 8695 5879 / B PROXI-WELDY F-17...
-
Page 22: Personal Notes
F - MAINTENANCE 8695 5879 / B PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly cedex www.lincolnelectriceurope.com PROXI-WELDY F-18...
