GETTING TO KNOW THE SV10

1
2
3
4
5
6
7
8
12

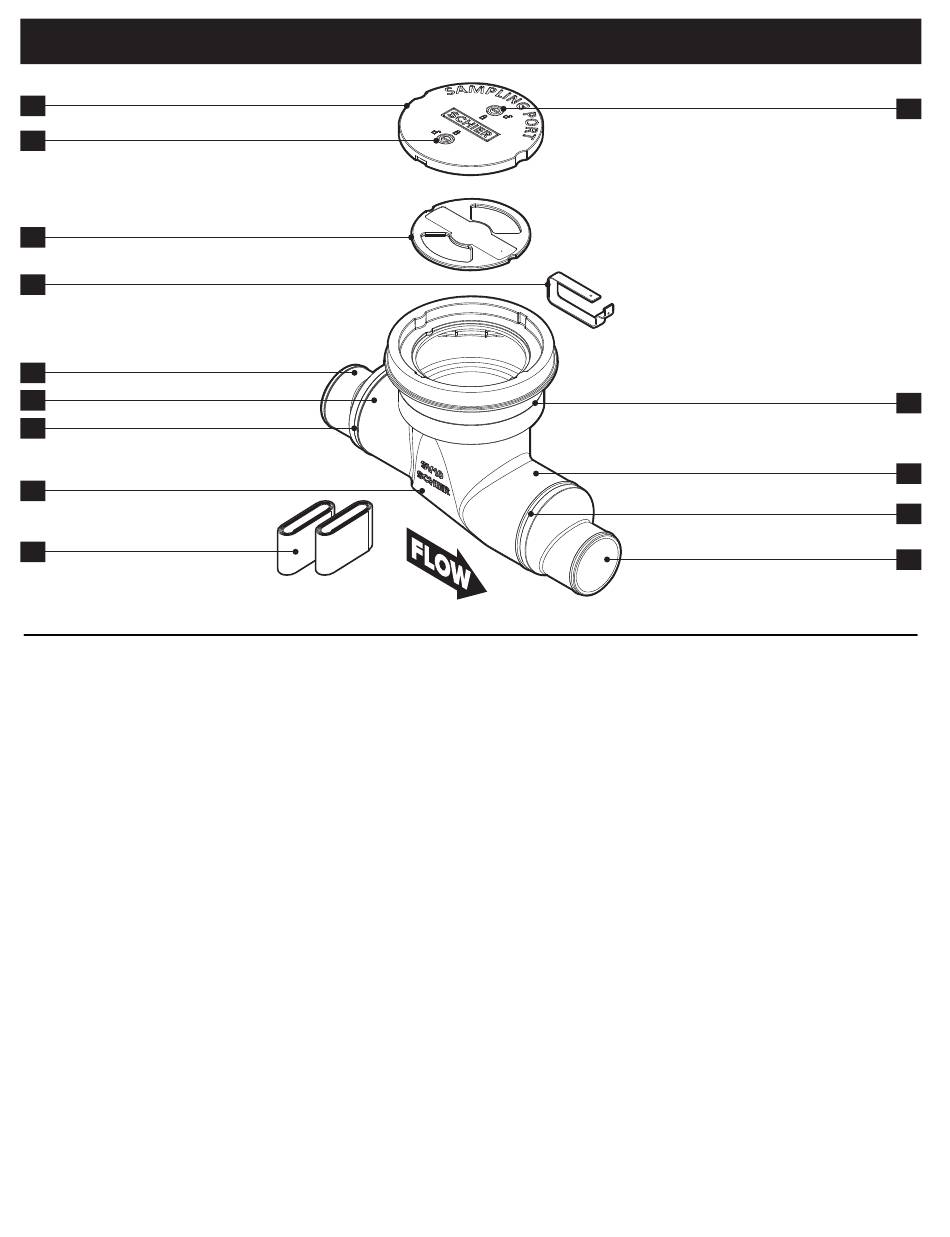

1. Polyethylene Cover with Gasket
2. Quarter-Turn Camlock
Cover Bolts (x2)
3. Safety Star
4. Safety Star Tether
SV10 Installation Guide
5. 4" Plain End Inlet Connection
6. 6" Plain End Inlet Connection
7. 6" Connection Cut Line (x2)
8. Sampling Port Body
9. Riser Cut Line
10. 6" Plain End Outlet Connection
11. 4" Plain End Outlet Connection
12. 2" x 33" Butyl Mastic Tape Roll (x2)
2
9
10
7
11
