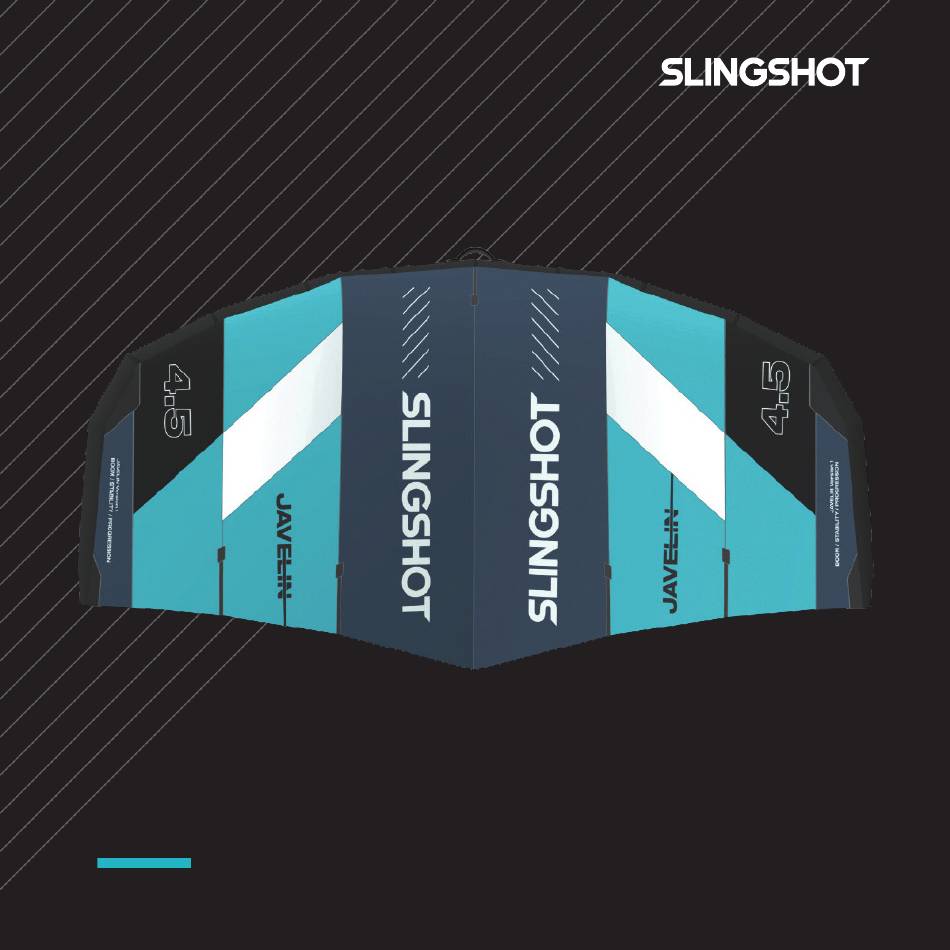

- Page 1 JAVELIN V1 QUICK START GUIDE...
- Page 2 JAVELIN V1 FEATURES STRUT DUMP VALVE LEADING EDGE LUFF HANDLE WRIST LEAST ONE PUMP VALVE FOR COMPLETE USER INFORMATION PLEASE VISIT: www.slingshotsports.com/Kite-Product-Support...
- Page 3 INFLATION AND DUMP VALVE CARBON BOOM BOOM CONNECTORS BOMB PROOF SLINGSHOT CONSTRUCTION SKATE SCUFF TOUGH STRIPS...
- Page 4 JAVELIN V1 FEATURES FOR COMPLETE USER INFORMATION PLEASE VISIT: www.slingshotsports.com/Kite-Product-Support...
- Page 5 PROFILE ENTRY BATTEN WINDOW MATERIAL IN BLUE COLORWAY; CANOPY MATERIAL IN ORANGE AND GREEN COLORWAYS...
- Page 6 INFLATE Attach boom to end caps before inflating. Open neoprene valve cover and unscrew inflation valve cap. Attach pump hose (sold separately) onto inflation valve and pump to indicated PSI. Squeeze one-pump clip to separate leading edge and strut bladders.
- Page 8 ATTACHMENT If your nose attachment does If using a wing that is 4.5m or not have a knot, slide extension larger, you will need to use the through nose loop. Then slide leash with wrist cuff and the one end of rope extension 30cm extension.
- Page 9 Slide leash loop through free end If your nose attachment has a of the rope extension and then knot, create a Larks head knot slide wrist cuff through loop. on one end of the pigtail and slide over the nose attachment.
-
Page 10: Boom Setup
BOOM SETUP SMALL WING SETUP SIZES | 2.5 - 3.0 - 3.5 - 4.0 Use only the main section, no extension needed. - Page 11 LARGER WING SETUP SIZES | 4.5 - 5.0 - 5.5 - 6.5 - 7.5 Use the main section and the 500mm extension.
- Page 12 TENSION WEBBING SETUP A. CENTER WEBBING CONNECTION 1. Loop the center webbing around the boom and connect the g-hook to the strut.
- Page 13 B. REGULAR WIND SETTING In light to regular wind, set the center webbing with a slight tension. C. OVERPOWERED SETTING In overpowered / windy conditions, increasing the tension on the center webbing will flatten the profile and increase the wing’s high wind performance.
- Page 14 CONTROL Use Boom to power the wing and control wingtip roll.
- Page 15 DEFLATE AND STORE Unclip the one-pump valve, open the strut deflate valve and unscrew the inflate valve to deflate. Once deflated, remove boom from end caps by depressing pins. While inflated remember to weigh it down or teather it to keep it from flying away.
- Page 16 The use of this equipment could result in risk of serious bodily injury or death to yourself or those in close proximity to you. Slingshot strongly recommends that beginners take a lesson from a certified school. This product is designed and manufactured for recreational use on water or snow only.
- Page 17 RELEASE OF LIABILITY, CLAIM WAIVER AND ASSUMPTION OF RISK AGREEMENT By assembling this product, you are agreeing to: 1) be bound to the terms set forth below; and 2) require anyone using this product to be bound by such terms. If you are unwilling to be bound by these terms, return this product (before use) for a full refund.
- Page 18 To waive any and all claims that you have or may in the future have against Slingshot Sports LLC resulting from use of this product and any of its components. To release Slingshot Sports LLC from any and...
- Page 20 SLINGSHOT SUPPORT FOR FURTHER INSTRUCTIONS GO TO: WWW.SLINGSHOTSPORTS.COM CONTACT US: INFO@SLINGSHOTSPORTS.COM RIDER SERVICE LINE IN THE US: 877.775.4832 INTERNATIONAL PHONE: 509.427.4950 LOG ON TO: SLINGSHOTSPORTS.COM/REGISTRATION TO REGISTER YOUR PRODUCT. RECEIVE SERVICE GUARANTEES, AND ACCESS TO YOUR OWN PERSONAL RIDER HOTLINE PROFESSIONAL.
